Unleash your 2021+ 2.3L EcoBoost Ford Bronco's full potential with the Mishimoto High-Mount Intercooler Kit! Designed to allow your Bronco to breathe the coldest, densest air possible, this High-Mount intercooler kit is comprised of our High-Mount intercooler and performance intercooler pipe kit. We've relocated the intercooler to the upper grille to allow better airflow at all times, even with winches, light bars, or larger bumpers installed. This location also helps protect the intercooler from obstacles on the trail. Our intercooler utilizes a 3.1 inch-thick bar-and-plate core That's precision TIG Welded to cast aluminum end tanks for superior durability and heat soak resistance. The weak plastic stock piping is replaced with high-flowing, durable aluminum piping and silicone boots with DuraCor technology. The larger volume of our pipes allows your 2.3L EcoBoost to breathe freely and make the most of its turbo, while the all-aluminum construction and DuraCoreboots provide unmatched durability. Durability is always a good thing, but it's even better when it's paired with performance. The High-Mount intercooler boasts a 49 percent greater core volume and 93 percent greater external fin surface area than stock, which results in 21-degree cooler outlet temps over the stock intercooler We also saw exceptional improvement in our trail simulation heat-soak testing where, after 6 back-to-back dyno runs, we still saw outlet temperatures 20-degrees cooler than stock. This intercooler kit is available with a stealth black or sleek silver intercooler and micro-wrinkle black powder coated or polished pipes to match any style. Functionality of adaptive cruis control is retained utilizing a relocation bracket and 360-degrees cameras are unaffected. As with all our products, the Mishimoto 2021+ Ford Bronco 2.3L High-Mount Intercooler kit is backed by our signature Mishimoto Lifetime Warranty and comes with all necessary hardware for easy installation.

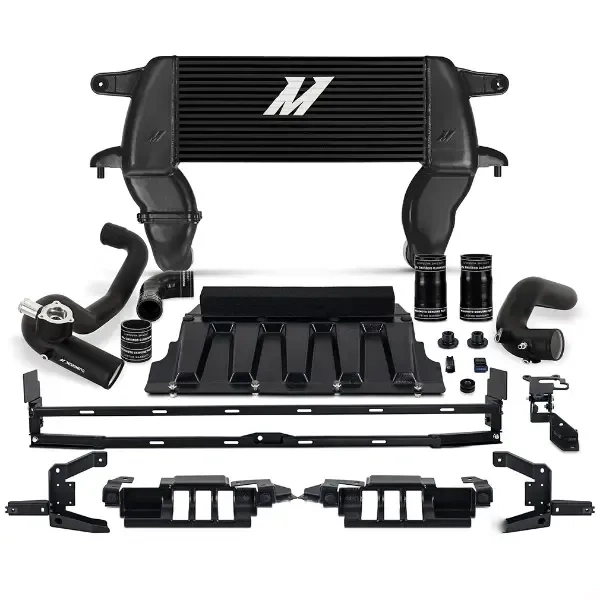

Purchase Includes:

• (1) Mishimoto High Mount Intercooler
• (2) Aluminum Intercooler Pipes
• (1) Adaptive Cruis Control Bracket
• (4) DuraCoreIntercooler Pipe Couplers
• (8) Constant-Tension Worm Gear Clamps
• High-Mount Intecooler Ducting
• Mounting Hardware
• Mishimoto Lifetime Warranty

Features:

• 21-degrees F reduction in outlet temperature over stock intercooler after single dyno run, and 20-degrees F cooler than stock after 6 consecutive dyno runs
• 49 percent increase in core volume
• 93 percent increase in fin surface area
• Additional port on cold-side pipe can be drilled and tapped for methanol injection or additional sensors
• Available with a stealth black or sleek silver intercooler and micro-wrinkle black powder coated or polished pipes to match any style
• Cast aluminum end tanks are precision TIG Welded to the core for increased pressure tolerance and reliability
• Direct fit for 2021+ Ford Bronco 2.3L EcoBoost
• Durable bar-and-plate core for superior durability and performance
• Dyno-proven max gains of 4.5"hp and 10.8 lb-ft torque

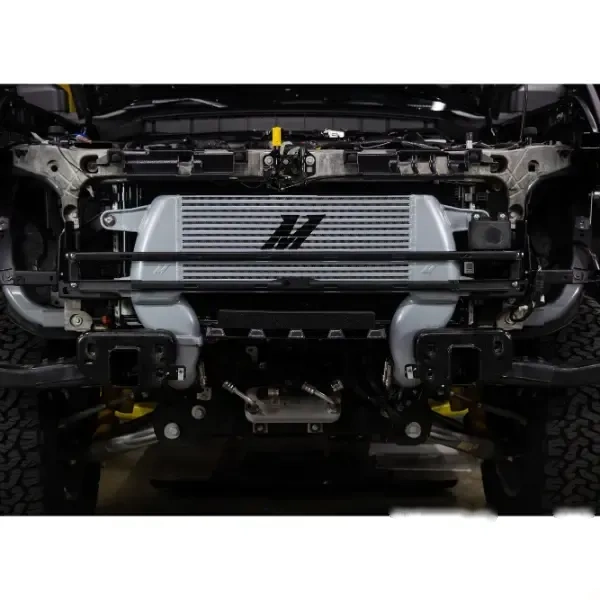

• Front-mount relocation allows for greater clearance, entry and exit angle, and keeps your intercooler protected from obstacles on the trail
• Includes adaptive cruis control relocation mount and does not interfere with 360-degree cameras
• Includes Mishimoto Silicone Boots with DuraCor technology for superior resistance to heat, pressure, fuel, and oil
• Mishimoto Lifetime Warranty
• Optimal core design for maximum cooling efficiency with minimal pressure drop
• Relocates intercooler above stock location, freeing up space for winches, lights, and other essential front-mounted off-road accessories

Specifications:

• Label: Black Core, Black Pipes
• Core Height (in): 8.8
• Core Length (in): 21.26
• Core Thickness (in): 3.15
• Core Type: Bar-And-Plate
• Inlet (in): 3
• Outlet (in): 3
• Overall Height (in): 18.6
• Overall Length (in): 35.82
• Overall Width (in): 6.15
• Vehicle Specifications:
  • Engine Codes: 2.3L EcoBoost

Fitment:

• Ford Bronco 2021-2023
