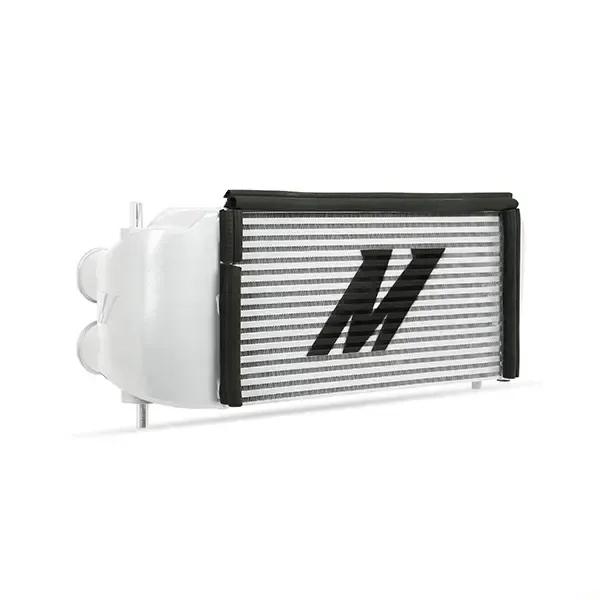

Keep those air intake temps down! With Mishimotos Performance Intercooler for the 2015+ Ford F-150 EcoBoost, your engine will reach a better level of cooling from the help of both an increase in core volume by 77 percent over stock and external fin surface area by 163 percent. We put our core through some grueling tests to see how our design can alleviate the effects of heat soak. With temperature drops averaging 10 degrees under the stock numbers, your F-150 will take in cooler air, providing better performance and increased tuning potential.

Purchase Includes:

• (1) Mishimoto Intercooler w/ Assembled Rubber Trim
• (1) Bypass Valve Bracket
• Mounting Hardware
• Bypass Valve Hardware
• Mishimoto Lifetime Warranty

Features:

• 10 F (5.5 C) reduction in intake air temp
• 163 percent increase in external fin surface area
• 77 percent increase in internal core volume
• Direct fit for the 2015+ Ford F-150 EcoBoost
• Mishimoto Lifetime Warranty

Specifications:

• Label: Sleek Silver
• Core Height (in): 9.4
• Core Length (in): 19.6
• Core Thickness (in): 4.72
• Core Type: Bar-and-Plate
• Inlet (in): 2.5
• Maximum Recommended Boost Pressure (PSI): 50
• Outlet (in): 3
• Overall Height (in): 9.5
• Overall Length (in): 29
• Overall Width (in): 7
• Vehicle Specifications:
  • Engine Codes: 2.7L V6 EcoBoost/3.5L V6 EcoBoost
  • Engine Codes: 2.7L V6 EcoBoost/3.5L V6 EcoBoost

Fitment:

• Ford Expedition King Ranch 2020-2022
• Ford Expedition Limited 2018-2022
• Ford Expedition Max King Ranch 2020-2022
• Ford Expedition Max Limited 2018-2022
• Ford Expedition Max Platinum 2018-2022
• Ford Expedition Max SSV 2018-2022
• Ford Expedition Max XL 2018-2022
• Ford Expedition Max XLT 2018-2022
• Ford Expedition Platinum 2018-2022
• Ford Expedition SSV 2018-2022
• Ford Expedition Timberline 2022
• Ford Expedition XL 2018-2022
• Ford Expedition XLT 2018-2022
• Ford F-150 2015-2022
• Ford F-150 Raptor 2017-2022
• Lincoln Navigator Base 2019-2022
• Lincoln Navigator Black Label 2018-2022
• Lincoln Navigator L Base 2022
• Lincoln Navigator L Black Label 2018-2022
• Lincoln Navigator L Livery 2020-2022
• Lincoln Navigator L Reserve 2018-2022
• Lincoln Navigator L Select 2018-2019
• Lincoln Navigator Premiere 2018
• Lincoln Navigator Reserve 2018-2022
• Lincoln Navigator Select 2018-2019

Note:

• 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).
