Help the air flow through the intercooling system of your L15B7 with the Mishimoto Performance Intercooler Pipe Kit for your 2016-2021 Honda Civic 1.5T or 2017-2020 Civic'si! The stock equipment on your Honda Civic is riddled with bends, and is constructed from degradation-prone materials at a restrictive diameter. All of these are characteristics that will limit the potential of your turbo-Civic. We here at Mishimoto want to remove the restriction on the future potential of the L15B7. We started with the size of the pipes. We added 13mm overall to both sides of the piping system bumping the diameters from 42mm to 55mm, equating in a 30 percent increase in size. We also took the liberty of reducing the angles of the bends in the piping, giving the charged air a more direct flow through the intercooling system improving the flow. The size and direction of the piping wasnt the only change either. Gone is the degradation-prone plastic that makes up the cold-side piping, which has been replaced with a section of mandrel-bent aluminum pipe, giving your intercooler pipe kit an improvement in durability and style. We also took the liberty to replace the rubber in the stock kit with couplers constructed with 5 layers of durable silicone embedded with heat resistant fibers, keeping engine heat out of your intercooled charged air. The result of adding the Mishimoto Intercooler Pipe kit to you 2016-2021 Honda Civic 1.5T or 2017-2020 Civic'si is the addition of flow through your intercooling system, along with a few extra horses under the hood, with the potential for more with a tune. The 2016-2021 Honda Civic 1.5T Mishimoto Performance Intercooler Pipe Kit is available in wrinkle black and Rallye red, and includes the Mishimoto lifetime Warranty.

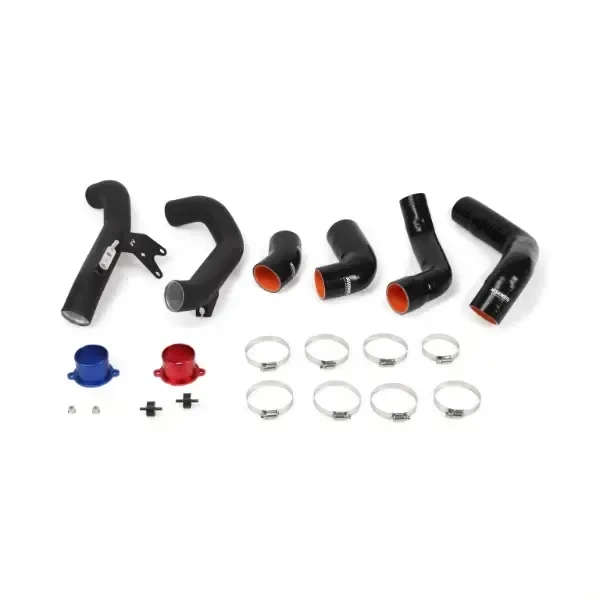

Purchase Includes:

• (2) Aluminum Pipes
• (4) Silicone Couplers
• (2) CNC-Machined Aluminum Adapters
• (7) 3High-Torque Worm Gear Clamps
• (1) 2.5 igh-Torque Worm Gear Clamps
• (1) CARB EO Sticker
• Mounting Hardware
• Mishimoto Lifetime Warranty

Features:

• 30 percent increase in size over stock components
• 4 hp/8 tq gains when combined with the Mishimoto Intercooler
• Direct fit for the 2016+ Honda Civic 1.5T and Si with Mishimoto intercooler
• Mandrel-bent aluminum piping
• Mishimoto Lifetime Warranty

Specifications:

• Label: Wrinkle Black
• Vehicle Specifications:
  • Chassis Codes: FC1/FC3/FK4/FK7
  • Engine Codes: L15B7

Fitment:

• Honda Civic EX-L 2016-2021
• Honda Civic LX-P 2016-2018
• Honda Civic Turbo 2016-2017
• Honda Civic EX-T 2016-2018
• Honda Civic EX 2016-2021
• Honda Civic DX 2016-2020
• Honda Civic LX 2016-2021
• Honda Civic Touring 2016-2021
• Honda Civic Sport 2017-2021
• Honda Civic Si 2017-2020
• Honda Civic Sport Touring 2017-2021
• Honda Civic Turbo Plus 2017-2020
• Honda Civic i-Style 2018-2021
• Honda Civic SE 2018
• Honda Civic Coupe 2018
• Honda Civic Sport Plus 2019-2020

Note:

• 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).
