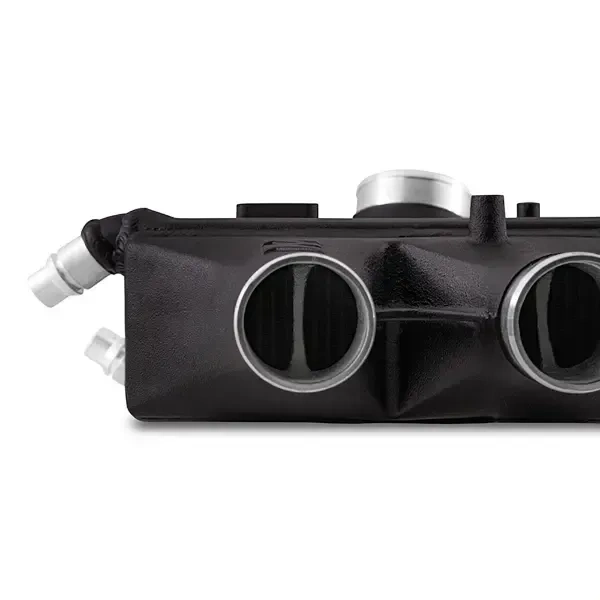

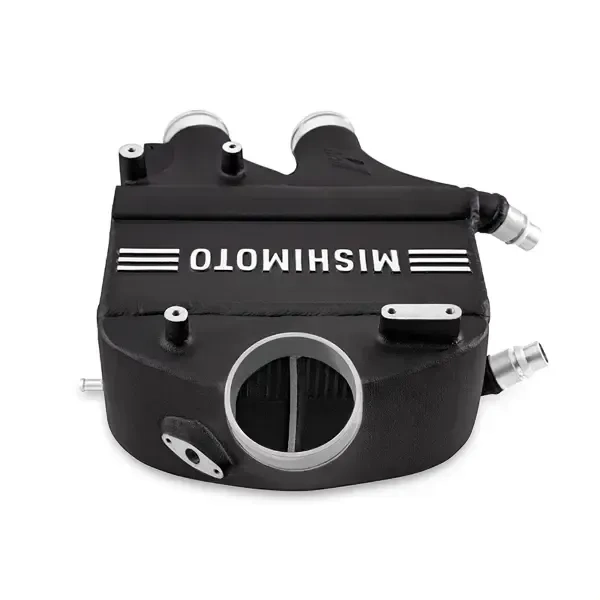

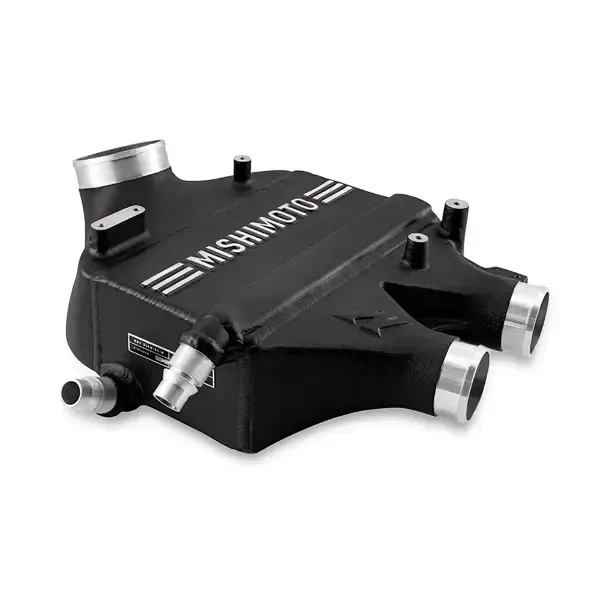

BMW has a knack for maintaining their stake as the benchmark when it comes to performance luxury vehicles, with the F8X generation being no exception. The S55 that powers the 2015-2020 BMW F8X M3, M4 and M2 Competition is dripping wit technology, which includes an air-to-water intercooling system for a means of keeping cool. Where BMWs intercooler design was enough to help bring this generation of mid-sized Ms to their peak, we here at Mishimoto found some weaknesses that we felt obliged to improve on. We started with the end tanks. The Mishimoto Performance Air-to-Water Intercooler features full, cast aluminum end tanks, TIG Welded to our bar-and-plate core for maximum durability as you increase the boost in your Bimmer. Our end tanks also include internal air diverters on both the inlet and outlet to ensure an even flow of charged air through the core. When it comes to the core, bigger is better, and we were able to expand the size of our core in all dimensions, resulting in a 29 percent increase in core volume while abstaining from any modifications when it comes to installation. Our new core also features a unique single-pass internal fin layout for the coolant passage for optimal heat transfer from the charged air to the coolant. With our improvements combined, we saw the Mishimoto 2015-2020 BMW F8X M3 and M4 Performance Intercooler increase flow through the core by 16 percent and recorded a 12 F drop in intake air temperatures when tested with the Mishimoto Performance Heat Exchanger. We also recorded an average increase of 11whp and 8wtq during our testing with peak gains of up to 31whp and 10wtq. With the micro-wrinkle black finis and sleek header plate design, the Mishimoto Performance Air-to-Water Performance intercooler makes for not only the perfect addition to your F8X build, but also looks right at home in the Ms engine bay. Like all of our products, the Mishimoto 2015-2020 BMW F8X M3, M4, and M2 Competition Performance Air-to-Wate

Purchase Includes:

• (1) Performance Intercooler
• (1) CARB EO Sticker
• Mounting Hardware
• Mishimoto Lifetime Warranty

Features:

• 12 F Drop in intake air temperatures with an average 11 whp and 8 wtq gain in power
• 29 percent Increase in core volume and 16 percent increase in flow
• Direct fit for the 2015-2020 BMW F8X M3, M4, and M2 Competition
• Full aluminum TIG-Welded construction
• Mishimoto Lifetime Warranty

Specifications:

• Core Thickness (in): 3.7
• Core Type: Bar-and-Plate
• Inlet (in): 2
• Outlet (in): 3
• Vehicle Specifications:
  • Chassis Codes: F80/F82/F83/F87
  • Engine Codes: S55

Fitment:

• BMW M4 Convertible/Coupe 2015-2020
• BMW M4 GTS Coupe 2016
• BMW M2 Competition 2019-2020
• BMW M4 CS Coupe 2019-2020
• BMW M3 Sedan 2015-2018

Note:

• 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).
