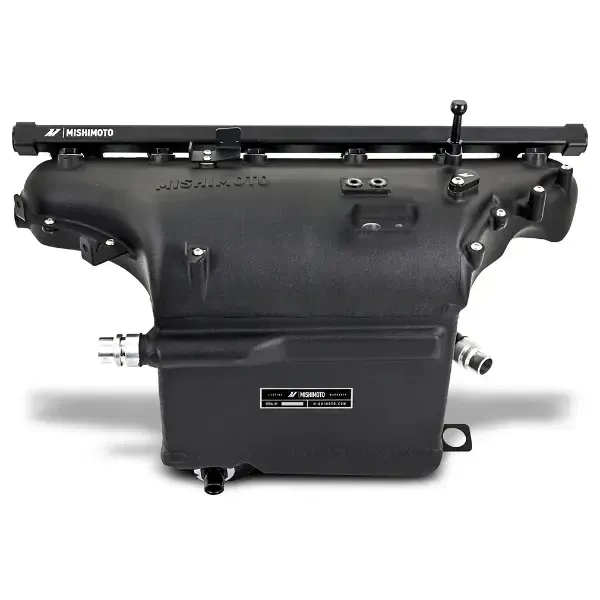

Name: Mishimoto Performance Charge Air Cooler Manifold BMW M2 | M3 | M4 | X3 M | X4 M 2019+
Brand: Mishimoto
SKU: misMMINT-G80-21BK
Price: 4490 USD
Availability: InStock

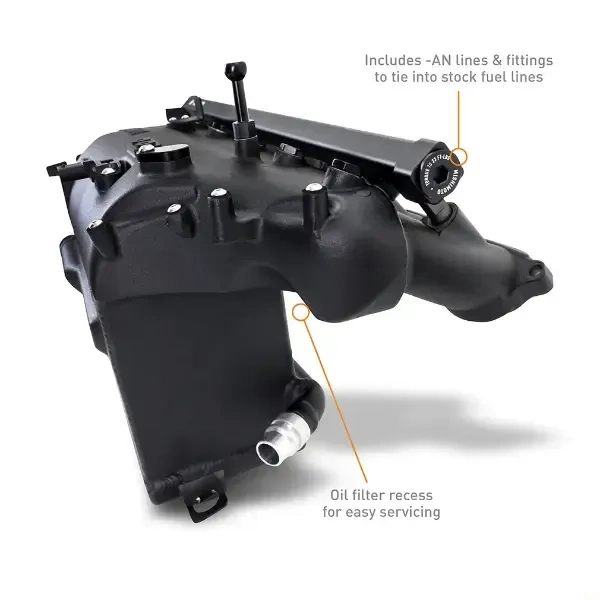

Insane power levels require equally insane amounts of fuel, so We've added provisions for port fuel injection, including a billet fuel rail and anodized aluminum injector blanks to cap the injector ports when not in use. Our precision-machined injecto,like every generation before it, the G80 M3 has the potential to be even more powerful, but with great power requires serious cooling. Luckily, Mishimoto has developed a charge air cooler manifold suited for serious power. The stock G80 M3 charge air cooler is designed as a combination intercooler/intake manifold design, which is efficient, but its let down by the tube-and-fin core crimped onto the thermoplastic plenum. Those crimps are quickly becoming a notorious weak point, with many failing at as little as 3 lbs. of boost over stock. The solution is Mishimotos cast aluminum and TIG-Welded manifold with a robust bar-and-plate core, designed to withstand boost pressures over 60 PSI. Reliability aside, the Mishimoto charge air cooler has further improvements,our core is 33% larger than stock, and the manifold flows an average of 14% better to each cylinder. That, combined with the increased cooling capacity of the bar-and-plate core, results in reduced pressure drop and intake air temps as low as 11 degrees above ambient under heavy load. Our CFD-designed lower plenum also features an internal diverter to ensure the entire core is utilized and each cylinder receives even flow for safe and optimal fueling. The cast and CNC-machined runners feature O-ring grooves to accept factory seals, and We've included a fiber gasket that insulates the runners from engine heat for those seeking every degree of cooling.,The S58 under the hood of the 2021+ G80 M3 has over 45 years of lineage behind it

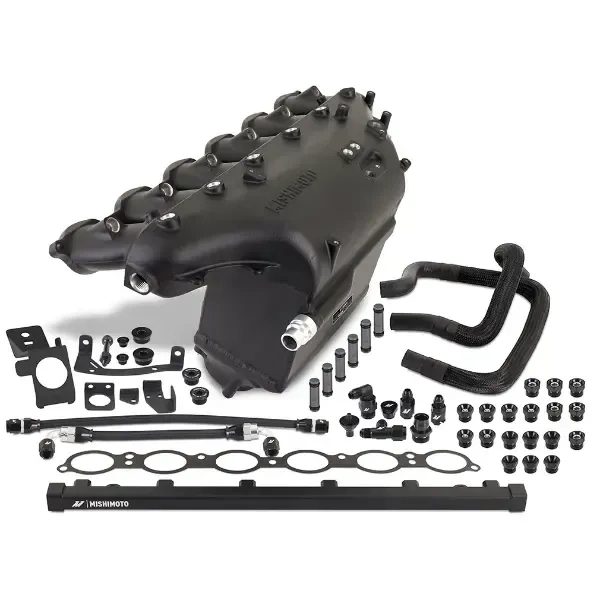

Purchase Includes:

(1) Mishimoto Charge Air Cooler Manifold
(1) Intake Manifold Gasket
(1) Manifold/Intercooler Accessory Bracket Set
(6) -6 ORB Plugs
(6) -6 ORB to 1/8"PT Adapters
(6) -6 ORB to 1/16NPT Adapters
(1) Fuel Rail
(6) Fuel Injector Blanks
(2) -8 ORB Plugs
(1) -10 ORB Plug
(2) 1/8"PT Plugs
(2) EVAP System Hoses
(1) Port Injection Fuel Line Kit
(1) Hardware Kit
Mishimoto Lifetime Warranty

Installation Guide

Specifications:

Core Height (in): 6.3
Core Length (in): 9.8
Core Thickness (in): 4.9
Core Type: Bar-And-Plate
Maximum Recommended Boost Pressure (PSI): 60
Maximum Recommended Horsepower: 1150
Overall Height (in): 13.1
Overall Length (in): 11.5
Overall Width (in): 21
Vehicle Specifications:
- Chassis Codes: G80/G82/G83/G87/F97/F98
- Engine Codes: S58B30

Fitment:
