Many prototypes entered, but only one came out on top. The engineers went through multiple different designs for this 2014-2017 Fiesta ST intercooler weighing the benefIts and downfalls of each. The final design consists of a tube-and-fin style intercooler in order to allow airflow to the radiator and reduce overall weight. The core size is 51 percent larger than stock, and also provides a 25 percent increase in internal core volume. During testing, this 2014-2017 Fiesta ST intercooler dropped intake temperatures by a huge 26 F! This kit is designed to be a direct fit, and fIts with the stock or Mishimoto 2014-2017 Fiesta ST Intercooler Pipes. Combine the two, and youll have a complete high-performance charged air system. This 2014-2017 Fiesta ST intercooler kit includes air diversion plates to channel air through the cooler for maximum efficiency. The all-aluminum, TIG-Welded construction is of the highest quality, and like all Mishimoto 2014-2017 Fiesta ST parts, it is backed by the Mishimoto Lifetime Warranty!

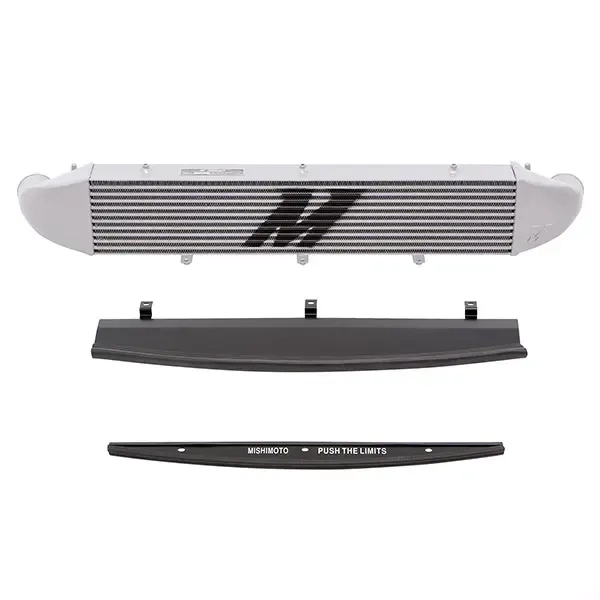

Purchase Includes:

• (1) Mishimoto Intercooler
• (1) Upper Diversion Plate with Mounting Hardware and Rubber Trim Seal
• (1) Lower Diversion Plate with Mounting Hardware and Rubber Trim Seal
• Mishimoto Lifetime Warranty

Features:

• 25 percent increase in internal core volume and 226 percent increase in external fin surface area
• 26 F reduction in AIT
• 51 percent increase in core size
• Direct fit for the 2014-2019 Ford Fiesta ST
• Mishimoto Lifetime Warranty

Specifications:

• Label: Silver
• Core Height (in): 6.35
• Core Length (in): 28.8
• Core Thickness (in): 2.5
• Core Type: Tube-and-Fin
• Inlet (in): 2.5
• Maximum Recommended Boost Pressure (PSI): 40
• Maximum Recommended Horsepower: 325
• Outlet (in): 2.5
• Overall Height (in): 6.36
• Overall Length (in): 40.1
• Overall Width (in): 6.15
• Weight (lbs): 13.4
• Vehicle Specifications:
  • Chassis Codes: B3
  • Engine Codes: 1.6L Ecoboost

Fitment:

• Ford Fiesta ST 2014-2019
