Mishimoto has developed a direct-fit 2015-2016 3.5L F-150 EcoBoost Intercooler and Pipe kit that allows owners to maximize the performance potential of their F-150. Our kit replaces the weak and unattractive plastic piping with free-flowing, durable aluminum piping and silicone boots with DuraCor technology. The 24 percent larger volume of our pipes allows your 2015-2016 3.5L F-150 EcoBoost to breathe free and make the most of the its two turbochargers. DuraCoreboots coupled with constant-tension worm gear clamps provide superior strength and blowout resistance, ensuring boost always makes it to its destination. Combine our piping with the Mishimoto 2015+ F-150 EcoBoost Intercooler to unleash everything the twin-turbo 3.5L EcoBoost engine is capable of. Our intercooler increases core volume by 77 percent over stock and external fin surface area by 163 percent. With cast end tanks and bar-and-plate construction, our intercooler combines strength and power for an all-around upgrade over stock. This kit is available with a black or silver intercooler and wrinkle black or polished pipes. As with all Mishimoto products, this 2015-2016 3.5L F-150 EcoBoost Intercooler and Pipe kit is backed by our Lifetime Warranty.

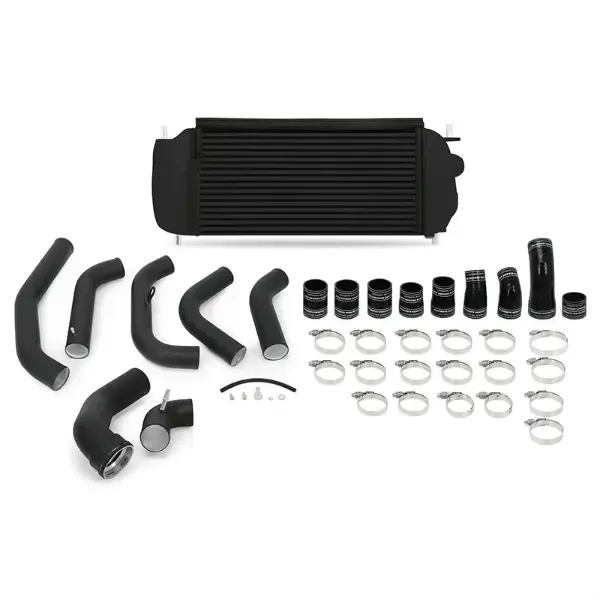

Purchase Includes:

• (1) Mishimoto Intercooler w/ Assembled Rubber Trim
• (1) Bypass Valve Bracket
• (1) Aluminum Cold-Side Intercooler Pipe w/ CNC Quick-Disconnect Flange
• (1) Aluminum Cold-Side Intercooler Pipe w/ CNC IAT'sensor Housing
• (5) Aluminum Hot-Side Intercooler Pipes
• (9) Silicone Boots w/ DuraCor technology
• (18) Constant-Tension Worm Gear Clamps
• Mounting Hardware
• Bypass Valve Hardware
• Mishimoto Lifetime Warranty

Features:

• 163 percent increase in external fin surface area
• 24 percent total internal volume increase over the stock intercooler pipes
• Additional port on cold-side pipe can be drilled and tapped for methanol injection or sensors
• Direct fit for 2015-2016 Ford F-150 3.5L EcoBoost
• Mishimoto Lifetime Warranty

Specifications:

• Label: Black Intercooler Black Pipes
• Core Height (in): 9.4
• Core Length (in): 19.6
• Core Thickness (in): 4.7
• Core Type: Bar-and-Plate
• Inlet (in): 2.5
• Maximum Recommended Boost Pressure (PSI): 50
• Outlet (in): 3
• Overall Height (in): 9.5
• Overall Length (in): 29
• Overall Width (in): 7
• Vehicle Specifications:
  • Chassis Codes: P552
  • Engine Codes: 3.5L V6 EcoBoost

Fitment:

• Ford F-150 XLT 2015-2016
• Ford F-150 Platinum 2015-2016
• Ford F-150 XL 2015-2016
• Ford F-150 Lariat 2015-2016
• Ford F-150 King Ranch 2015-2016
• Ford F-150 Limited 2016
• Ford F-150 SSV 2016

Note:

• 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).
