Mishimoto has developed a direct-fit 2017-2021 3.5L F-150 EcoBoost Intercooler and Pipe kit that allows owners to maximize the performance potential of their F-150 or second-gen Raptor. Our kit replaces the weak and unattractive plastic piping with free-flowing, durable aluminum piping and silicone boots with DuraCoretechnology. The larger volume of our pipes allows your 2017-2021 3.5L EcoBoost to breathe free and make the most of the its two turbochargers. DuraCore boots coupled with constant-tension worm gear clamps provide superior strength and blowout resistance, ensuring boost always makes it to its destination. Combine our piping with the Mishimoto 2015-2021 F-150 EcoBoost Intercooler to unleash everything the twin-turbo 3.5L EcoBoost engine is capable of. Our intercooler increases core volume by 77 percent over stock and external fin surface area by 163 percent. With cast end tanks and bar-and-plate construction, our intercooler combines strength and power for an all-around upgrade over stock. This kit is available with a black or silver intercooler and wrinkle black or polished pipes. As with all Mishimoto products, this 2017-2021 3.5L F-150 EcoBoost Intercooler and Pipe kit is backed by our Lifetime Warranty.

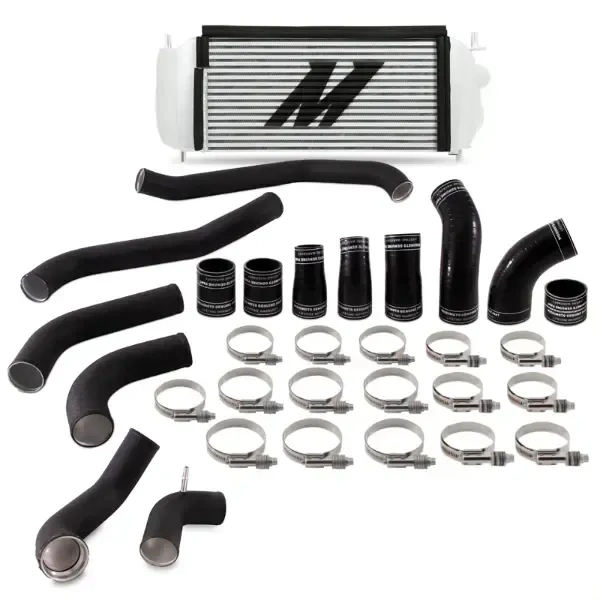

Purchase Includes:

• (1) Mishimoto Intercooler w/ Assembled Rubber Trim
• (1) Bypass Valve Bracket
• (1) Aluminum Cold-Side Intercooler Pipe w/ CNC Quick-Disconnect Flange
• (1) Aluminum Cold-Side Intercooler Pipe w/ CNC IAT'sensor Housing
• (4) Aluminum Hot-Side Intercooler Pipes
• (8) Silicone Boots w/ DuraCor technology
• (16) Constant-Tension Worm Gear Clamps
• Mounting Hardware
• Bypass Valve Hardware
• Mishimoto Lifetime Warranty

Features:

• 10-F (5.5-C) reduction in intake air temp
• Cold-side pipe includes CNC quick-disconnect with pre-installed O-ring and spring clip for quick and easy installation
• Direct fit for 2017-2021 Ford F-150 3.5L EcoBoost
• Increased intercooler pipe volume allows for better flow and power potential
• Mishimoto Lifetime Warranty

Specifications:

• Label: Silver Intercooler Wrinkle Black Pipes
• Core Height (in): 9.4
• Core Length (in): 19.6
• Core Thickness (in): 4.7
• Core Type: Bar-and-Plate
• Inlet (in): 2.5
• Maximum Recommended Boost Pressure (PSI): 50
• Outlet (in): 3
• Overall Height (in): 9.5
• Overall Length (in): 29
• Overall Width (in): 7
• Vehicle Specifications:
  • Engine Codes: 3.5L V6 EcoBoost
  • Engine Codes: 3.5L V6 EcoBoost

Fitment:

• Ford F-150 Lariat 2017-2022
• Ford F-150 Limited 2017-2022
• Ford F-150 XL 2017-2022
• Ford F-150 XLT 2017-2022
• Ford F-150 SSV 2017-2022
• Ford F-150 Raptor 2017-2022
• Ford F-150 Platinum 2017-2022
• Ford F-150 King Ranch 2017-2022
• Ford F-150 Police Responder 2018-2022
• Ford F-150 Tremor 2021-2022

Note:

• 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).
