Its no easy feat to be dubbed as one of the fastest front-wheel-drive productions cars in the world. Honda put all of their engineering prowess behind this achievement, but since the 2017-2021 Honda Civic Type R finds itself in the gray area of track fiend and commuter car, some sacrifices had to be made. One of those sacrifices comes in the form of the underperforming intercooling system that the FK8 is born with. Under intense driving conditions, or just being caught in a sweltering summer day, the stock tube-and-fin intercooler soaks with heat, quelling the performance of your CTR. We here at Mishimoto aim to put that power back into your hot-Honda by keeping it cool with the Mishimoto 2017-2021 Honda Civic Type R Performance Intercooler Kit. We started by increasing the overall size of the core two more than double that of the stock dimensions. The 4.7 inch thick core boasts a 169 percent increase in overall volume, and bumps the external fin surface area by 189 percent for optimal heat rejection properties. Weldidnt stop with the size increase either. To keep the charged air flowing properly through the larger core, we updated to a bar-and-plate core construction. The robust design offers not only improved flow characteristics, but also aides in transferring heat away from the charged air. The plastic end tanks are a thing of the past, and have been replaced with our sleek cast aluminum designs to more effectively direct airflow to and from the piping. With the Mishimoto Performance Intercooler Kit, the Intercooler isnt the only component that received an update, and we took the liberty of overhauling the entire intercooling system. Honda carried some of those sacrifices in the name of mass production over to the intercooler piping as well. The restrictive piping diameters limit the K20C1's potential to turn up the boost with tunes, and the rubber sections are destined to deteriorate down the line. We updated these charged air channels with a 2.5 mandrel-

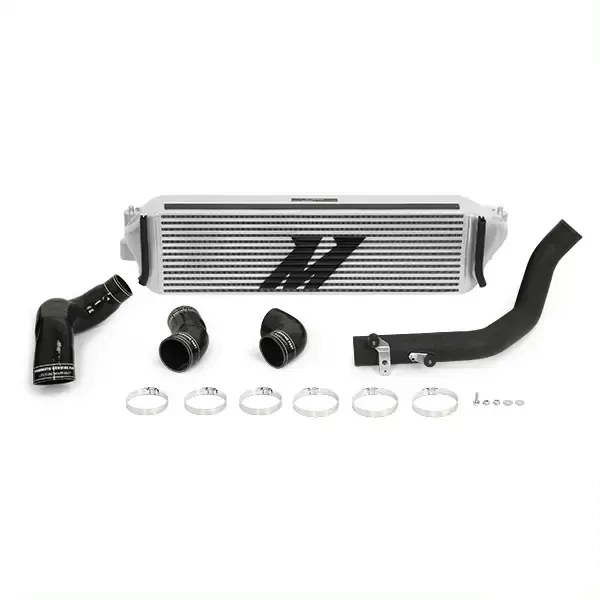

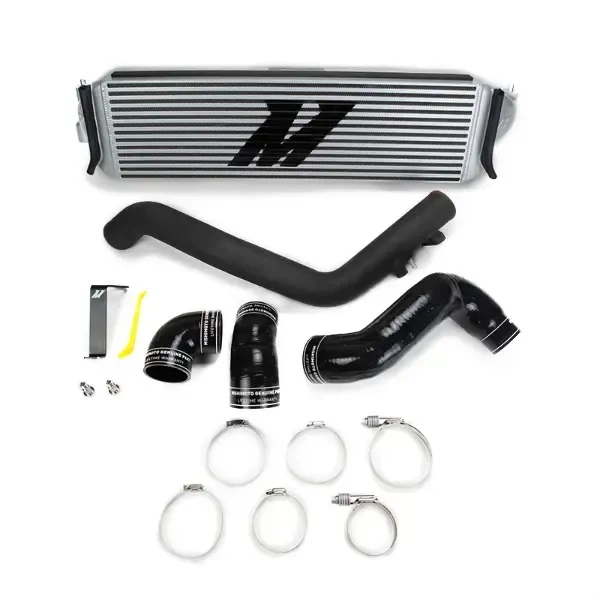

Purchase Includes:

• (1) Intercooler
• (1) Mandrel-Bent Aluminum Cold-Side Pipe
• (1) Silicone Hot-Side Pipe
• (2) Silicone Couplers
• (6) High-Torque Worm Gear Clamps
• (1) CARB EO Sticker
• Mounting Hardware
• Mishimoto Lifetime Warranty

Features:

• Available in silver or black intercooler with the option of wrinkle black or wrinkle red piping
• Direct fit for the 2017-2021 Honda Civic Type R
• Drops outlet air temperatures by 50 F on stock tuning
• Max power gains of up to 10hp and 10 tq
• Mishimoto Lifetime Warranty

Specifications:

• Label: Silver Intercooler Black Pipes
• Core Type: Bar-and-Plate
• Inlet (in): 2.5
• Outlet (in): 2.5
• Weight (lbs): 29
• Vehicle Specifications:
  • Chassis Codes: FK8
  • Engine Codes: K20C1

Fitment:

• Honda Civic Type R 2017-2021
• Honda Civic Type R Limited Edition 2021

Note:

• 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).
