Name: Mishimoto Performance Intercooler Kit w/ Polished Pipes Ford Mustang | Mustang GT | Mustang EcoBoost | Mustang Shelby GT350/R/500 | Mach 1 2015-2023
Brand: Mishimoto
SKU: misMMINT-MUS4-15KPBK
Price: 1228 USD
Availability: InStock

For the first time in over 30 years, the iconic Ford Mustang is available with a turbocharged 4-cylinder engine producing over 300 horsepower! Turbocharged 4-cylinder engines produce extremely hot charge air temperatures very quickly within a few laps on the track or aggressive street driving and stock tube-and-fin intercooler also heat soak very easily. Mishimoto has developed a highly efficient bar-and plate intercooler engineered specifically for the Mustang EcoBoost to keep your air intake temperatures consistently low, run after run. This kit also includes both hot side and cold-side intercooler pipes, allowing you to upgrade the entire intercooler system at one time! This intercooler is a direct-fit unit and features a 58 percent increase in core size while requiring no modification to your Mustang. The Engineers at Mishimoto designed this intercooler to fit with the stock active grille shutters, as well as prevent airflow blockage to the radiator and AC condenser by mounting it in the stock location. This cooler is constructed with cast end tanks that are CFD tested for maximum airflow and includes an in-tank air diverter, on the hot side, to provide optimal flow through the intercooler The Mustang EcoBoost Performance Intercooler reduces intake temperatures by 35 Degree F (19.45 C) with minimal pressure loss, has a 25 percent increase in internal core volume and 165 percent increase in external fin surface area, providing maximum cooling for your Mustang. This intercooler features precision TIG-Welding and is available with a Sleek Silver or Stealth Black finish. This kit features 2.5"in hot side and 2.75" cold-side mandrel-bent aluminum piping for smooth airflow, and four-layer silicone couplers with heat-resistant embedded fibers for improved tolerance against heat and pressure. This kit also includes high-quality stainless steel T-bolt clamps for consistent and reliable holding power. The precision CNC-machined BPV flange allows you to retain the stock BPV.

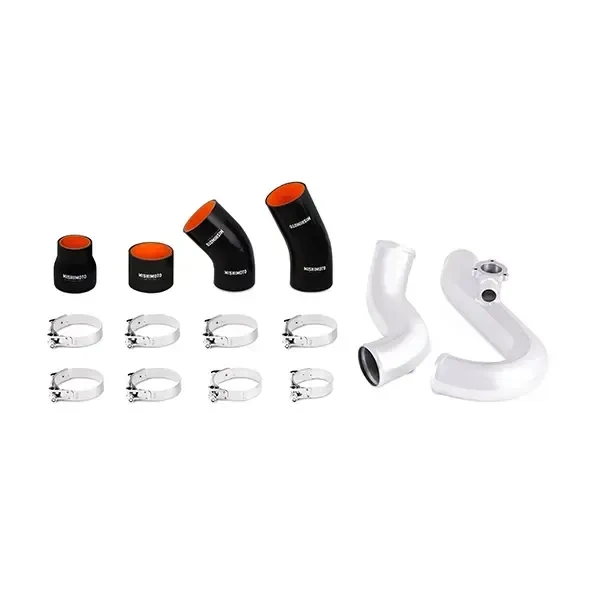

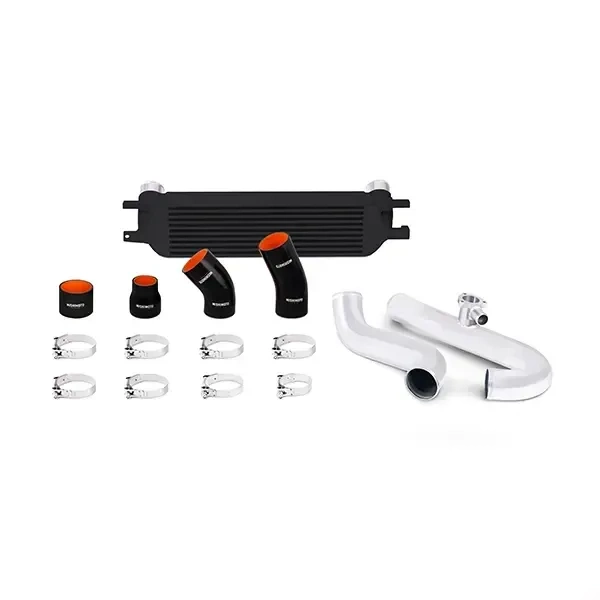

Purchase Includes:

(1) Mishimoto Intercooler
(1) Aluminum Pipe w/ CNC-Machined NPT Bung
(1) Aluminum Pipe w/ CNC-Machined BPV Flange
(4) Silicone Couplers
(1) 2.0T-bolt Clamp
(4) 2.75"-bolt Clamps
(3) 3.0T-bolt Clamps
(1) M6 x 1.0 x 20mm Flange Bolt
(1) M4 x 0.7 x 12mm Button Head Bolt
(1) M4 Lock Washer
(1) MAP Sensor O-Ring
Mishimoto Lifetime Warranty

Features:

2.5 hot-side and 2.75" cold-side mandrel-bent aluminum pipes eliminate restrictive bends
25% increase in internal core volume & 165% increase in external fin surface area
35Degree F (19.45Degree C) reduction in AIT
58% increase in core size
Bar-and-plate construction with all-aluminum TIG-Welded end tanks
CARB EO #: D-759
Cast end tanks and in-tank diverter provide optimal flow through intercooler
CNC-machined BPV flange on hot-side pipe allows for quick install of stock or stock-style BPVs
Direct fit for the 2015-2023 Ford Mustang EcoBoost
Installs in under 2 hours without having to remove front bumper cover
Intercooler available in Stealth Black or Sleek Silver finish
Pipes available with a polished silver or wrinkle black finish
Replaces hot-side and cold-side intercooler pipes and couplers
Retains stock active grille shutters, maintaining ideal aerodynamics when cooling demands are lower
Stock location prevents airflow blockage to radiator and AC condenser
