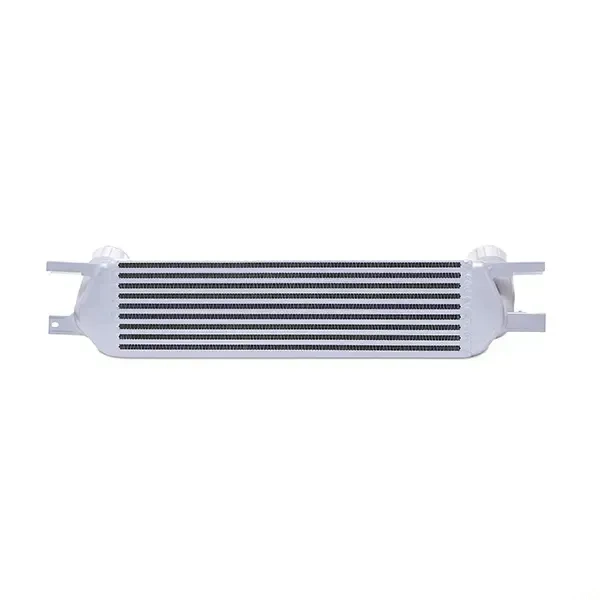

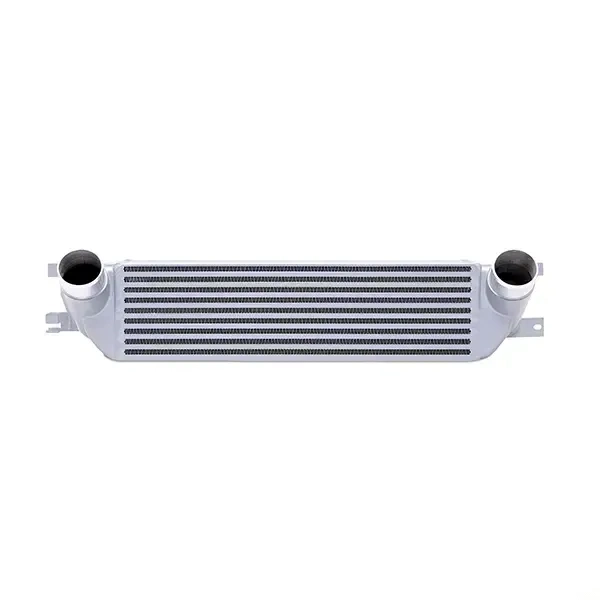

For the first time in over 30 years, the iconic Ford Mustang is available with a turbocharged 4-cylinder engine producing over 300 horsepower! Turbocharged 4-cylinder engines produce extremely hot charge air temperatures very quickly within a few laps on the track or aggressive street driving and stock tube-and-fin intercooler also heat soak very easily. Mishimoto has developed a highly efficient bar-and plate intercooler engineered specifically for the Mustang EcoBoost to keep your air intake temperatures consistently low, run after run. This kit also includes both hot side and cold-side intercooler pipes, allowing you to upgrade the entire intercooler system at one time! This intercooler is a direct-fit unit and features a 58 percent increase in core size while requiring no modification to your Mustang. The Engineers at Mishimoto designed this intercooler to fit with the stock active grille shutters, as well as prevent airflow blockage to the radiator and AC condenser by mounting it in the stock location. This cooler is constructed with cast end tanks that are CFD tested for maximum airflow and includes an in-tank air diverter, on the hot side, to provide optimal flow through the intercooler The Mustang EcoBoost Performance Intercooler reduces intake temperatures by 35 Degree F (19.45 C) with minimal pressure loss, has a 25 percent increase in internal core volume and 165 percent increase in external fin surface area, providing maximum cooling for your Mustang. This intercooler features precision TIG-Welding and is available with a Sleek Silver or Stealth Black finish. This kit features 2.5"in hot side and 2.75" cold-side mandrel-bent aluminum piping for smooth airflow, and four-layer silicone couplers with heat-resistant embedded fibers for improved tolerance against heat and pressure. This kit also includes high-quality stainless steel T-bolt clamps for consistent and reliable holding power. The precision CNC-machined BPV flange allows you to retain the stock BPV.

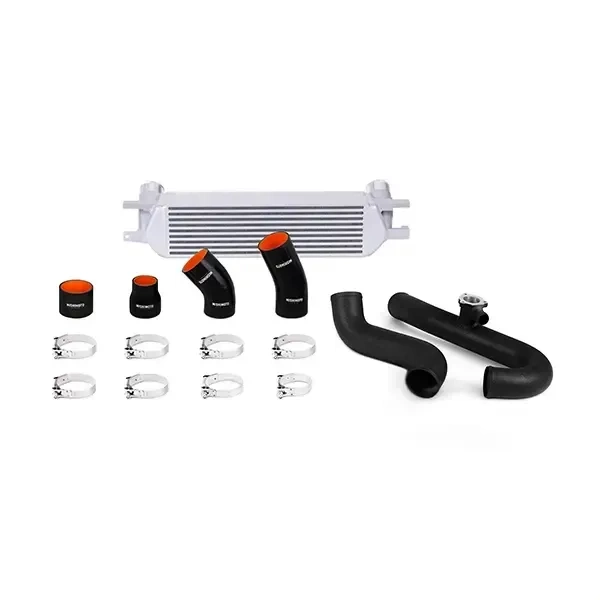

Purchase Includes:

• (1) Mishimoto Intercooler

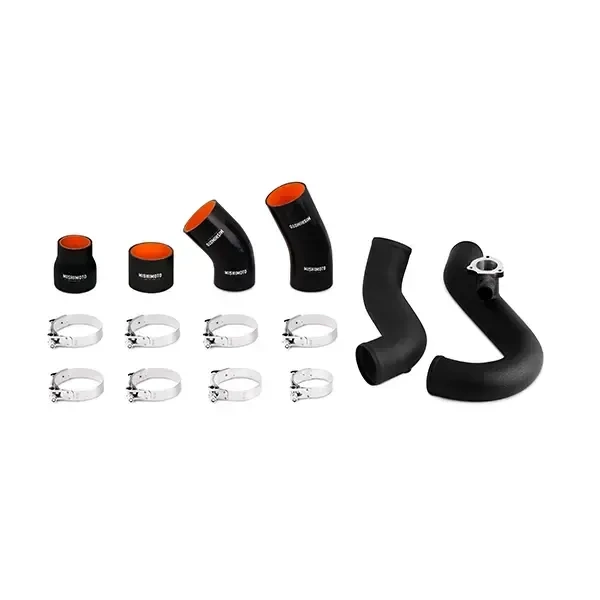

• (1) Aluminum Pipe w/ CNC-Machined NPT Bung
• (1) Aluminum Pipe w/ CNC-Machined BPV Flange
• (4) Silicone Couplers
• (1) 2.0T-bolt Clamp
• (4) 2.75"-bolt Clamps
• (3) 3.0T-bolt Clamps
• (1) M6 x 1.0 x 20mm Flange Bolt
• (1) M4 x 0.7 x 12mm Button Head Bolt
• (1) M4 Lock Washer
• (1) MAP Sensor O-Ring
• Mishimoto Lifetime Warranty

Features:

• 2.5 hot-side and 2.75" cold-side mandrel-bent aluminum pipes eliminate restrictive bends
• 25% increase in internal core volume & 165% increase in external fin surface area
• 35Degree F (19.45Degree C) reduction in AIT
• 58% increase in core size
• Bar-and-plate construction with all-aluminum TIG-Welded end tanks
• CARB EO #: D-759
• Cast end tanks and in-tank diverter provide optimal flow through intercooler
• CNC-machined BPV flange on hot-side pipe allows for quick install of stock or stock-style BPVs
• Direct fit for the 2015-2023 Ford Mustang EcoBoost
• Installs in under 2 hours without having to remove front bumper cover
• Intercooler available in Stealth Black or Sleek Silver finish
• Pipes available with a polished silver or wrinkle black finish
• Replaces hot-side and cold-side intercooler pipes and couplers
• Retains stock active grille shutters, maintaining ideal aerodynamics when cooling demands are lower
• Stock location prevents airflow blockage to radiator and AC condenser

Specifications:

• Label: Silver Intercooler Black Pipes
• Core Height (in): 5.75
• Core Length (in): 21.06
• Core Thickness (in): 2.76
• Core Type: Bar-and-Plate
• Inlet (in): 2.5
• Maximum Recommended Horsepower: 550
• Outlet (in): 2.5
• Overall Height (in): 6.8
• Overall Length (in): 30.3
• Overall Width (in): 8
• Vehicle Specifications:
  • Chassis Codes: S550
  • Engine Codes: 2.3L EcoBoost

Fitment:

• Ford Mustang Base 2015-2016
• Ford Mustang Bullitt 2019-2020
• Ford Mustang EcoBoost 2015-2023
• Ford Mustang EcoBoost Premium 2015-2021
• Ford Mustang GT 2015-2021
• Ford Mustang GT 50 Years Limited Edition 2015
• Ford Mustang GT Premium 2015-2021
• Ford Mustang GT V8 2019-2021
• Ford Mustang Mach 1 2021
• Ford Mustang Shelby GT350 2015-2020
• Ford Mustang Shelby GT350R 2015-2020
• Ford Mustang Shelby GT500 2020-2021
• Ford Mustang V6 2015-2017
• Ford Mustang V8 2017-2018
