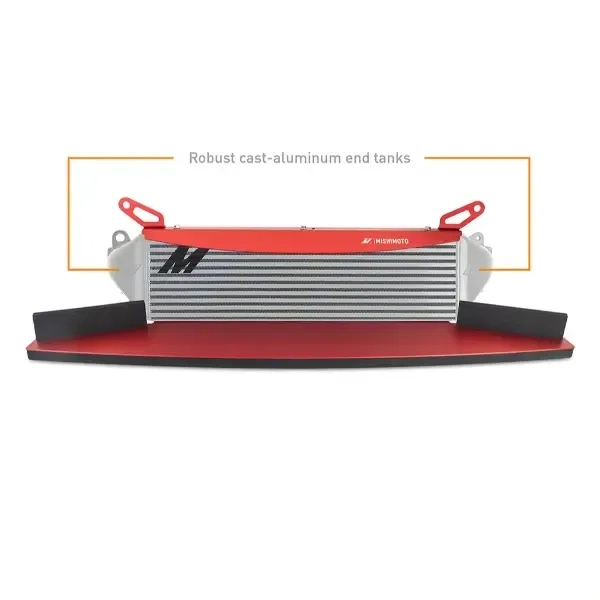

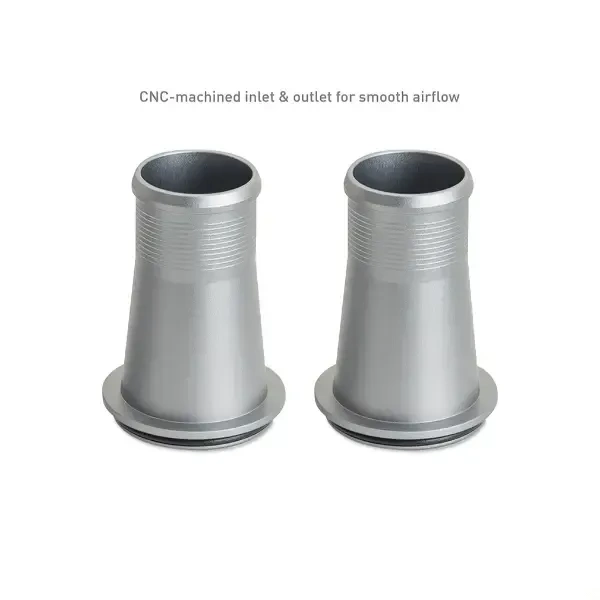

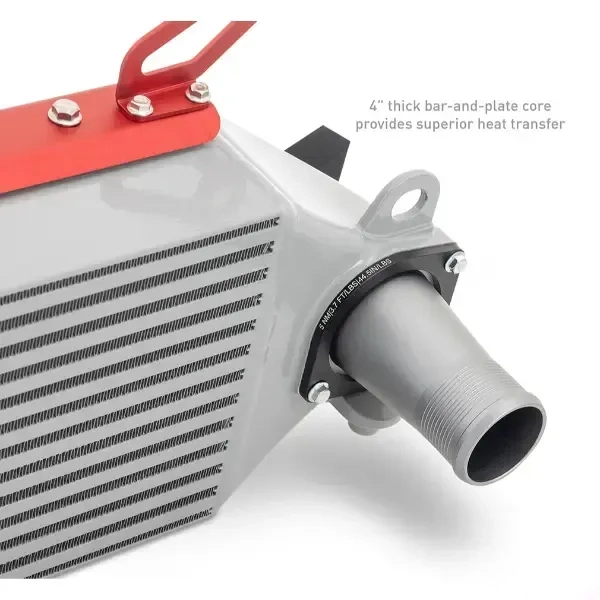

Upgrade your 2023+ Toyota GR Corolla with the Mishimoto Performance Intercooler for a remarkable boost in performance and efficiency. This direct-fit intercooler features a robust 4" thick bar-and-plate core, ensuring superior heat transfer. With a 52% increase in core volume and a 10% reduction in airflow restriction compared to the stock intercooler it significantly enhances your vehicles cooling capabilities. Enjoy cooler air with a reduction of 38.5Degree F in intercooler outlet temperatures, translating to bolt-on power gains of 11.42 horsepower and 14.93 ft-lbs of torque. The intercooler's durable cast-aluminum end tanks and CNC-machined inlet/outlet ensure smooth airflow and lasting durability. Available in a sleek silver or black powder-coated finish, the Mishimoto intercooler not only performs exceptionally but also looks great. Plus, the anodized aluminum ducting maximizes airflow through the external fins, further improving cooling efficiency. With the Mishimoto Lifetime Warranty, you can drive with confidence, knowing your investment is protected. don't settle for stock upgrade to the Mishimoto Performance Intercooler for enhanced power and reliability.

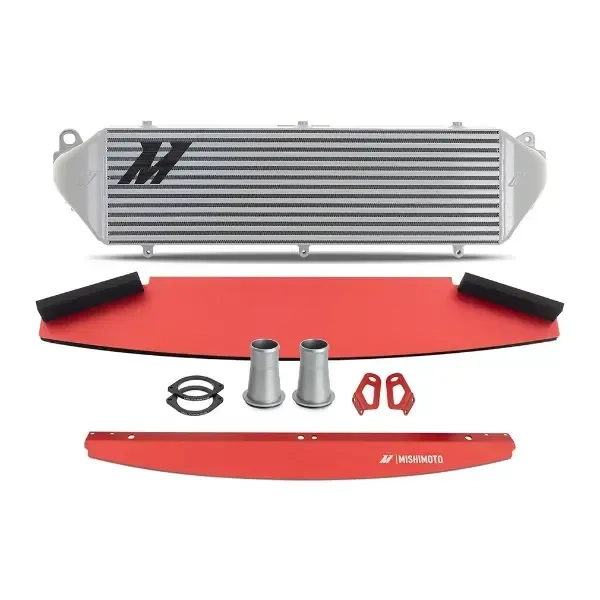

Purchase Includes:

• (1) Intercooler
• (1) Intercooler Adapter Set
• (1) Intercooler Adapter Retainer Set
• (1) Intercooler Ducting Set
• Mishimoto Lifetime Warranty

Installation Guide


Specifications:

• Label: Silver
• Core Height (in): 6.93
• Core Length (in): 24.8
• Core Thickness (in): 3.94
• Core Type: Bar-And-Plate
• Inlet (in): 1.77
• Maximum Recommended Boost Pressure (PSI): 50
• Maximum Recommended Horsepower: 400
• Outlet (in): 1.77
• Overall Height (in): 8.19
• Overall Length (in): 32.85
• Overall Width (in): 7.67
• Weight (lbs): 25
• Vehicle Specifications:
  • Chassis Codes: GZEA14
  • Engine Codes: G16E-GTS

Fitment:

• Toyota GR Corolla Circuit Edition 1.6L L3 2023-2024
• Toyota GR Corolla Core 1.6L L3 2023-2025
• Toyota GR Corolla Morizo Edition 1.6L L3 2023
• Toyota GR Corolla Premium 1.6L L3 2024-2025
• Toyota GR Corolla Premium Plus 1.6L L3 2025
