Looking for a way to reduce high intake temperatures on your stock or modified WRX The solution is the Mishimoto direct-fit top-mount intercooler engineered specifically for the 2008-2014 Subaru WRX. The stock top-mount intercooler is prone to head soak and even failure of the stock plastic endtanks above 18psi. Mishimoto engineers spent months designing and testing this new intercooler to ensure optimum performance on both the street and track. This intercooler utilizes durable cast aluminum end tanks TIG-Welded to a highly efficient, dense bar-and-plate core. The Mishimoto intercooler has a 3.75 thick core and a total volume of 584 in3. Thanks to this volume and a very dense offset fin pitch, we are able to optimize heat transfer and support vehicles from stock up to 400 whp. This intercooler endured rigorous testing, showing a 12Degree F temperature drop as well as a +6 whp and +8 wtq bolt-on power increase for our stock test vehicle. Installation is simple, requires no modification to any parts in the engine bay, and can be completed in under 30 minutes. Included with this intercooler are a new turbo-intercooler O-ring gasket, and Mishimotos silicone throttle-body coupler. These components negate the need to gather supplies for installation, and they ensure years of reliable service. This intercooler is available in a durable powder-coated finis of Stealth Black or Sleek Silver, and it includes the Mishimoto Lifetime Warranty.

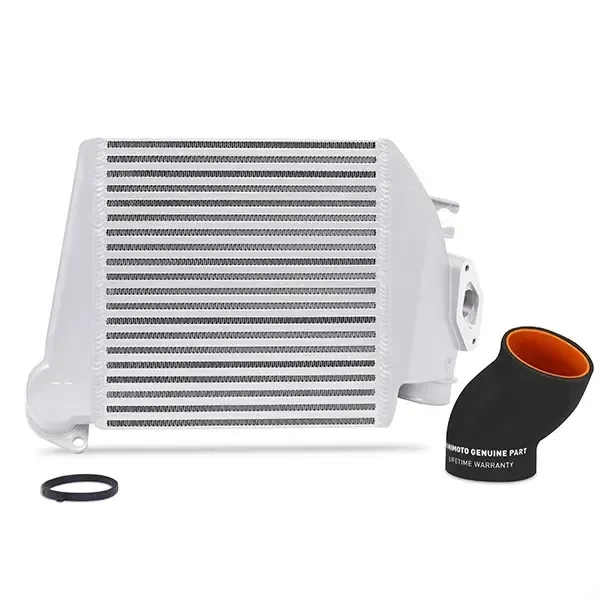

Purchase Includes:

• (1) Top-Mount Intercooler
• (1) Intercooler to Throttle-Body Hose
• (1) Turbo to Intercooler O-Ring Gasket

Specifications:

• Label: Silver Intercooler Black Hoses
• Core Height (in): 11
• Core Length (in): 11
• Core Thickness (in): 3.5
• Core Type: Bar-and-Plate
• Inlet (in): 1.875
• Maximum Recommended Boost Pressure (PSI): 30
• Maximum Recommended Horsepower: 350
• Outlet (in): 2.75
• Overall Height (in): 12.5
• Overall Length (in): 18.5
• Overall Width (in): 5
• Weight (lbs): 21
• Vehicle Specifications:
  • Chassis Codes: GR/GV
  • Engine Codes: EJ255

Fitment:

• Subaru Forester XT 2009
• Subaru Forester XT Limited 2009-2013
• Subaru Forester XT Sports 2010-2012
• Subaru Forester XT Touring 2011-2013
• Subaru Impreza WRX 2008-2014
• Subaru Impreza WRX GT 2010
• Subaru Impreza WRX Limited 2010-2014
• Subaru Impreza WRX Premium 2009-2014
• Subaru Impreza WRX SE 2010
• Subaru Legacy GT 2005-2008
• Subaru Legacy GT Limited 2005-2009
• Subaru Legacy GT spec.B 2006-2009
• Subaru Outback XT 2005-2008
• Subaru Outback XT Limited 2005-2009
• Subaru WRX Base 2012-2014
• Subaru WRX Limited 2013-2014
• Subaru WRX SE 2014
• Subaru WRX STI 2012-2014
