Are you looking for a way to reduce high intake temperatures on your stock or modified 2015-2021 Subaru WRX The solution is the Mishimoto direct-fit 2015-2021 Subaru WRX Race top-mount intercooler kit engineered specifically for your highly modified 2015-2021 Subaru WRX. The stock 2015-2021 Subaru WRX intercooler is prone to heat soak during repeated wide open throttle pulls and during track use. Mishimoto engineers spent months designing the 2015-2021 Subaru WRX parts and testing this top-mount intercooler to ensure optimum performance on your highly modified WRX. This intercooler utilizes durable cast aluminum end tanks TIG-Welded to a highly efficient, dense bar-and-plate core. The Mishimoto 2015-2021 Subaru WRX intercooler has a 4" thick core and a total volume of 625 cubic inches, making it one of the largest top-mount intercooler you can buy. Thanks to this volume and a very dense offset fin pitch, we are able to optimize heat transfer and support your vehicle from stock up to 500 whp.,This WRX intercooler endured rigorous testing, showing a 35Degree F temperature drop as well as a 15 whp and 8 wtq bolt-on power increase for our test vehicle equipped with a Mishimoto 2015-2021 Subaru WRX downpipe and stage 2 Ek tune. Installation is simple, requires no modification to any parts in the engine bay, and can be completed in under 1 hour. Included with this top-mount intercooler is Mishimotos innovative 2015-2021 Subaru WRX charge-pipe, utilizing a one-piece construction without the need for several couplers and clamps. An application-specific air splitter is included with the top-mount intercooler to help divert the maximum amount of air into your Mishimoto 2015-2021 Subaru WRX top-mount intercooler The WRX top-mount intercooler kit also includes a new charge-pipe to intercooler hose, an intercooler to throttle body hose, and a new bypass valve hoses. These 2015-2021 Subaru WRX parts negate the need to gather supplies for installation, and they ensure years of reliable service.

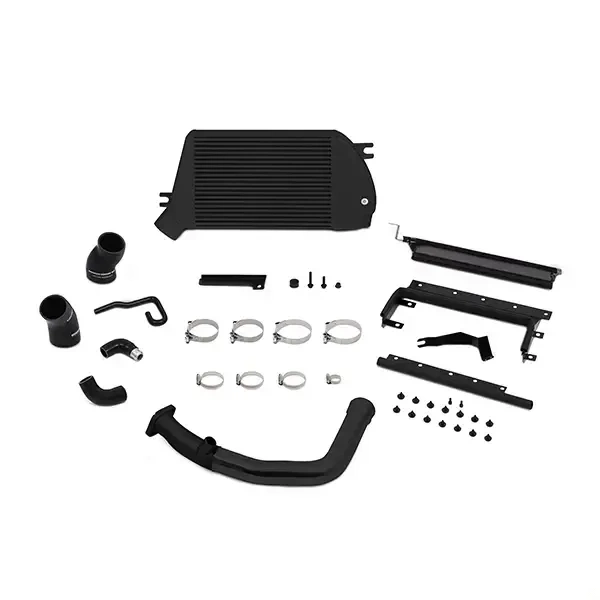

Purchase Includes:

• (1) Bar-and-Plate Intercooler
• (1) Optional Charge-Pipe
• (1) Intercooler Mounting Bracket
• (1) Air Diverter with Attached Rubber Gaskets
• (1) Charge-Pipe to Intercooler Hose
• (1) Intercooler to Throttle Body Hose
• (3) Bypass Valve Hoses
• (2) 3T-bolt Clamp
• (2) 3.5T-bolt Clamp
• (4) Worm Gear Clamps
• Mounting Hardware
• Mishimoto Lifetime Warranty

Features:

• 100% aluminum construction with durable cast end tanks TIG-Welded to a highly efficient bar-and-plate core
• Comes with all necessary hardware, clamps, and brackets for an easy installation
• Cooler available in durable powder-coated Sleek Silver or Stealth Black finish
• Direct fit for the 2015-2021 Subaru WRX
• Includes larger air duct designed to provide optimal airflow to the Mishimoto intercooler core
• Includes new BPV hoses, hot side coupler, and silicone throttle body hose
• Includes the Mishimoto intercooler charge-pipe for maximum airflow and power capability
• Intercooler core designed for maximum cooling efficiency and minimal pressure drop
• Mishimoto Lifetime Warranty
• Pre-marked area for NPT sensor
• Proven +15 whp and +8 wtq bolt-on power increase on a stage 2 tune
• Provides 35Degree F temperature drop compared to stock intercooler on a stage 2 tune
• TIG-Welded to a highly efficient bar-and-plate core

Specifications:

• Label: Black Intercooler Black Pipe
• Core Thickness (in): 4
• Core Type: Bar-and-Plate
• Inlet (in): 2.5
• Maximum Recommended Boost Pressure (PSI): 35
• Maximum Recommended Horsepower: 450
• Outlet (in): 3
• Overall Height (in): 10
• Overall Length (in): 24
• Overall Width (in): 5
• Weight (lbs): 24.5"
• Vehicle Specifications:
  • Chassis Codes: VA
  • Engine Codes: FA20DIT

Fitment:

• Subaru Forester 2.0XT Premium 2014-2018
• Subaru Forester 2.0XT Touring 2014-2018
• Subaru Forester 2.0XT Limited 2014-2018
• Subaru WRX Premium 2015-2021
• Subaru WRX Limited 2015-2021
• Subaru WRX STI 2015-2016
• Subaru WRX Base 2015-2021
• Subaru WRX Sport 2017-2021
• Subaru WRX Sport-tech 2017-2021
• Subaru WRX CVT 2018-2021
• Subaru WRX 6 Man 2018-2021
• Subaru WRX Raui Edition 2019
• Subaru WRX Sport-tech RS 2019-2020
• Subaru WRX EyeSight 2021

Note:

• 22 in-lbs (2.5 M) recommended for all worm gear clamps. These clamps have an operating range of 18-27 in-lbs (2-3NM). Do not exceed the maximum torque rating of 27 in-lbs (3NM).
