The Subaru WRX is a car that begs to be driven at ten-tenths, and as enthusiasts, were happy to oblige. At the same time, we know the WRX is capable of much more with a few well-designed upgrades. One upgrade thats sure to bring your 2022+ WRX to the next level is the Mishimoto performance top-mount intercooler This top mount intercooler lets your FA24 breathe all the cool boost it could ever want. The crowning jewel of this kit is our massively upgraded top-mount intercooler and shroud. We've completely revamped the plastic end tank intercooler and replaced it with cast-aluminum end tanks and a high-flow core thats 88 percent larger than stock. The larger core volume allows our intercooler to flow over 40 percent better than stock, taking the strain off your turbo and allowing it to shove more cold air into your engine. We've also added 76 percent more fin surface area to the core, allowing it to transfer heat more effectively and keep outlet temps within 10 degrees of ambient. All those improvements would be for not, though, if Weldidnt have a way to get cool outside air over the intercooler To do that, we scaled the intercooler shroud up to expose the entire core to fresh air from the WRXs signature hood scoop. A pre-drilled, tapped, and plugged 1/8"PT port allow you to easily add temp or boost pressure sensors. This kit includes everything needed for installation, including new shroud hardware. Its available with in black or silver to match any color scheme and, with our Mishimoto Lifetime Warranty, you can drive your WRX at ten-tenths knowing Mishimoto has its and your back.

Purchase Includes:

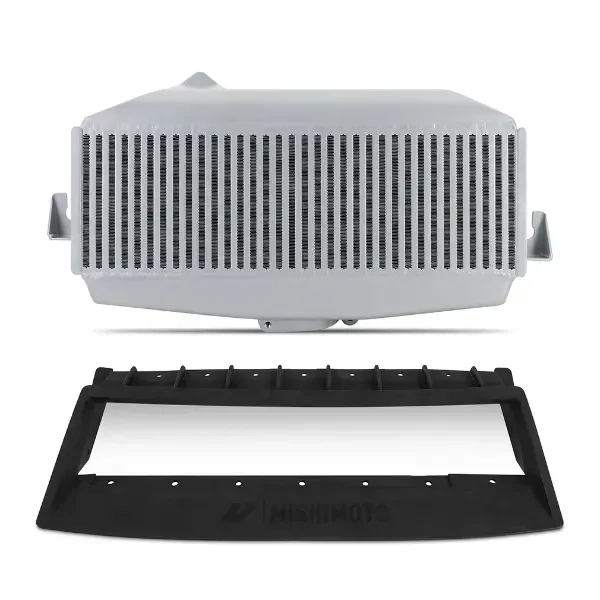

• (1) Mishimoto Performance Intercooler
• (1) Mishimoto Intercooler Shroud
• (36) Shroud Plastic Rivets
• (11) Shroud Mount Panel Clips
• Mishimoto Lifetime Warranty

Specifications:

• Label: Silver
• Core Height (in): 7
• Core Length (in): 20.5
• Core Thickness (in): 4
• Core Type: Bar-And-Plate
• Maximum Recommended Boost Pressure (PSI): 100
• Maximum Recommended Horsepower: 600
• Overall Height (in): 12.96
• Overall Length (in): 24.5"
• Overall Width (in): 4.38
• Vehicle Specifications:
  • Chassis Codes: VB
  • Engine Codes: FA24DIT

Fitment:

• Subaru WRX Sport-tech H4 2.4L 2022-2024
• Subaru WRX Premium H4 2.4L 2022-2024
• Subaru WRX Base H4 2.4L 2022-2024
• Subaru WRX Limited H4 2.4L 2022-2024
• Subaru WRX Sport H4 2.4L 2022-2024
• Subaru WRX GT H4 2.4L 2022-2024

Note:

• Upon removal of factory intercooler inspect the OEM inlet gasket and replace with Subaru part number 21896AA150 if any areas appear damaged or warped.
