Power Up Your Lighting Game

The Morimoto BigBanger Bar is here to redefine what you expect from lighting equipment. This isn’t just any harness; it’s designed to seamlessly control a series of BigBanger pods along with their dual intensity backlight. Say goodbye to complexity and hello to simplicity!

OEM+ Quality You Can Trust

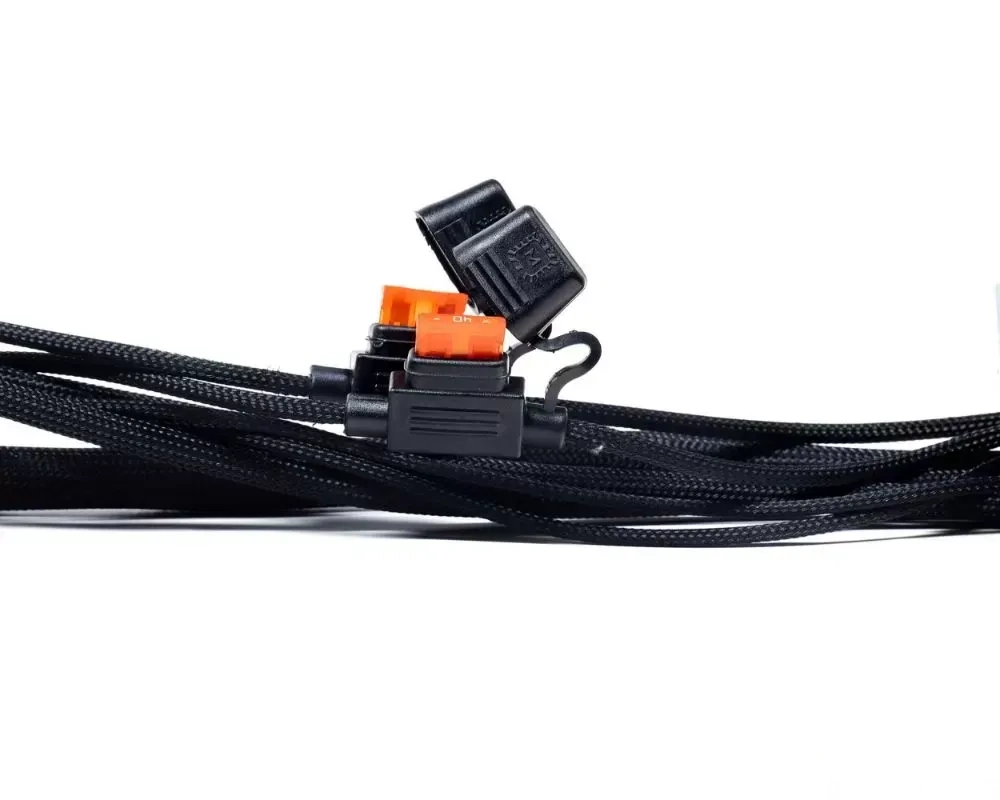

No detail was overlooked in crafting this harness. Each component is thoughtfully designed, featuring a triple-sealed proprietary 4-pin relay complete with a hanger. You’ll also find a specially made over-molded inline fuse holder that houses a 20A mini fuse, DT06-4S female outputs with dual seals, and stainless steel power and ground terminals. Plus, it comes with a unique M-Spec push button switch that has an amber-LED backlight for easy visibility.

Built to Last

Wiring size matters, and we’ve got it right! All relays are rated for flicker-free, reliable power delivery. Each strand of the 16 AWG copper wiring is shielded with black mesh insulation, and every connector is over-molded, sealed, or protected with heavy-duty heat shrink. Trust us, your factory wire harness will give out long before this one does!

Plug n Play Convenience

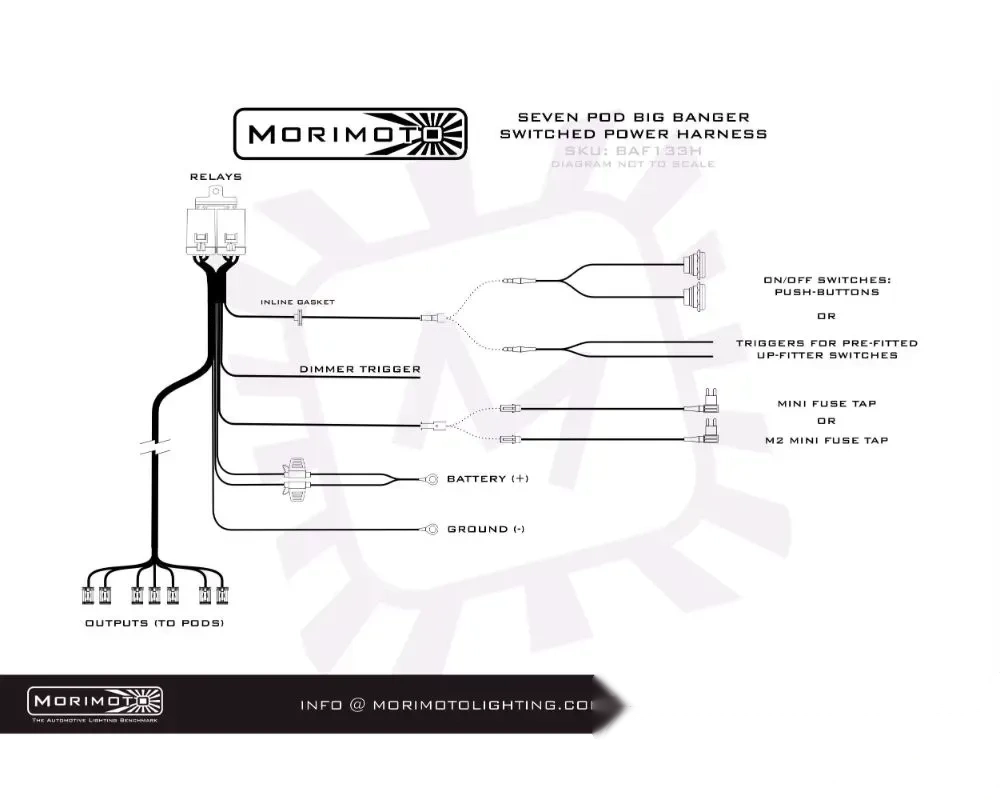

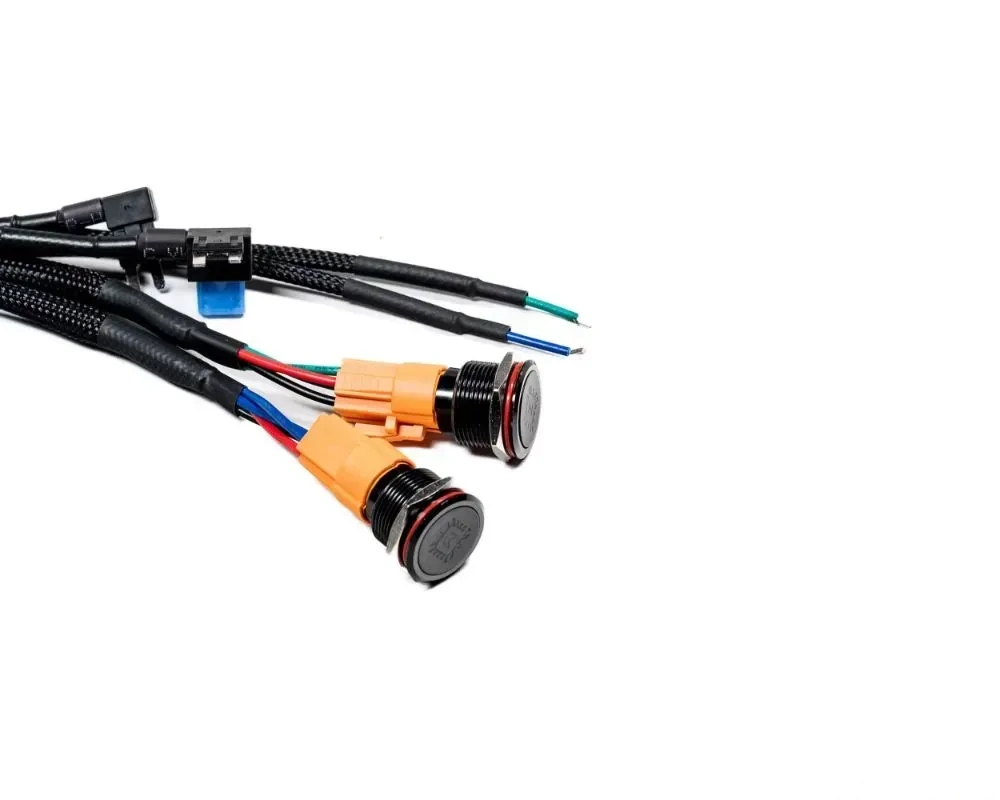

We’ve made installation a breeze! The connections on this harness are laid out logically, allowing you to power up to seven BigBangers linked together with the BangerBar links. The in-cabin push button switch features an in-line barrel connector, making it easy to install without having to force the switch mechanism through the firewall. Plus, there’s an input line that’s just perfect for upfitter switches!

DRL Drive Functionality

This harness is designed to power the BigBanger backlight using an ignition-switched power source from your fuse box. It includes both mini and micro fuse taps, ensuring compatibility with any make or model. This setup allows the backlight to shine at full intensity. And when it’s time to dim the backlight for evening drives, simply tap into your parking light or low beam circuit with the separate line provided.

Compatibility Matters

The Morimoto BigBanger harness is the ideal match for Morimoto BigBanger LED pods when linked together as a light bar. While it’s designed to deliver ample power and control the dual intensity backlight, it may also work with other 4-pin LED pods on the market, though it’s not universally designed for them.

What’s Included

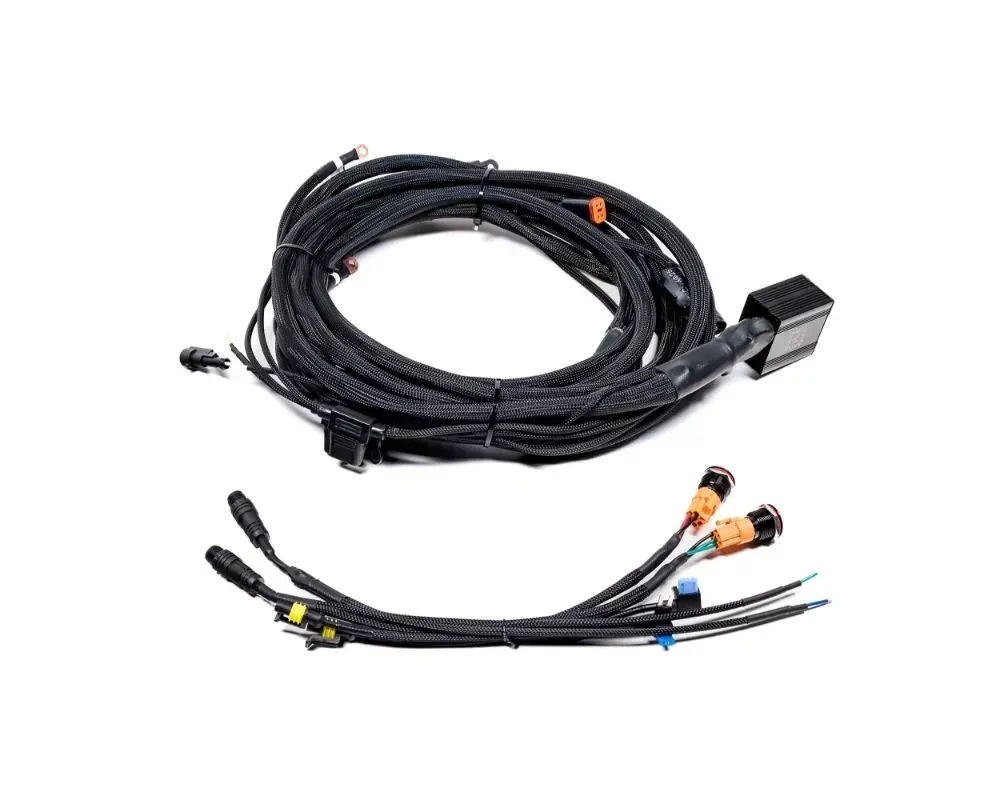

• 1x Morimoto BigBanger 7-Pod Power Harness

Specifications

• Relay: Triple Sealed 40A M-Spec
• Switch: Normally off M-Spec with Amber backlight
• Outputs: DT06-4 Pin (7x)
• Main Input: 12V+/- Battery Terminals
• Backlight Input: Mini or Micro fuse tap
• Wiring: Insulated 16 AWG Copper

Fitment Notes

• LED Pods: Morimoto BigBanger HXB and NCS
• BangerBar System: Yes
• Pod Quantity: Minimum (3) Maximum (7)
