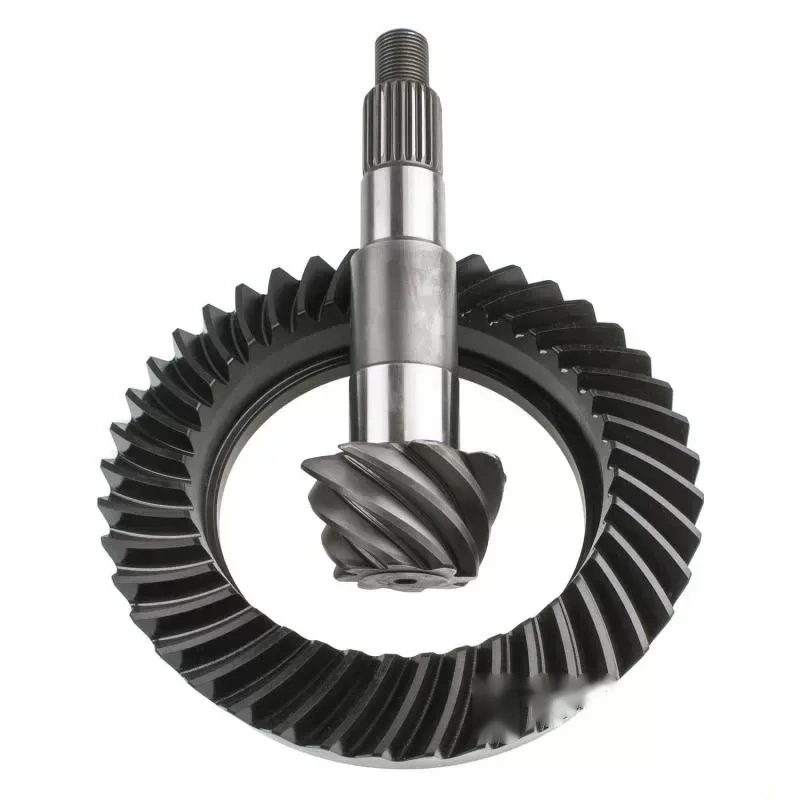

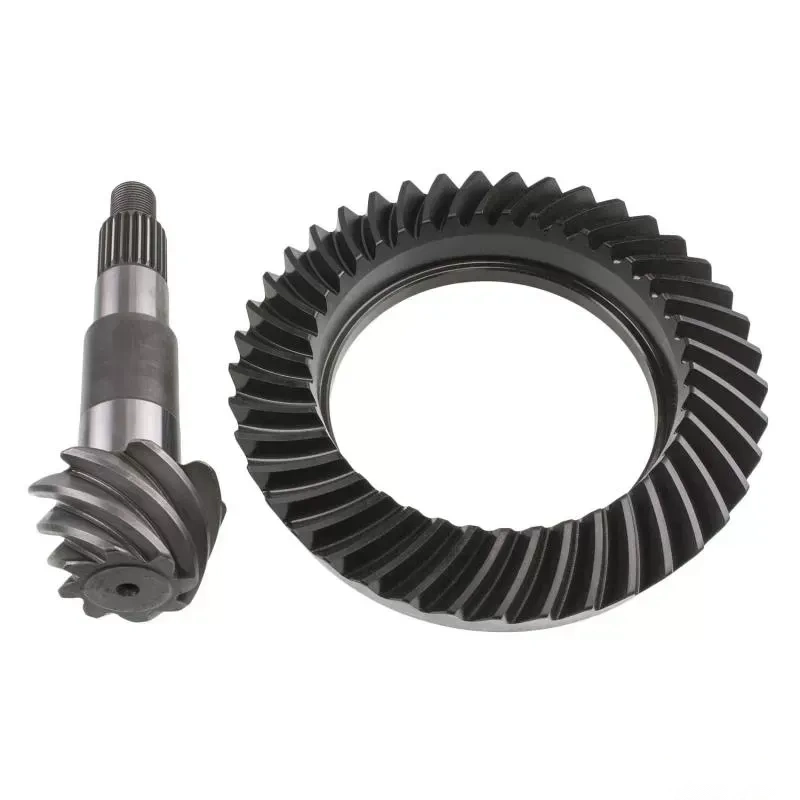

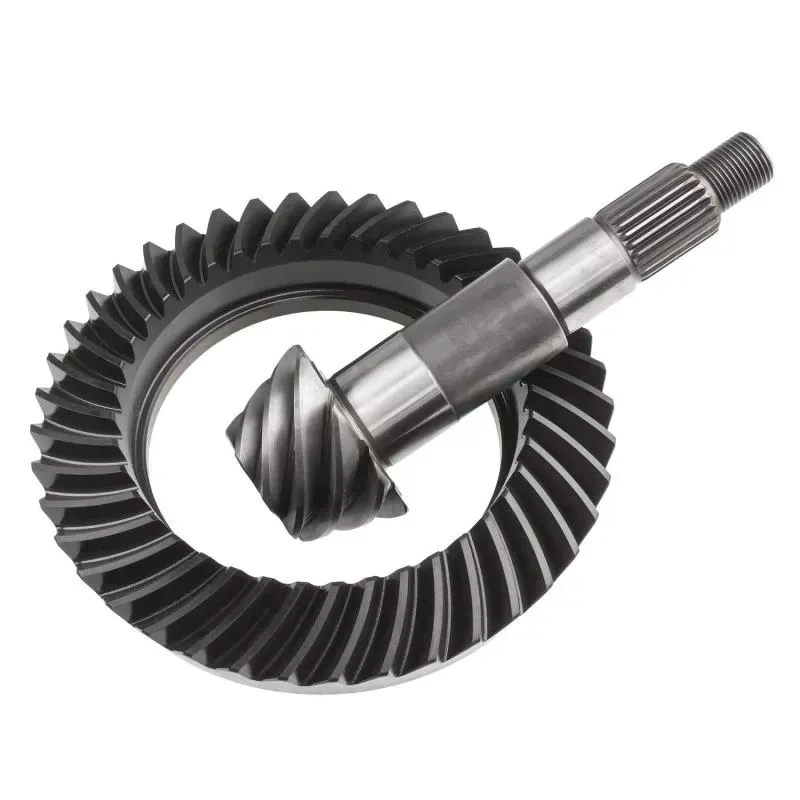

The Motive Gear D44-513JK Differential Ring and Pinion set is engineered for those who demand robust performance from their Jeep Wrangler, specifically models from 2007 to 2018. Crafted from high-quality 8620 steel, this ring and pinion set not only enhances durability but also ensures reliability under extreme conditions, whether on the trail or the street.

Specifications

• Ring Gear Diameter: 8.89 inches
• Ring Gear Tooth Quantity: 41
• Pinion Gear Tooth Quantity: 8
• Pinion Shaft Diameter: 1.626 inches
• Pinion Spline Count: 24
• Ring and Pinion Gear Ratio: 5.13
• Ring Gear Rotation: Standard
• Differential Case Design Type: Dana 44
• Ring Gear Bolt Quantity: 10
• Cover Bolt Quantity: 10

Installation Notes

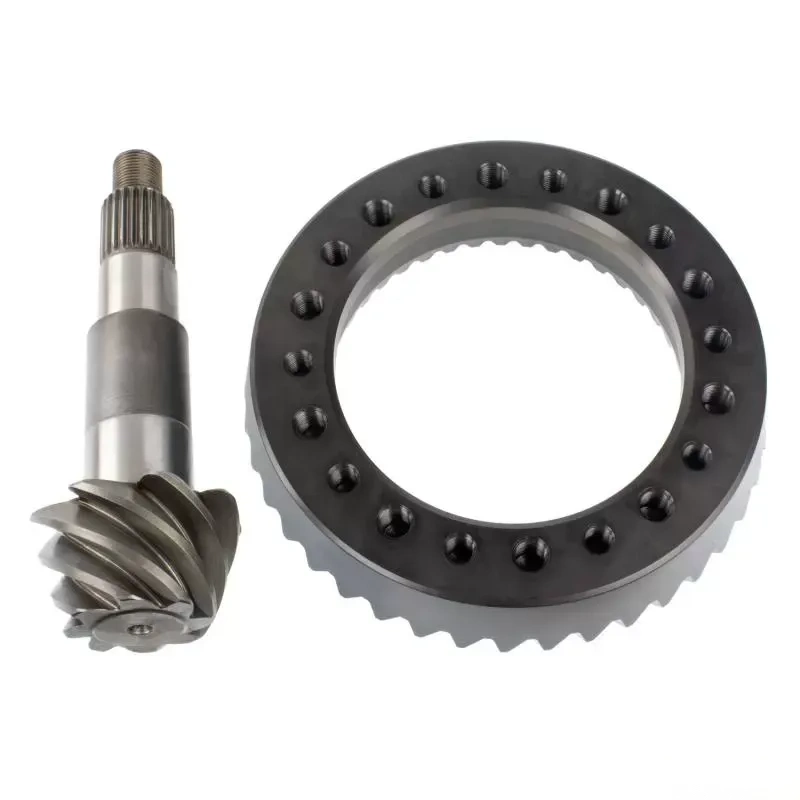

This set requires a differential carrier designed for ratios of 3.73 and lower. It features a thick ring gear, making it ideal for applications that demand added strength and durability. The D44-513JK is dual-drilled to accommodate both 7/16" and 1/2" ring gear bolts, providing flexibility during installation.

Fitment

Designed specifically for the rear differential of the Jeep Wrangler models from 2007 to 2018, this ring and pinion set ensures a precise fit and optimal performance.
