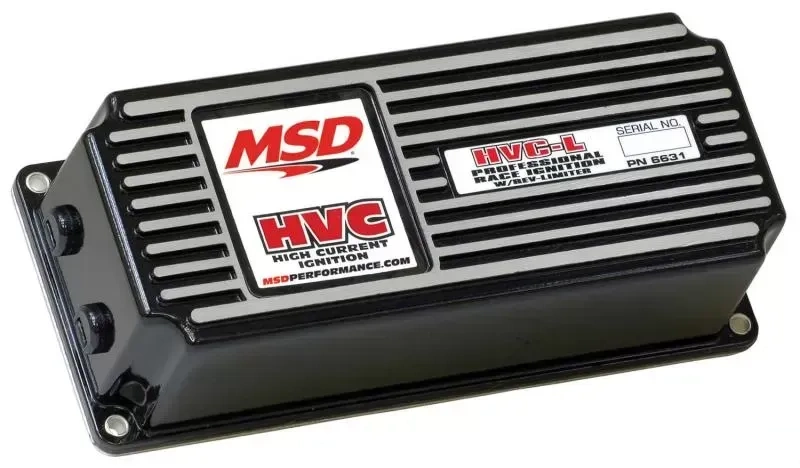

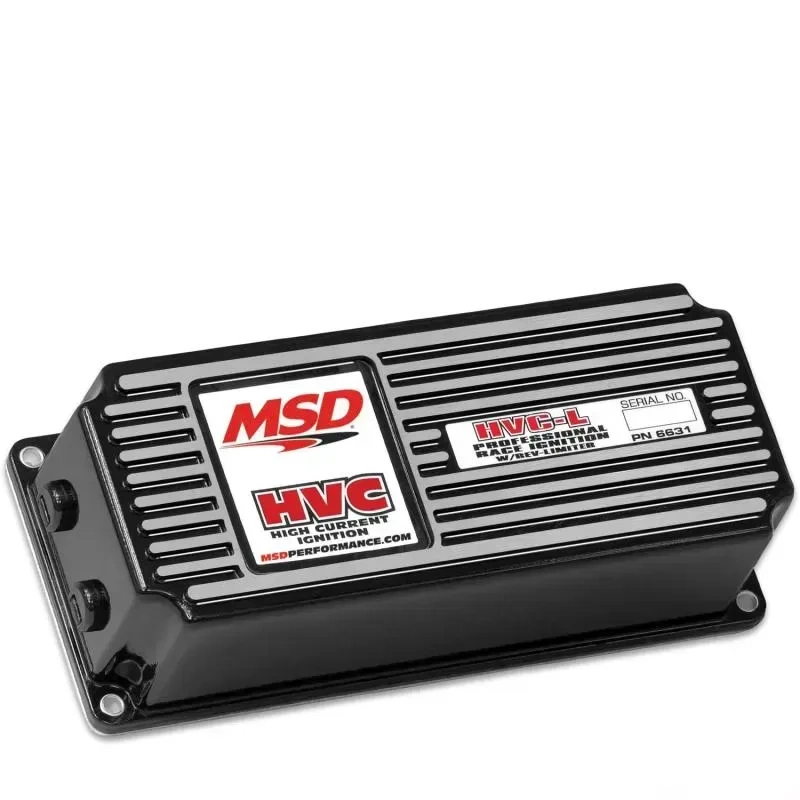

Professional race teams have been relying on the power and endurance of our 6 HVC Ignition Control. The advanced component design and circuitry of the 6 HVC Ignitions produce incredible voltage with high current output. Internally there is an efficient heat sync, solid component mounting and it's all encased in a clear epoxy. The rpm limit is adjustable with plug-in modules and the wiring is routed into NASCAR approved Deutsch style MSD connectors.

The Fast Rev limiter is very quick and accurate compared to our Soft Touch Rev limiter.

Features:

• Includes built-in Fast rev limiter
• Must be used with HVC Coil PN 8250
• Built-in reverse polarity protection circuit
• 150 millijoules per spark up to 15,000 RPM
• 550 primary voltage output to coil
• Accepts breaker points, amplifier and magnetic pickup trigger inputs
• Multiple sparks for 20 degrees of crankshaft rotation
• 6-pin Weathertight connector, mandatory for NASCAR use
• Clear epoxy potting compound for vibration protection and clear base plate for easy tech inspection
• No CARB Exemption Order Number

Specifications:

• Brand: MSD
• Primary Voltage: 550 Volts
• Product Type: Ignition Box
• RPM Range: 15,000 RPM with 14.4 Volts
• Secondary Voltage: 40,000 Volts
• Spark Energy: 150 mJ/spark
• Spark Series Duration: 20 Degree Crankshaft Rotation
• Voltage Required: 12-18 Volts, Negative Ground
• Warranty: Limited 1 Year Warranty
• Weight and Size: 5.1 lbs.,8"L x 4"W x 2.25"H
