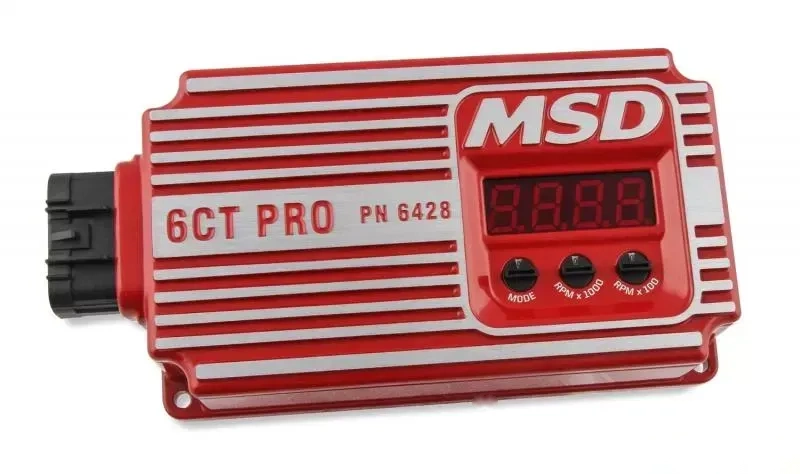

Based on the superior design of the MSD 6CT, the 6CT PRO adds another offering to MSD's line of technologically advanced ignitions for circle track racing. Packed with legendary MSD Ignition power, the 6CT PRO offers a slew of features. A large digital LED display makes it easier than ever to see the rev limiter setting when dialing it in using the laser etched rotary dials on the face of the unit.

Rev limiting is controlled via microprocessor making it so smooth the chassis is virtually undisturbed when charging into turns. The rotary dials are also used to set cylinder select for 4, 6, and 8 cylinder engines, and to adjust the built-in start retard providing options of 0?, 10? or 20? of timing retard for quick starts. As an added bonus, the LED display can be used as a live tach or will display your racecars battery voltage. The unit records the highest RPM your engine turned during the race, which can be recalled easily on the LED display and is quickly reset using a remote, momentary switch. The 6CT PRO offers all this and more in a fully potted housing that utilizes a single connector to keep wiring tidy.

Features:

• MSD’s smoothest rev limiter yet! Won’t upset the chassis and easy on parts

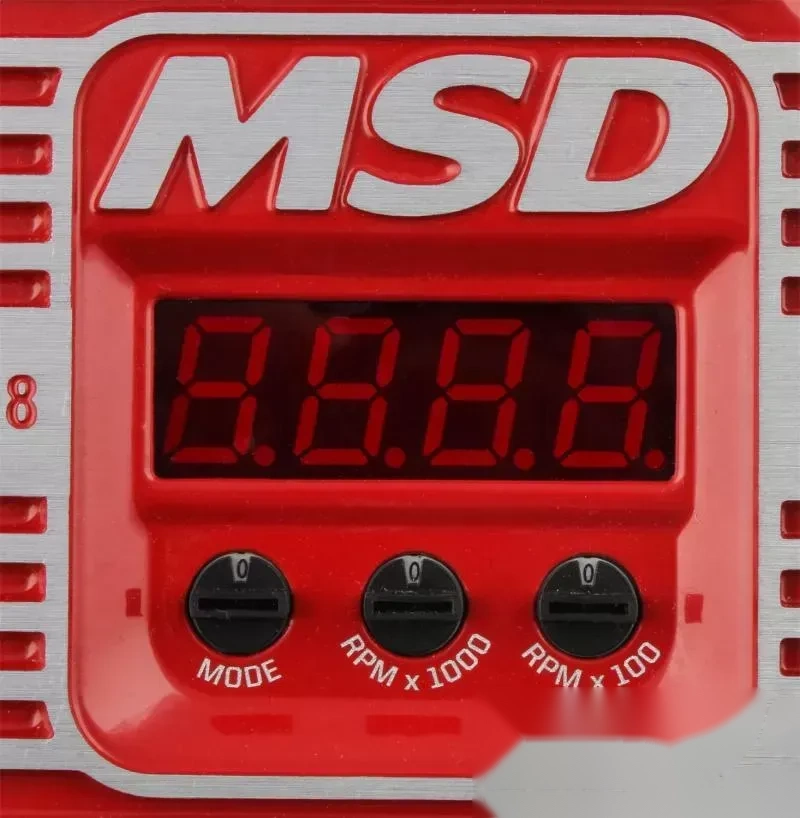

• Large, easy to read LED display
• Records highest RPM the engine turned for last 20 minutes of run time
• Highest RPM recording can quickly be reset with an external momentary switch
• Easy setup of features with three rotary dials on the face of the unit
• Built-in Start Retard adjustable in 0?, 10? or 20? increments for quick, easy starts and extend starter life
• LED display shows rev limit, highest RMP turned, cylinder select, start retard, battery voltage and can be set to tach mode
• Full delivery of spark energy down to 6 volts battery supply
• Highly efficient, low current draw for extended battery life
• Fully potted housing to stand up to demanding race conditions

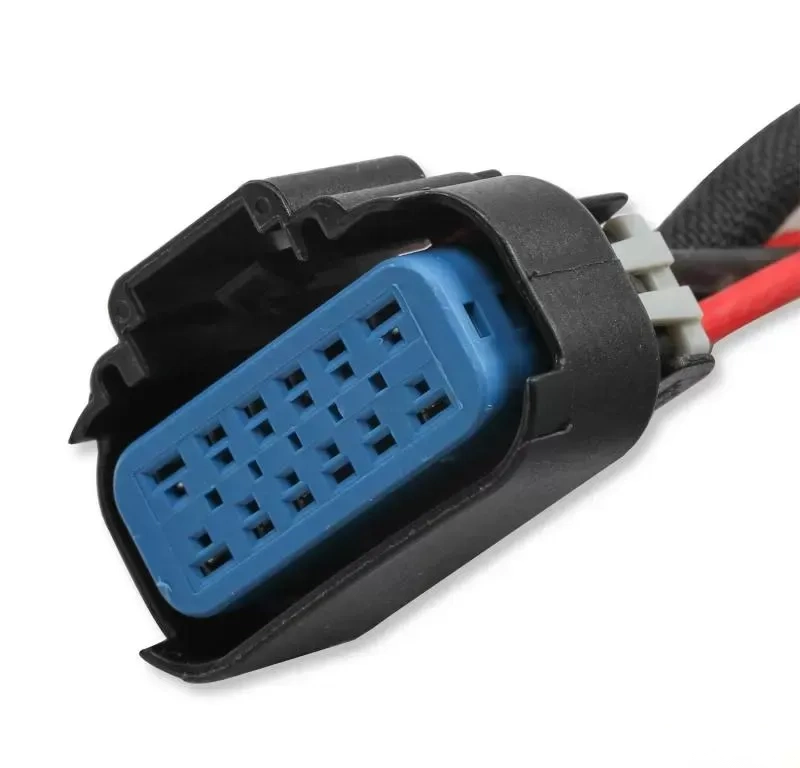

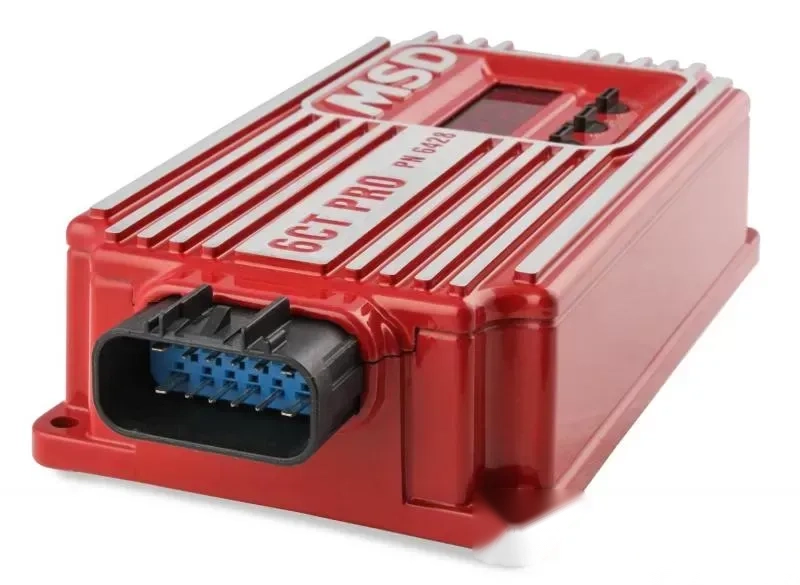

• Single plug-in connector for clean wiring
• Works on 4, 6 and 8 cylinder engines
• Reverse polarity and overheat protection provide ultimate reliability

Specifications:

• Brand: MSD
• Current Draw: 0.8 Amps per 1,000 RPM
• Dimensions: 7.89"L x 4.00"W x 1.87"H
• Features: Start Retard
• Primary Voltage: 535V w/ Blaster Coil / 550V w/ HVC Coil PN 8250
• Product Type: Ignition
• RPM Range: 12,000 RPM
• Sale Category: Ignition
• Secondary Voltage: 45,000 Volts
• Spark Energy: 135mJ w/ Blaster Coil / 150mJ w/ HVC Coil PN 8250
• Spark Series Duration: 20°Crankshaft Rotation
• Voltage Required: 6 to 18 Volts
• Warranty: Limited 1 Year Warranty
• Weight: 2.5 lbs.
