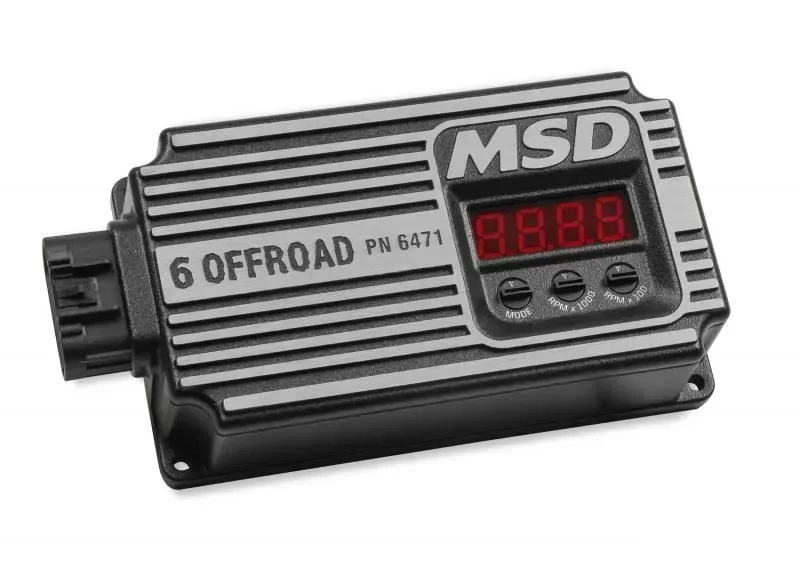

If you're crawling rocks, high speed desert racing, or playing in any kind of harsh terrain in your offroad rig, the MSD 6 Offorad ignition is a must. Its fully potted design provides the ruggedness and reliability needed to get your 4WD to any destination.

The 6 Offroad multi-sparks below 3,000 RPM on V8's ensuring clean, crisp throttle response and complete fuel burn when crawling at low speeds. Above 3,000 RPM a powerful capacitive discharge spark keeps the fire lit until you let off the skinny pedal. A smooth, accurate rev-limiter will protect your engine from over-rev damage due to drivetrain failure or a slick spot on the trail.

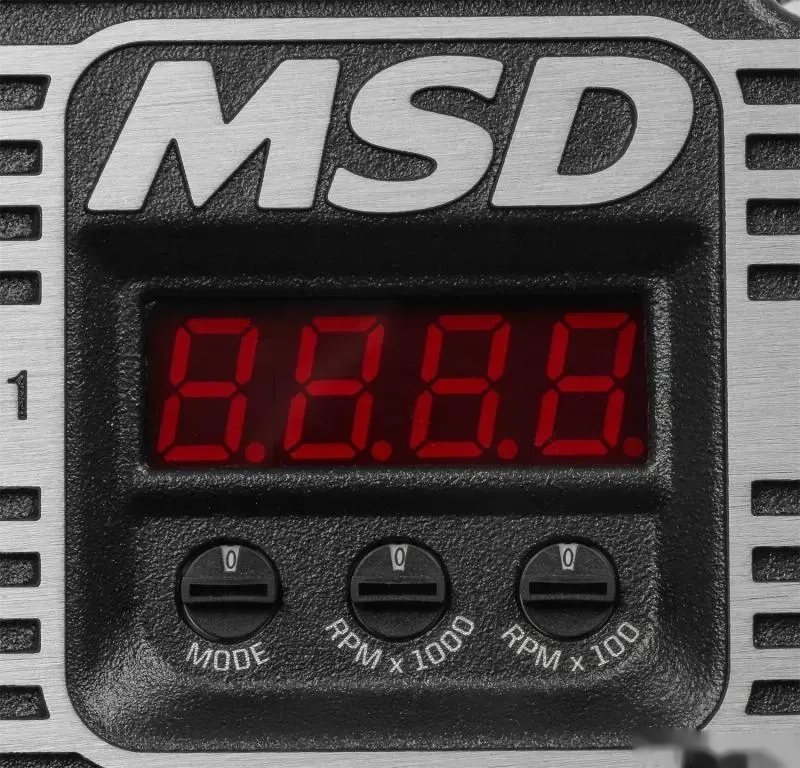

An easy to read LED display on the face of the unit clearly displays the rev-limit RPM. The display, in conjunction with rotary dials, is used to set the rev-limit, cylinder select, and even a timing start retard for race engines. The handy display can also show a live tach reading and even battery voltage with the quick turn of a knob.

Features:

• MSD’s smoothest rev limiter yet! Easy on your engine
• Fully potted design provides reliability even in high vibration and wet circumstances
• Large, easy to read LED display
• Simple setup of features such as the rev limiter with three rotary dials on the face of the unit
• Built-in Start Retard adjustable in 0?, 10? or 20? increments for quick, easy starts and extend starter life
• LED displays rev limit, highest RMP turned, cylinder select, start retard, battery voltage and can be set to tach mode
• Full delivery of spark energy down to 6 volts battery supply
• Highly efficient, low current draw for extended battery life
• Rugged housing to stand up to demanding offroad and race conditions

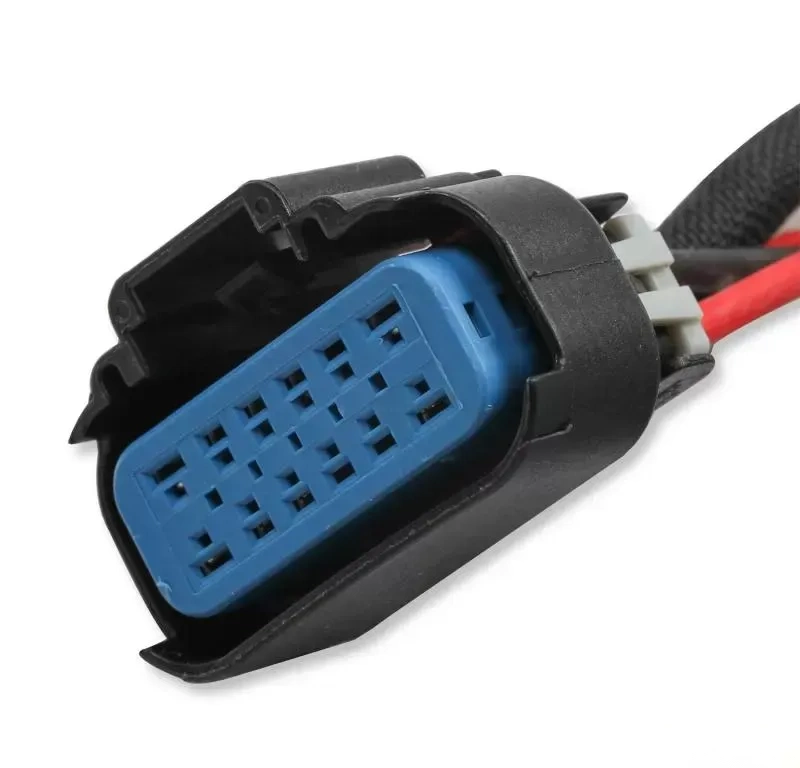

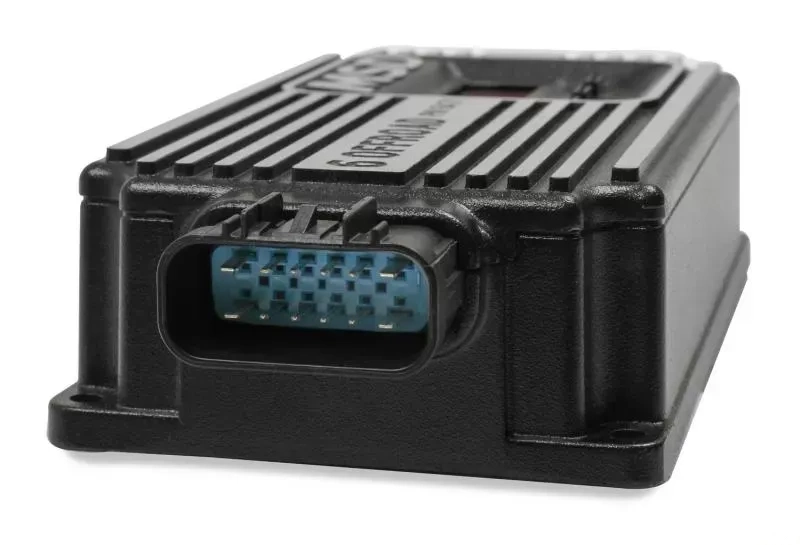

• Single plug-in connector for clean wiring
• Works on 4, 6 and 8 cylinder engines
• Reverse polarity and overheat protection provide ultimate reliability

Specifications:

• Brand: MSD
• Color: Black
• Current Draw: 0.8 Amps per 1,000 RPM
• Features: Start Retard
• Primary Voltage: 535V w/ Blaster Coil / 550V w/ HVC Coil PN 8250
• Product Type: Digital 6 Offroad Ignition Box
• RPM Range: 12,000 RPM
• Sale Category: Ignition
• Secondary Voltage: 45,000 Volts
• Spark Energy: 135mJ w/ Blaster Coil / 150mJ w/ HVC Coil PN 8250
• Spark Series Duration: 20°Crankshaft Rotation
• Voltage Required: 6 to 18 Volts
• Warranty: Limited 1 Year Warranty
• Weight and Size: 2.5 lbs., 7.89"L x 4.00"W x 1.87"H
