If you're looking to improve the performance of your modified mill, we have the answer. Whether you've done a cam swap, or bolted on a carb, intake and headers… the 6A is a surefire way to harness all the ponies under your hood.

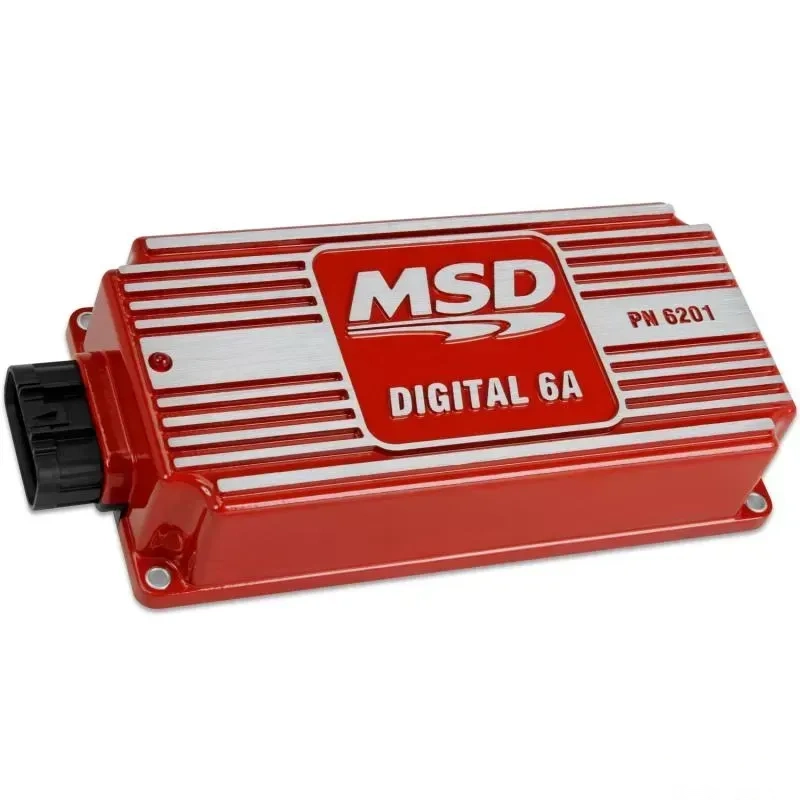

The Digital 6A is a microprocessor controlled, capacitive discharge ignition that multi sparks up to 3,000 RPM providing easy starts, a clean, smooth idle and quick throttle response by optimizing your engines efficiency. Above 3,000 RPM, a single spark stays lit for up to 20? of crankshaft rotation ensuring a complete burn of the air / fuel mixture in every cylinder.

A sealed, locking connector keeps the minimal wiring of the 6A tidy for a clean installation in all applications. It can be run on 4, 6 and 8 cylinder engines with a 12 volt negative ground electrical system and can be triggered with breaker points, an electronic amplifier or magnetic pickups.

Features:

• Easy Starts
• Smooth Idle
• Quick throttle response
• Built-in LED for system checks
• Full, capacitive discharge ignition power throughout the RPM range
• Compatible with 4, 6 or 8 - cylinder engines
• Tach output wire
• Sealed, locking connector

Specifications:

• Brand: MSD
• Color: Red
• Current Draw: .7 Amp per 1,000 RPM
• Features: No Rev Limiter
• Primary Voltage: 520-540 Volts
• Product Type: Digital 6A Ignition Control Box
• RPM Range: 15,000 RPM with 14.4 Volts
• Sale Category: Ignition
• Secondary Voltage: 45,000 Volts
• Spark Energy: 135-145 mJ per spark
• Voltage Required: 12-15 Volts, 7 Volt Start
• Warranty: Limited 1 Year Warranty
• Weight and Size: 1.7 lbs., 8"L x 4"W x 1.825"H
