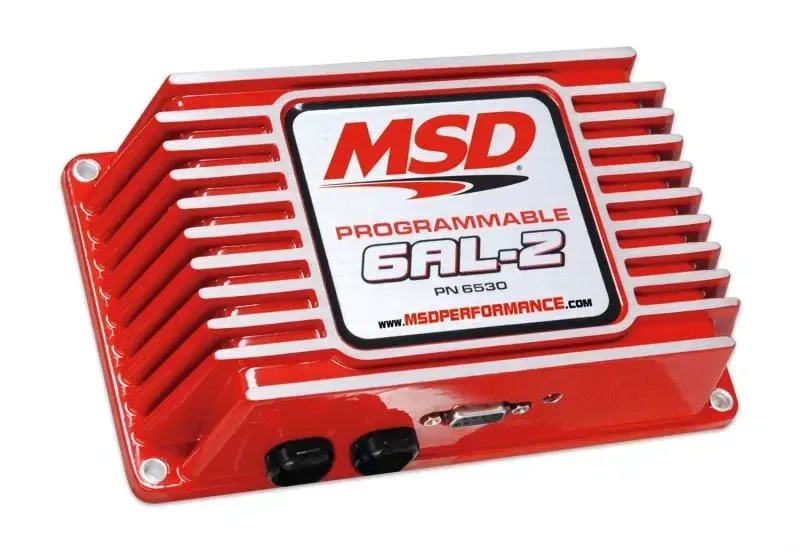

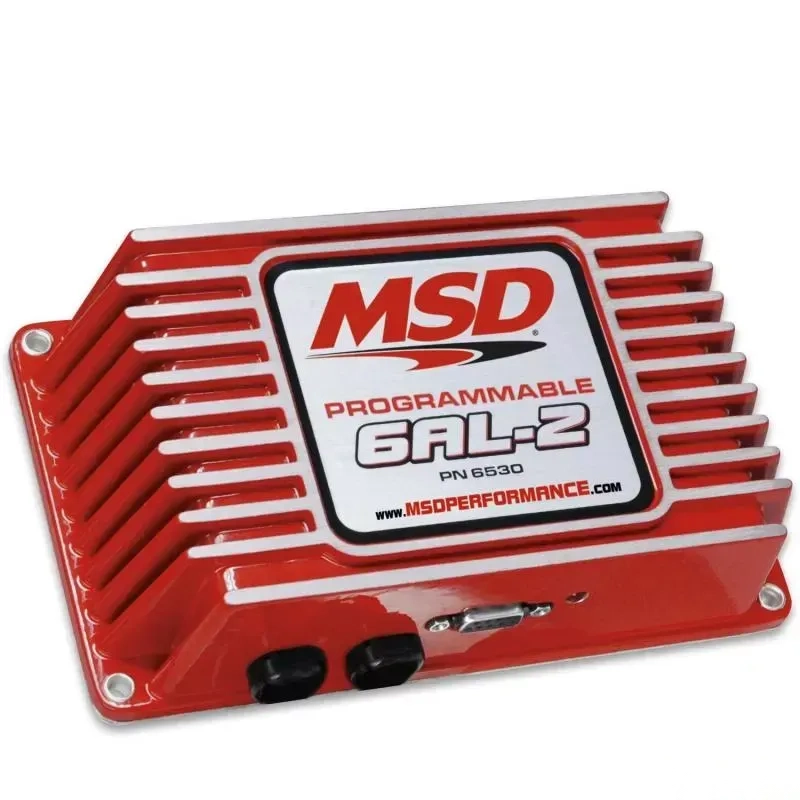

The Programmable 6AL-2 lets you lock out the distributor and program a timing curve via a PC. You'll also be able to set a 2-Step Rev Limiter, a retard for use with nitrous and even a boost timing curve for forced induction engines!

The Programmable 6AL-2 shares the same advanced features of the new 6AL-2 with 535 primary volts and spark energy reaching 135 mJ! Vibration mounts, wiring and a PC cable are supplied. Must use MSD Pro-Data+ Software to program.

Features:

• Advanced features allow for use in street and racing applications
• PC Programmable with easy-to-use Windows based Pro-Data +Software
• Plot a boost timing map with 0.1° per psi accuracy
• Programmable 3-Step Rev Limiter (100 RPM increments)
• Step retard for nitrous applications plus a boost timing map
• Capacitive Discharge technology for fast rise time and maximum spark energy
• EO # D-115-21

Specifications:

• Brand: MSD
• Color: Red
• Current Draw: .7 Amp per 1,000 RPM
• EO Number: D-115-21
• Primary Voltage: 535 Volts
• Product Type: Digital Programmable 6AL-2
• RPM Range: 12,500 RPM with 14.4 Volts
• Sale Category: Ignition
• Secondary Voltage: 45,000 Volts
• Spark Energy: 135 mJ per spark
• Voltage Required: 12-18 Volts, Negative Ground
• Warranty: Limited 1 Year Warranty
• Weight and Size: 3 lbs.,7"L x 4"W x 2"H
