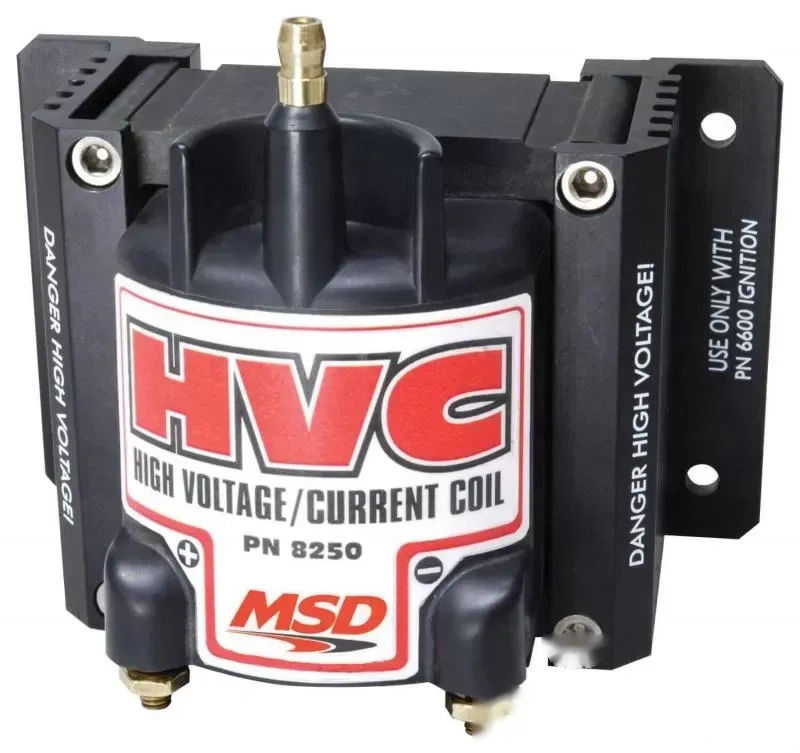

The E-Core design of the HVC Coil is more efficient in producing more output with less loss.

The HVC Coil is designed to be used exclusively with the MSD 6 HVC Series Ignition Controls (#6631, #6632). This Coil is not recommended for use with any other MSD Ignition Control or similar

aftermarket ignition.

Features:

• E-Core design produces more voltage and current while running 50% cooler than canister coils
• Massive laminations and windings are engineered for less energy loss
• Delivers high voltage to ionize the plug gap while the spark glows with high current

Specifications:

• Brand: MSD
• Color: Black
• Inductance: 3mH
• Maximum Voltage: 34,000 Volts
• Peak Current: 600 mA
• Primary Resistance: .07 OHMs
• Product Type: Ignition Coils
• Sale Category: Ignition
• Secondary Resistance: 360 OHMs
• Spark duration: 200 uS
• Turns Ratio: 4.16736111111111
• Type: Circle Track
• Warranty: Limited 1 Year Warranty
• Weight: 3.75 Lbs
