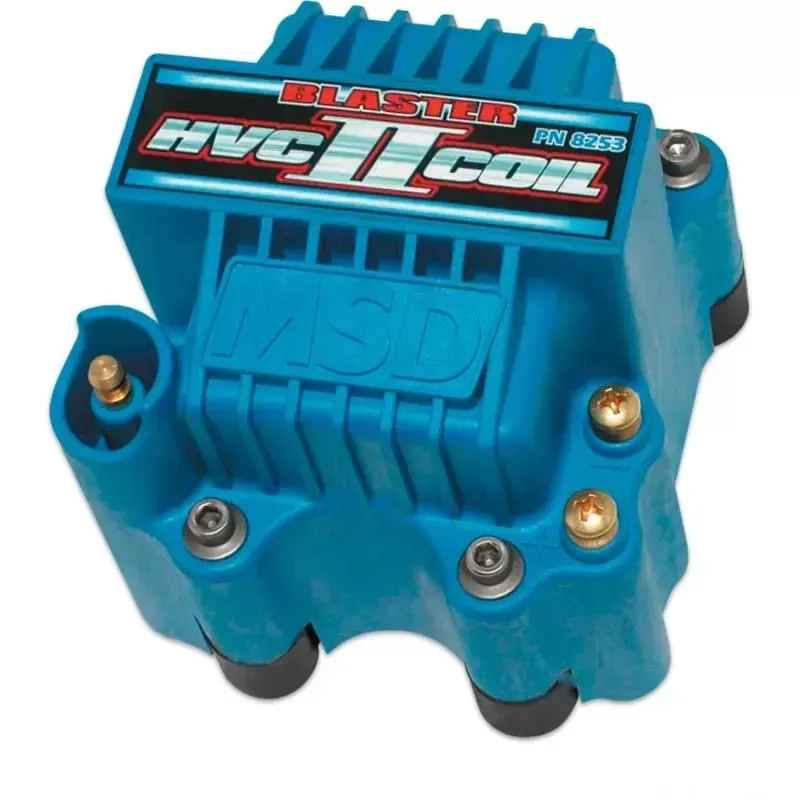

The Blaster HVC coil utilizes an iron U-Core design with a segmented bobbin for improved voltage distribution. The bobbin is molded from a special Dupont Rynite material and wound specifically to produce the most current possible with incredible voltage and lightning quick rise time.

Features:

• Designed for high rpm, long duration applications using MSD 6 Series Ignitions
• New U-core winding design produces more voltage and current
• 100:1 turns ratio and lower primary resistance produce high voltage output
• Windings are encased in fracture resistant compound for vibration resistance
• Dupont Rynite housing with isolated tower and brass primary terminals
• Supplied with rubber shock mounts
• No CARB Exemption Order Number

Specifications:

• Brand: MSD
• Inductance: 3.5 mH
• Maximum Voltage: 44,000 Volts
• Peak Current: 450 mA
• Primary Resistance: .16 OHMs
• Product Type: Ignition Coil
• Sale Category: Ignition
• Secondary Resistance: 630 OHMs
• Spark duration: 450 uS
• Turns Ratio: 4.16736111111111
• Warranty: Limited 1 Year Warranty
• Weight: 3.75 Lbs
