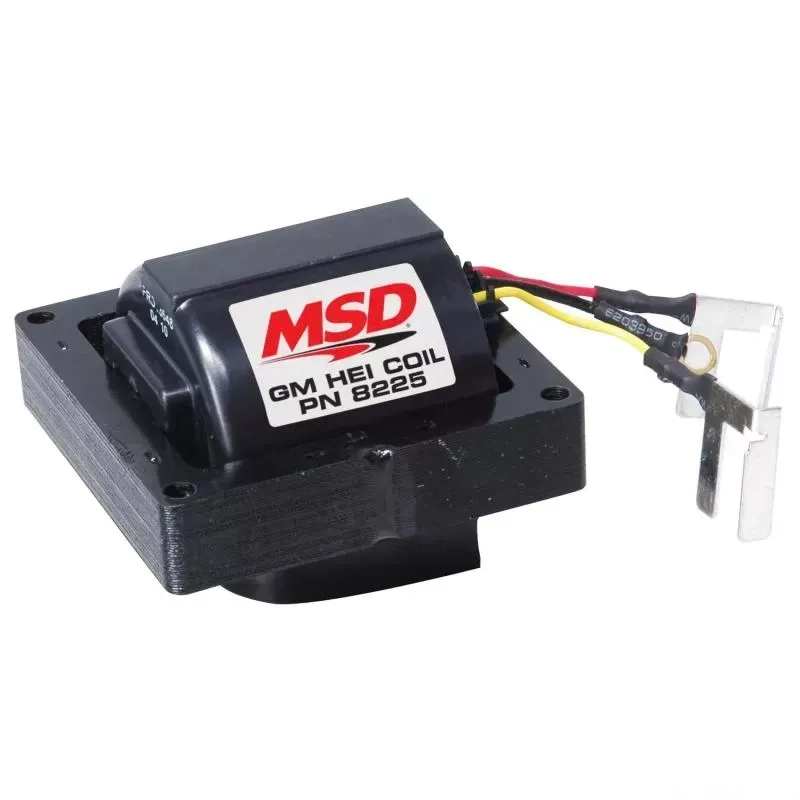

HEI owners now have a choice to replace their stock coil with the MSD High Energy Unitized Coil for GM HEI Distributors. This coil is a direct replacement of the stock coil and offers increased spark energy when used with the MSD HEI Module, PN 83647.

The MSD HEI Coil is designed for use with the MSD High Output HEI Module, PN 8364. It will work with stock ignition modules, but for maximum output use the MSD HEI Module.

Features:

• Direct performance replacement for GM HEI coil-in-cap distributors
• 70:1 turns ratio and lower primary resistance produce high voltage output
• Full power sparks to 9,000 RPM when used with 83647 MSD HEI Module
• Recommended for use with MSD HEI Module PN 83647
• CARB E.O. Approved

Specifications:

• Brand: MSD
• Inductance: 3.5 mH
• Maximum Voltage: 42,000 Volts
• Peak Current: 200 mA
• Primary Resistance: .31 OHMs
• Product Type: Ignition Coils
• Sale Category: Ignition
• Secondary Resistance: 9.2K OHMs
• Spark duration: 200 uS
• Turns Ratio: 2.91736111111111
• Warranty: Limited 1 Year Warranty
