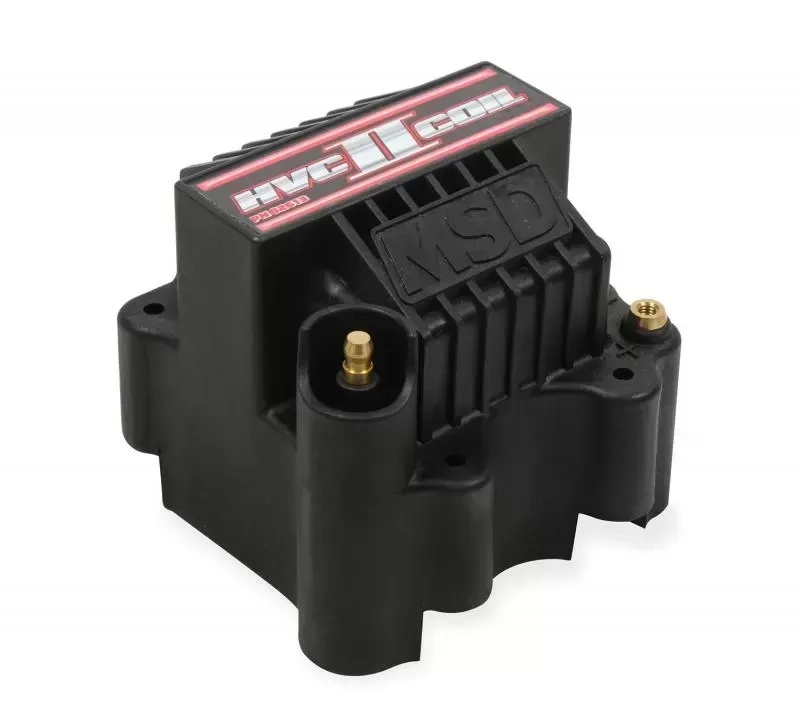

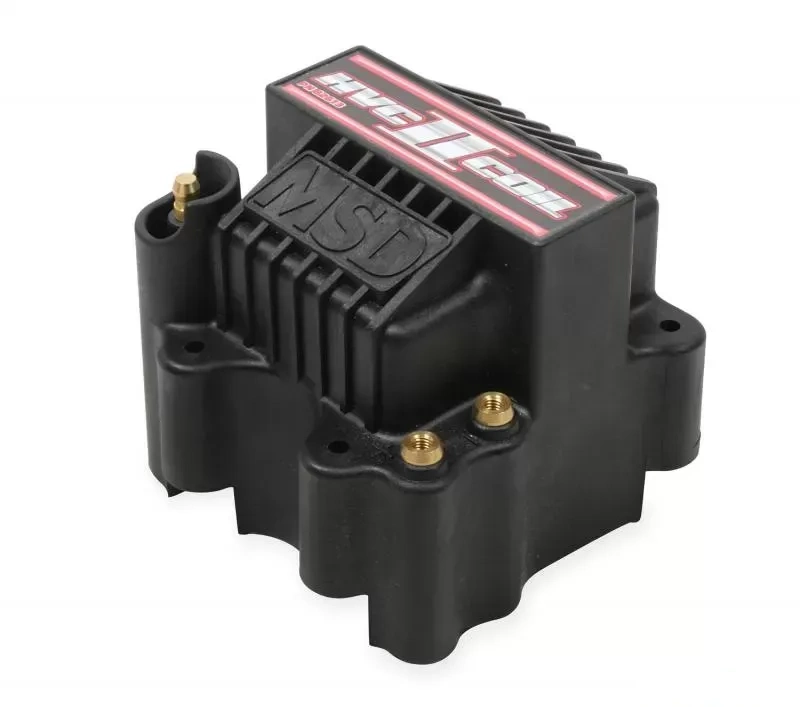

The HVC II Coil is completely built in-house so our engineers have exclusive control over their performance and quality. The Coil utilizes an iron U-Core design with a segmented bobbin for improved voltage distribution. The bobbin is molded from Dupont Rynite FR946 material which has incredible dielectric capabilities at high temperatures. MSD also incorporated a cutting edge winding material that has an improved insulation and is also capable of enduring extreme voltages. Together, these materials create a durable coil with incredible voltage capabilities, lightning quick rise time and lengthy spark duration.

Features:

• Designed for racing applications with an MSD 7 or 8 Series Ignition Control
• U-Core winding design produces more voltage and current
• 70:1 turns ratio and lower primary resistant compound for vibration resistance
• Tough, rigid housing with isolated tower and brass primary terminals
• Supplied with mounting hardware and rubber shock mounts

Specifications:

• Brand: MSD
• Color: Black
• Inductance: .250 mH
• Maximum Voltage: 45,000 Volts
• Peak Current: 2 Amps
• Primary Resistance: .016 OHMs
• Product Type: Coil
• Sale Category: Ignition
• Secondary Resistance: 30 OHMs
• Spark duration: 150 uS
• Turns Ratio: 2.91736111111111
• Type: Drag Race / Long Duration Use
• Warranty: Limited 1 Year Warranty
• Weight: 3.75 Lbs
