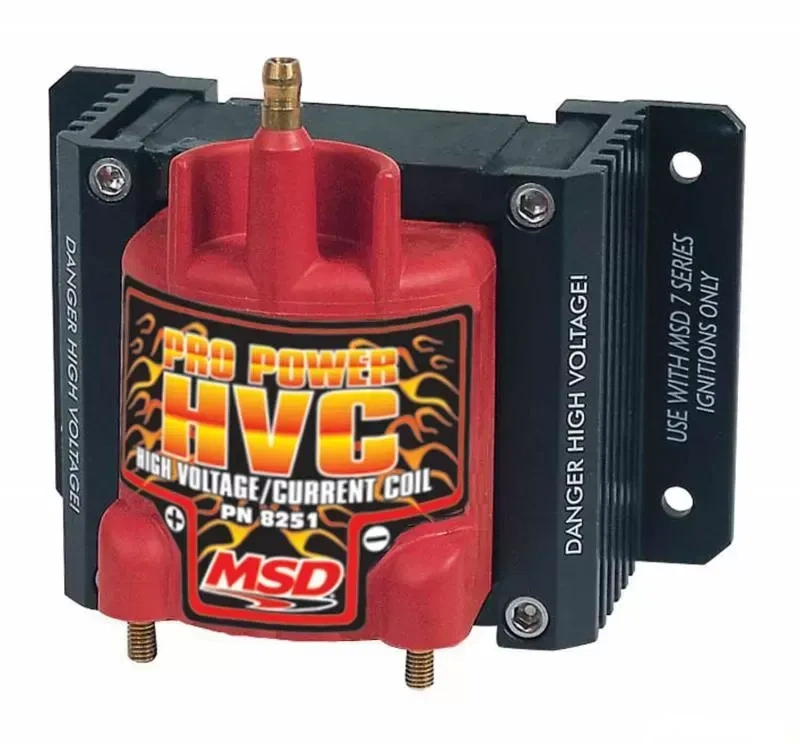

Coils have always had to compromise voltage output against current output. More voltage increases the initial ionization of the spark plug gap, but lowers the amount of current, or heat, that follows across the plug gap. When a coil is designed to produce more current, the voltage output generally suffers which taxes the ease of ionizing the gap. The MSD HVC Coils are designed to produce maximum voltage and energy!

Features:

• Designed for racing applications with an MSD 7 Series Ignition Control
• Efficient E-core winding design produces more voltage and current
• 85:1 turns ratio and lower primary resistance produce high voltage output
• Windings are encased in red epoxy and secured with extruded brackets
• Spark plug style terminal and threaded brass primary studs
• Supplied with rubber shock mounts
• No CARB Exemption Order Number

Specifications:

• Brand: MSD
• Color: Red
• Inductance: 1 mH
• Maximum Voltage: 45,000 Volts
• Peak Current: 1.1 Amp
• Primary Resistance: .04 OHMs
• Product Type: Ignition Coils
• Sale Category: Ignition
• Secondary Resistance: 86 OHMs
• Spark duration: 150 uS
• Turns Ratio: 3.54236111111111
• Type: Drag Race / Long Duration Use
• Warranty: Limited 1 Year Warranty
• Weight: N/A
