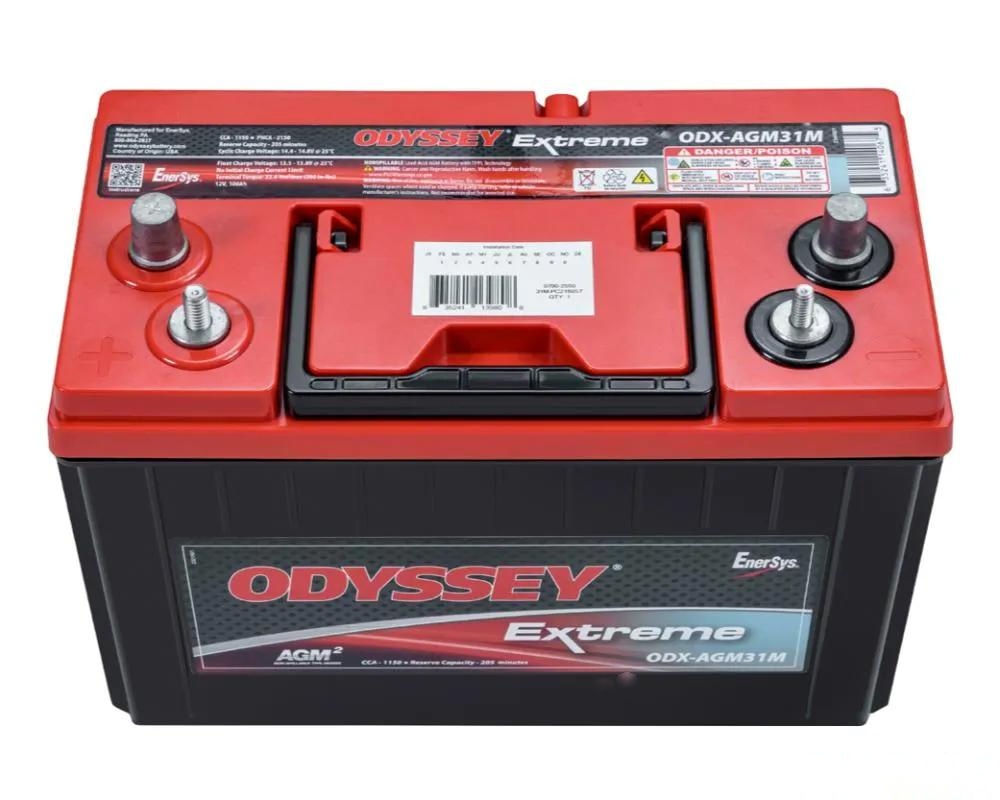

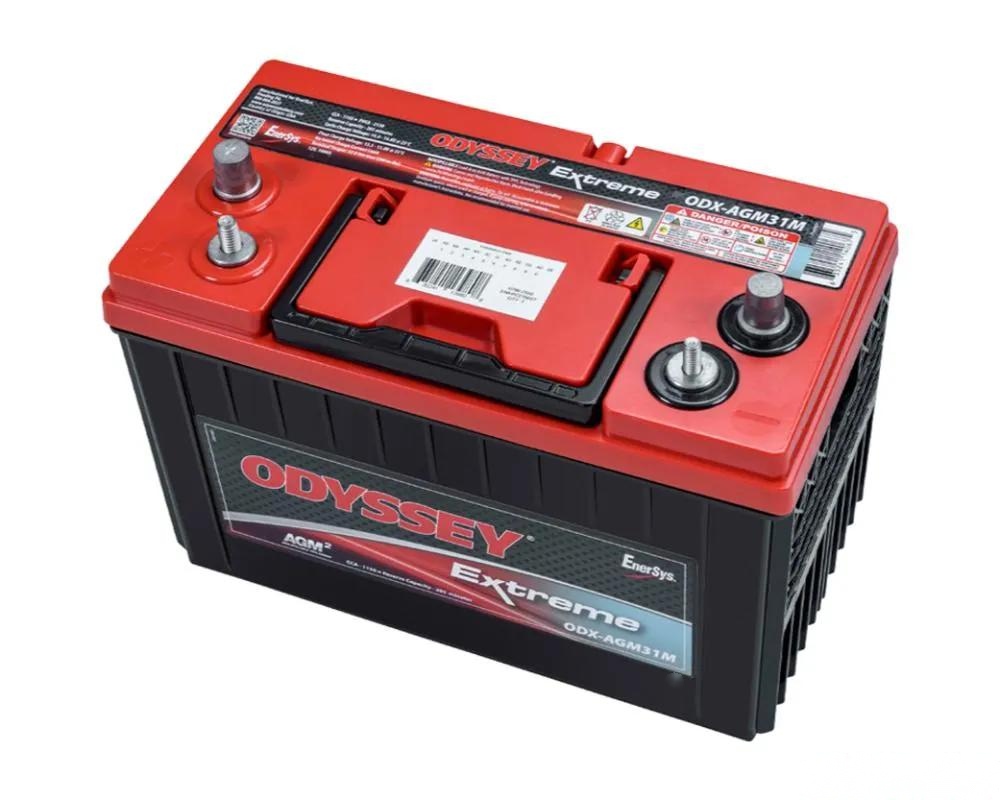

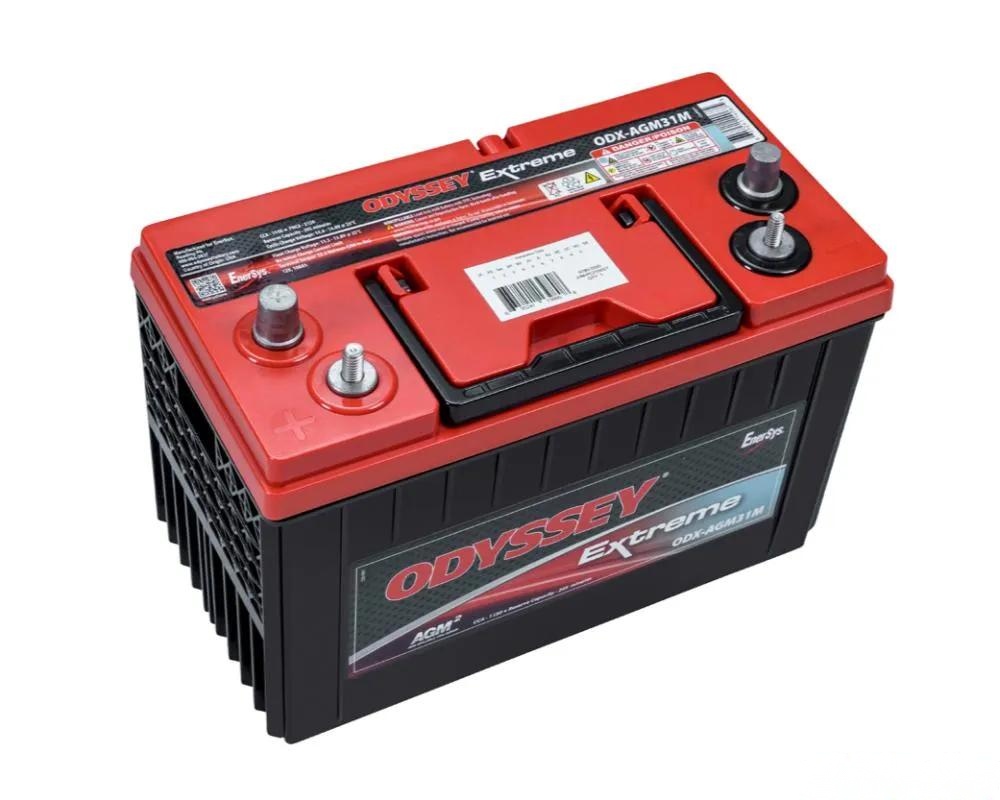

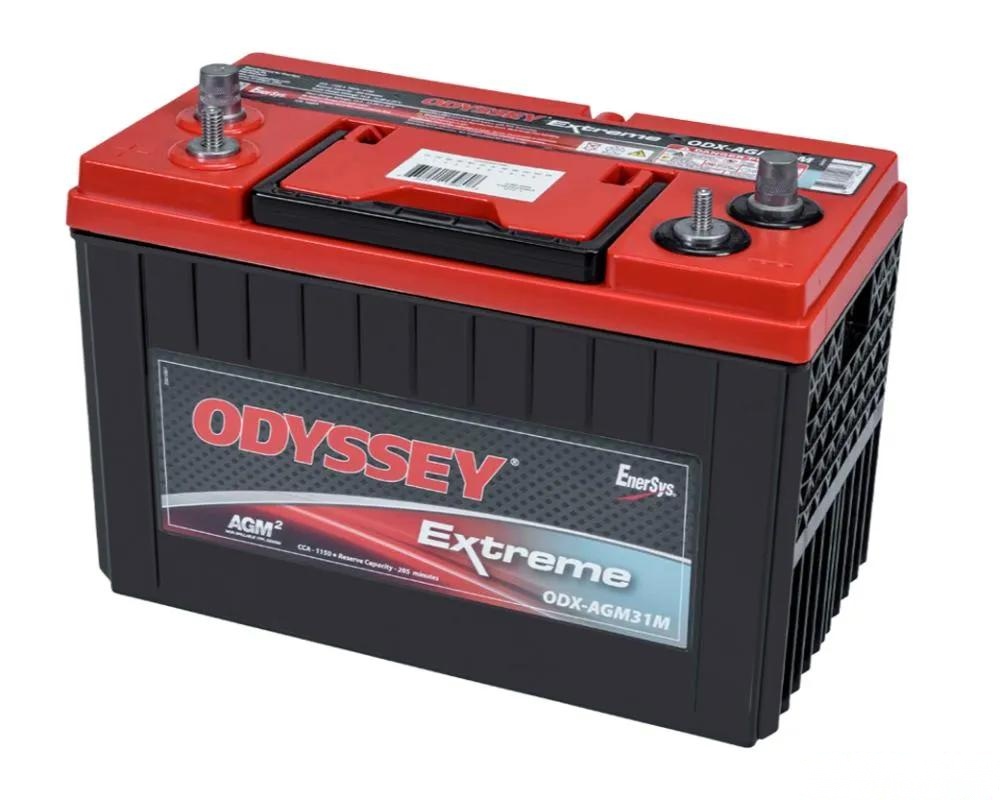

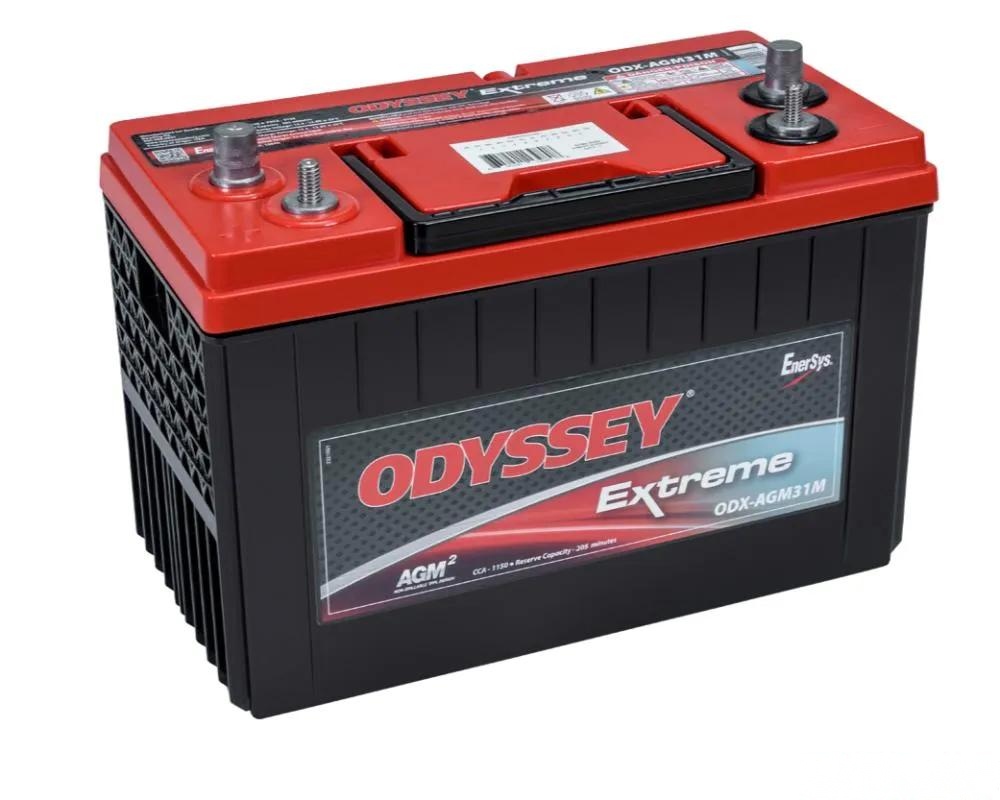

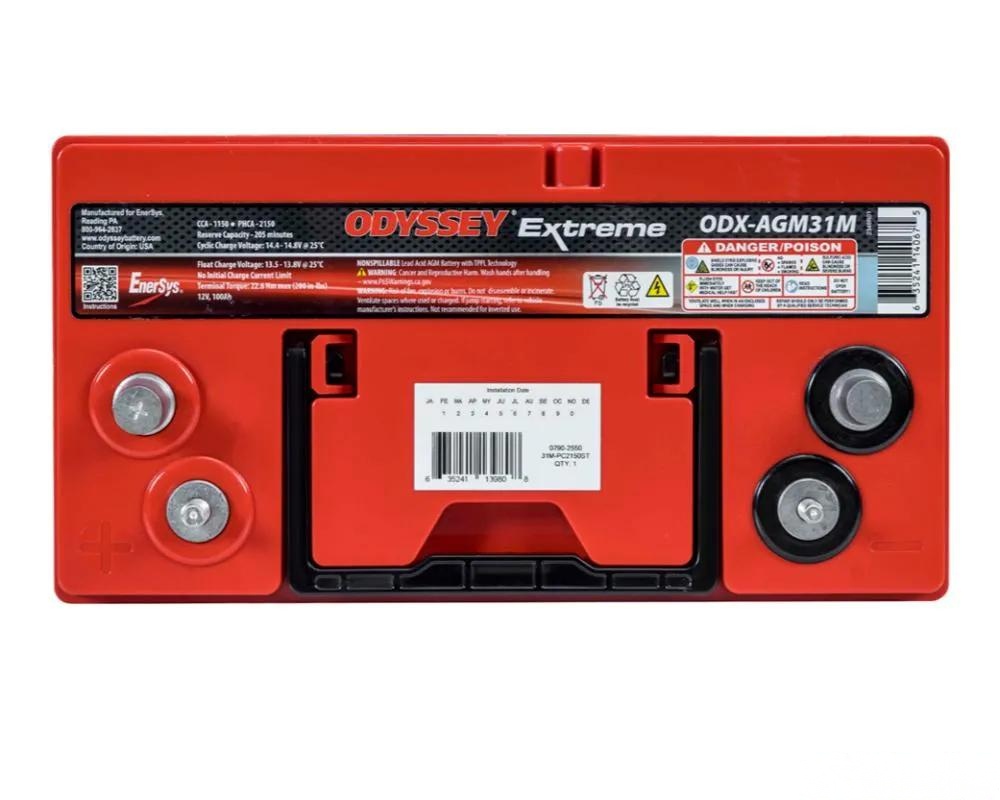

Group 31 with brass SAE posts, 3/8 inch positive and 5/16 inch negative thread SS stud terminals, and a single external vent

Like an athlete that is both a sprinter and a long distance runner, the ODYSSEY Marine Dual Purpose battery has both massive starting power and amazing deep cycling capability - up to 400 cycles at 80% depth of discharge. With twice the overall power and three times the life of conventional marine batteries, the ODYSSEY battery is ideal for trolling, starting, and for powering the many on-board electronic accessories common in today's boats and recreational vehicles.
Dimensions:

• Length: 13.00 in
• Width: 6.80 in
• Height (terminals included): 9.90 in
• Height (container): 8.80 in
• Weight: 77.80 lbs

Specifications:

• Voltage: 12V
• Pulse (5 second) Hot Cranking Amps (PHCA): 2150A
• MHPCA: 1950A
• MPCA: 1625A
• Cold Cranking Amps (CCA): 1150A
• HCA: 1545A
• MCA: 1370A
• 20Hr Nominal Capacity (Ah): 103ah
• 10Hr Nominal Capacity (Ah): 98ah
• Reserve Capacity Minutes: 220 mins
• Terminal: SAE and 3/8-16" Stud (Pos.), 5/16-18" Stud (Neg.)
• Torque Spec in-lbs (Nm max): 200 (22.6)/100 (11.3) studs only
• Internal Resistance (mΩ): 2.2
• Short Circuit (A): 5000A
• Recommended Min. Charging Current (A): 9.8A
• Operating Temperature Range: -40°F / -40°C to 176°F / +80°C
• Optimum Storage Temperature: 68°F / +20°C
• UPC: 635241140675

Specifications Sheet:

• For Instructions CLICK HERE
