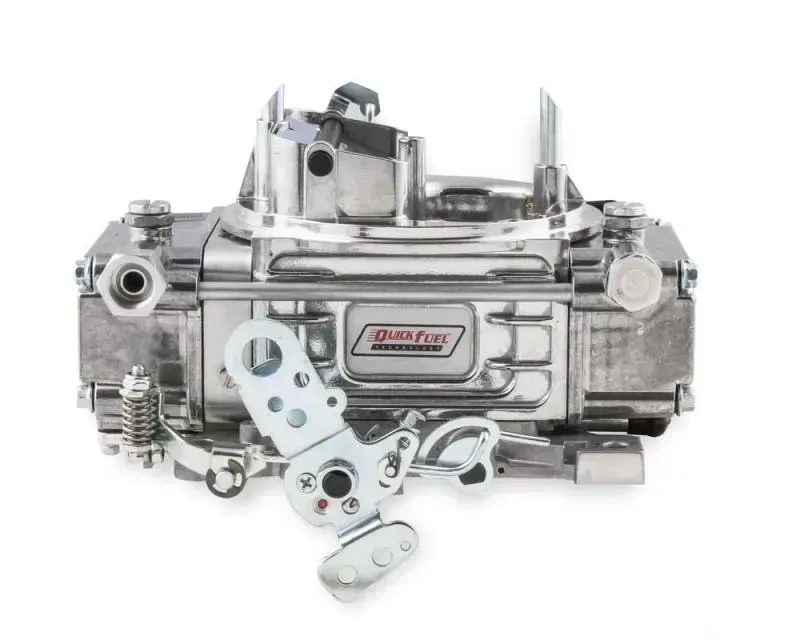

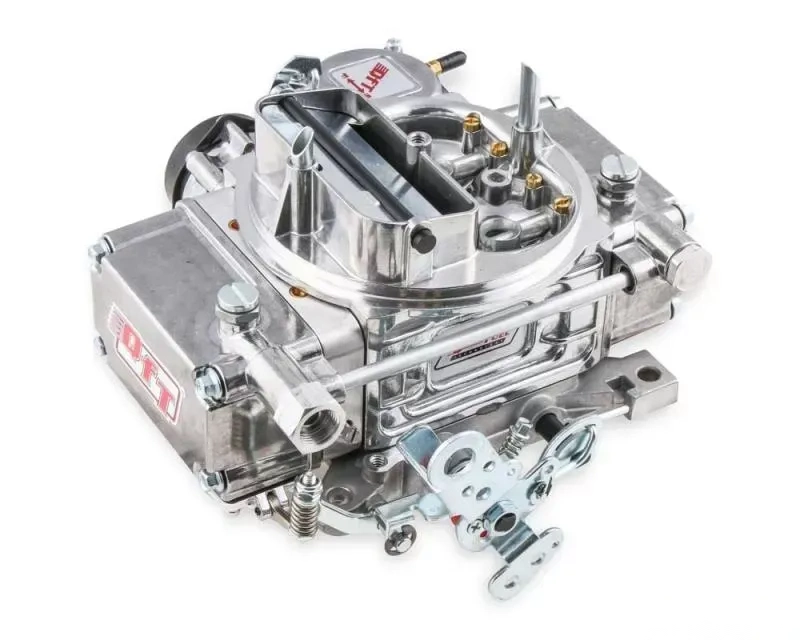

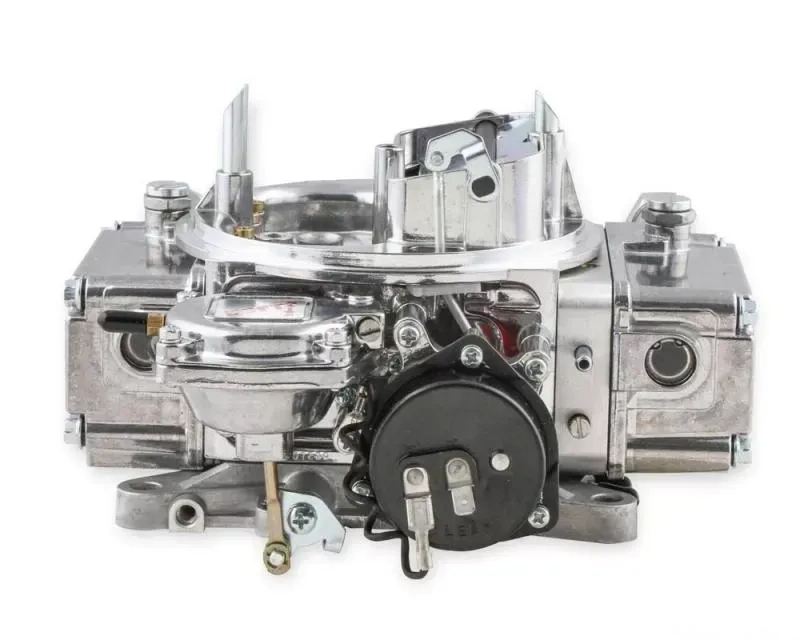

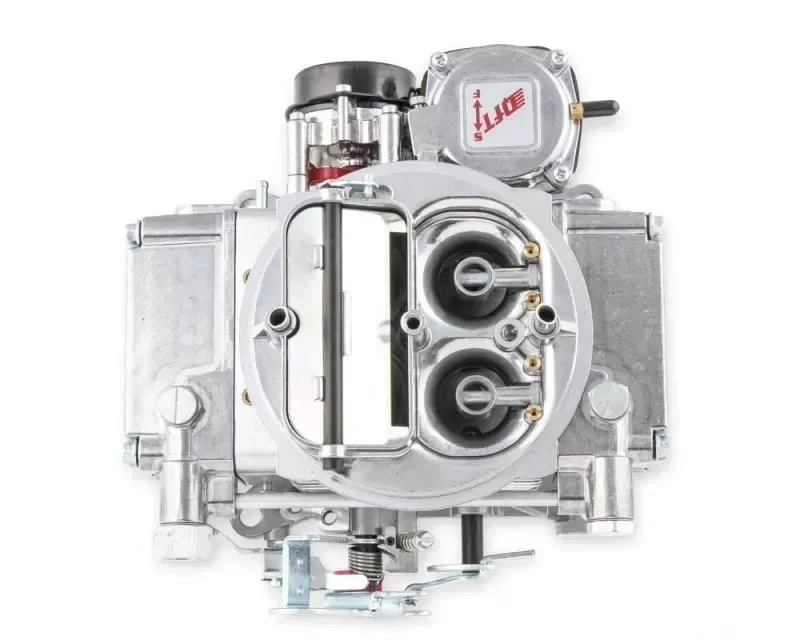

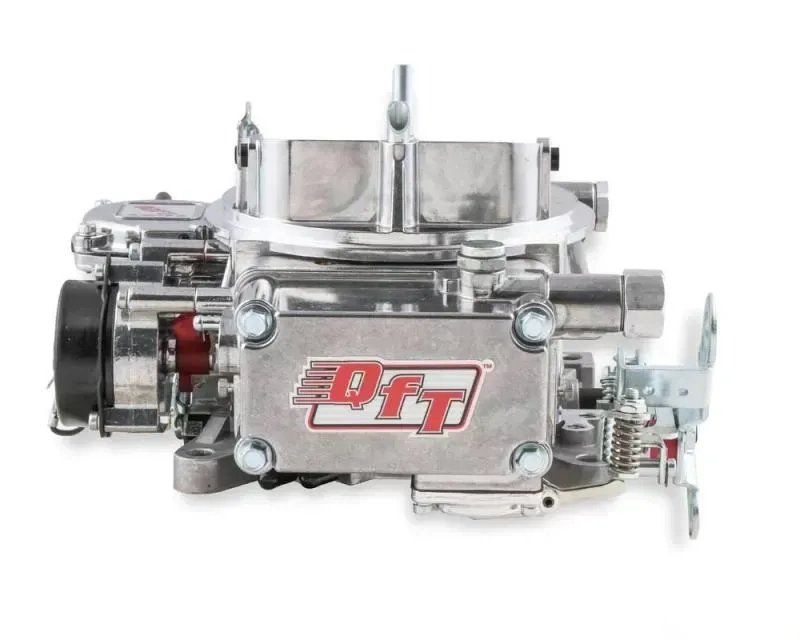

Slayer Series Carburetor 600CFM w/ Single Inlet Fuel Bowls

Slayer Series street carburetors are designed with many of the same innovations and features that are built into all QFT™ race-winning carburetors, including changeable air bleeds and power valve channel restrictions. It's designed with a secondary metering plate with changeable jets, and features all aluminum components for additional weight savings. All Slayer Series carburetors are equipped with universal throttle levers to accommodate Ford A/T kickdown, GM 700 R4 mounting holes, and ability to mount brackets for Chrysler vehicles. Slayer Series are available in 450, 600, and 750 cfm vacuum secondary models.

Features:

• Vacuum Secondaries
• Electric Choke
• Single Metering Block
• Secondary Metering Plate
• Cast Aluminum Throttle Body
• Single Sight Glass Windows
• Changeable Air Bleeds
• Adjustable Needles & Seats
• Notched Secondary Floats w/Jet Extensions

Specifications:

• Barrels: 4
• Billet Color: Diecast-No Billet
• Booster: Down Leg
• Brand: Quick Fuel
• CFM: 600
• Choke: Electric
• Circuit: 2
• Emission Code: 3
• Finish: Shiny
• Fuel: Gasoline
• Fuel System: Carbureted
• High Speed Air Bleed: 31
• Idle Air Bleed Size: 73;33
• Material: Aluminum
• Model: Slayer Series
• Primary Main Jet: 66
• Primary Power Valve: 65
• Primary Pump Nozzle Size: 31
• Product Type: Carburetor
• Secondaries: Vacuum
• Secondary Main Jet: 74
• Supercharged Application: No
• Throttle Bore: 1-9/16 inch
• Warranty: Limited 90 Day
• Part Number: SL-1957E
