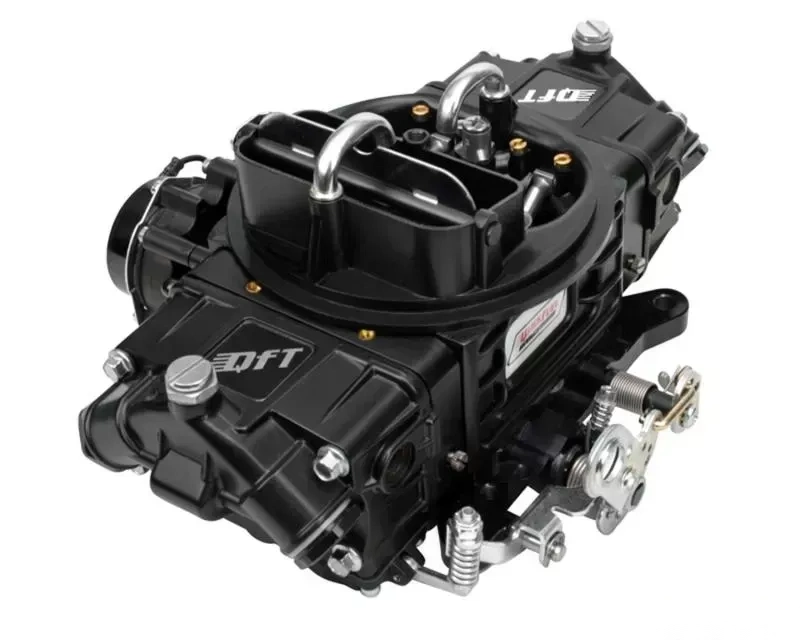

M-Series 750CFM Marine Carburetor

QFT brings its engineering expertise to the marine market. The M-Series feature billet-style metering blocks and throttle bodies for more precise performance and exceptional strength.

Features:

• Exclusive Black Diamond coating for enhanced corrosion protection and appearance, coating provides a 6% reduction in fuel temperature
• Electric choke - Fully adjustable, one wire hookup
• J tubes to prevent spillage
• PTFE-coated throttle shafts with PTFE bearing ribbons and stainless steel plates
• Built-in sight glass windows for easy float adjustment
• Changeable primary idle feed and power valve channel restrictions, plus changeable idle air and high speed bleeds
• QuickLink™ secondary adjustment for fast and easy changing of opening rates
• Available in eight different sizes from 350-1,050 cfm

Specifications:

• Barrels: 4
• Billet Color: Diecast-No Billet
• Booster: Down Leg
• Brand: Quick Fuel
• CFM: 750
• Choke: Electric
• Circuit: 2
• Emission Code: 3
• Finish: Black
• Fuel: Gasoline
• Fuel System: Carbureted
• High Speed Air Bleed: 31
• Idle Air Bleed Size: 70
• Marine Engine Size: Universal
• Material: Aluminum
• Model: Marine
• Primary Main Jet: 75
• Primary Power Valve: 65
• Primary Pump Nozzle Size: 33
• Product Type: Carburetor
• Secondaries: Mechanical
• Secondary Main Jet: 83
• Supercharged Application: No
• Throttle Bore: 1-11/16 inch
• Warranty: Limited 90 Day
• Part Number: M-750
