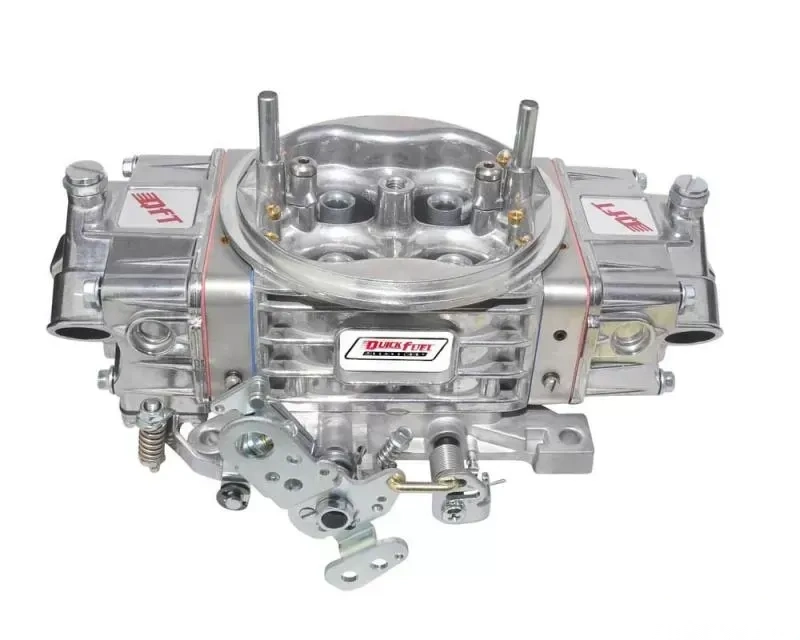

Street-Q Carburetor 950CFM

Quick Fuel Technology's new Street-Q carburetor is intended to deliver legendary Q-Series performance to hardcore street enthusiasts at a reduced price. The major differences between the Street-Q and the race-bred Q-Series is the substitution of cast metering blocks and a cast throttle body in place of fully-machined billet components. All of the critical functionality is retained - 2-circuit metering, downleg boosters, changeable idle and high-speed air bleeds and 4-corner idle. A universal throttle lever design accommodates Ford A/T kickdowns, 700-R4 bracket mounting holes and the ability to mount brackets for Chrysler vehicles. Available sizes include 650, 750, 850, and 950cfm for mechanical secondary models and a 750 vacuum secondary is also offered.

Features:

• Lightweight die-cast aluminum components
• Changeable idle and high-speed air bleeds
• Vacuum & mechanical secondary models
• 2-circuit metering - 4-Corner idle system
• Downleg boosters

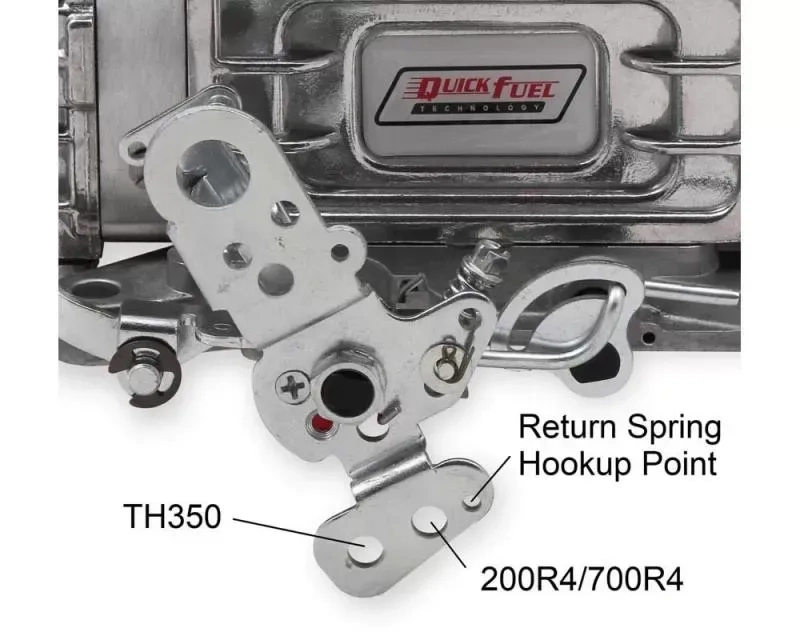

• Universal throttle lever design fits Ford A/T Kickdown, 700-R4 mounting holes - accepts brackets for Chrysler vehicles

Specifications:

• Barrels: 4
• Billet Color: Diecast-No Billet
• Booster: Down Leg
• Brand: Quick Fuel
• CFM: 950
• Choke: None
• Circuit: 2
• Emission Code: 3
• Finish: Shiny
• Fuel: Gasoline
• Fuel System: Carbureted
• High Speed Air Bleed: 32
• Idle Air Bleed Size: 70
• Material: Aluminum
• Model: Street-Q Series
• Primary Main Jet: 78
• Primary Power Valve: 45
• Primary Pump Nozzle Size: 32
• Product Type: Carburetor
• Secondaries: Mechanical
• Secondary Main Jet: 86
• Supercharged Application: No
• Throttle Bore: 1-3/4 inch
• Warranty: Limited 90 Day
• Part Number: SQ-950
