SS-Series Carburetor 850CFM

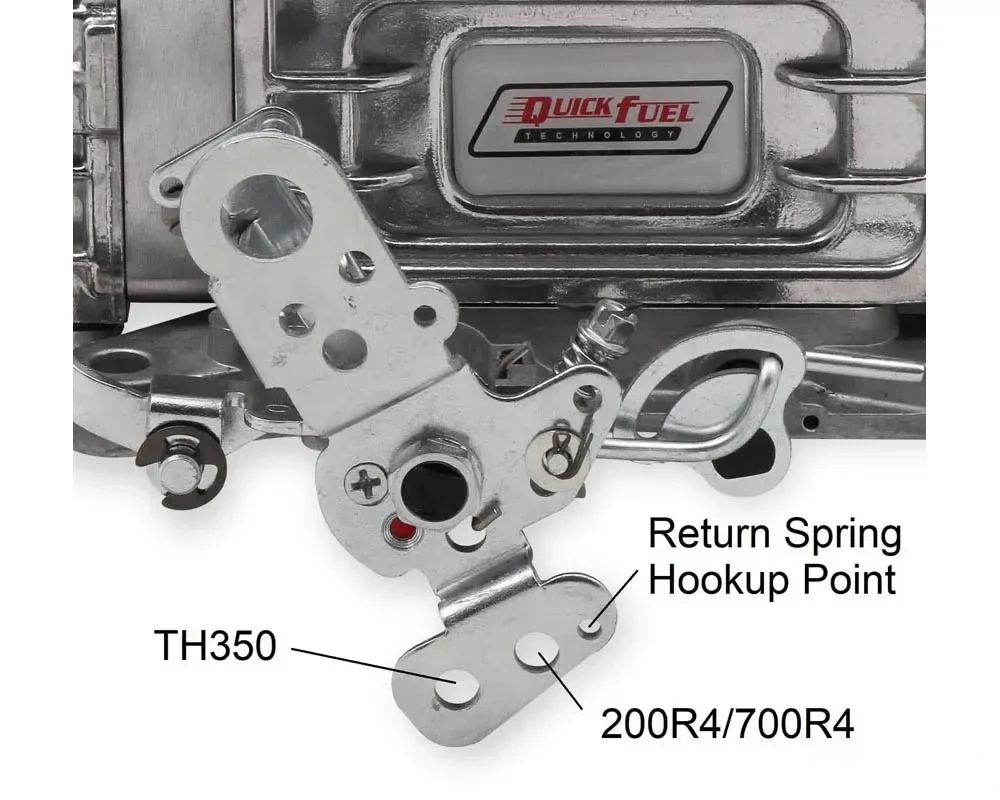

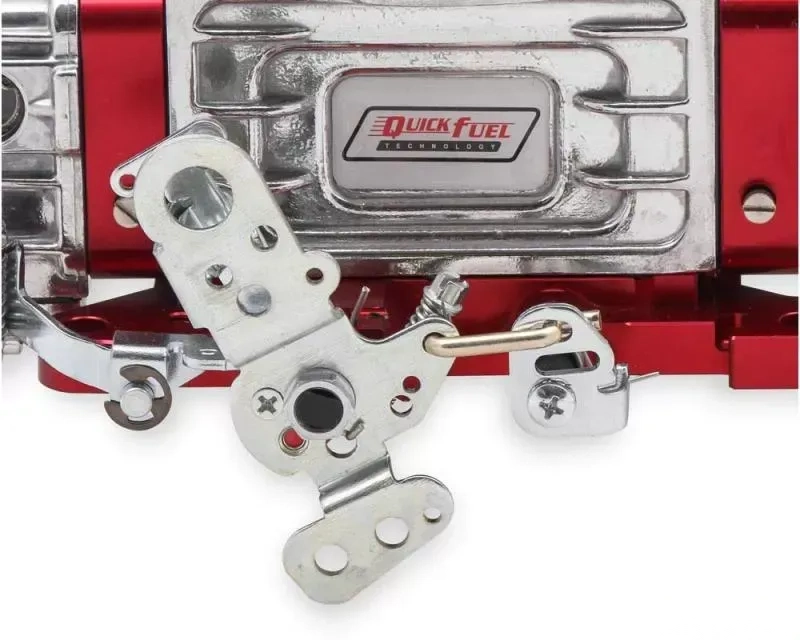

Super Street Series carburetors combine street-friendly drivability and track-capable performance in a single value-oriented package. Setting them apart from ordinary street carbs, they feature billet dual metering blocks and throttle-bodies that offer tighter tolerances and eliminate porosity. Not only are Super Street Series carbs available with both vacuum or mechanical secondaries, QFT™ also offers models designed and calibrated specifically for E85 fuel and blow-through forced induction applications. Running alternative fuel or boost no longer requires an expensive custom carburetor. All SS-Series carburetors are equipped with universal throttle levers to accommodate Ford A/T kickdown, GM 700 R4 mounting holes, and ability to mount brackets for Chrysler vehicles. Available in 8 different sizes, bolting on the ultimate street/strip carburetor has never been easier.

Features:

• Billet dual metering blocks & throttle bodies for improved durability
• Changeable idle, high-speed air bleeds & power valve restrictions
• Dual inlet fuel bowls with dual sight glass windows for easy float adjustment
• 4-Corner idle for precise idle and smooth transition
• Fully-adjustable electric choke with easy one wire hookup
• Race-ready with notched secondary floats and jet extensions
• Polished or Black Diamond™ finish available (some models)

Specifications:

• Barrels: 4
• Billet Color: Red
• Booster: Down Leg
• Brand: Quick Fuel
• CFM: 850
• Choke: Electric
• Circuit: 2
• Emission Code: 3
• Finish: Shiny
• Fuel: Gasoline
• Fuel System: Carbureted
• High Speed Air Bleed: 28
• Idle Air Bleed Size: 70
• Material: Aluminum
• Model: Super Street Series
• Primary Main Jet: 80
• Primary Power Valve: 65
• Primary Pump Nozzle Size: 35
• Product Type: Carburetor
• Secondaries: Mechanical
• Secondary Main Jet: 86
• Supercharged Application: No
• Throttle Bore: 1-3/4 inch
• Warranty: Limited 90 Day
• Part Number: SS-850
