Richmond Gear is the leading manufacturer of professional quality, high-performance drivetrain products. Our complete line of products ranges from high performance ring-and-pinion sets for serious street and racing applications to torque-hungry manual transmissions and components. Richmond Gear products have been winners both at the Daytona 500 and U.S. Nationals for decades. WINNERS RUN RICHMOND!

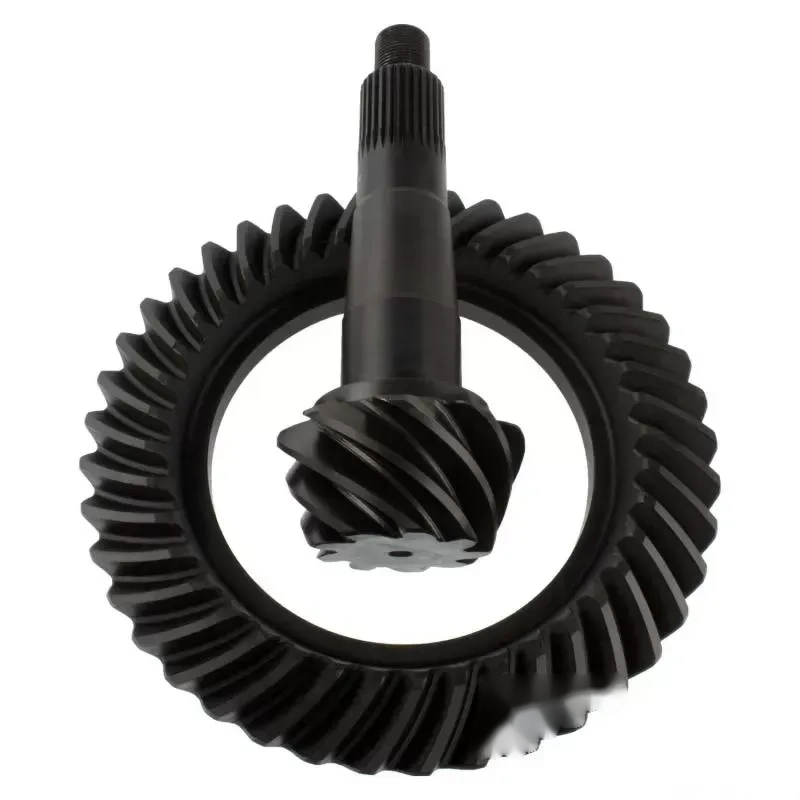

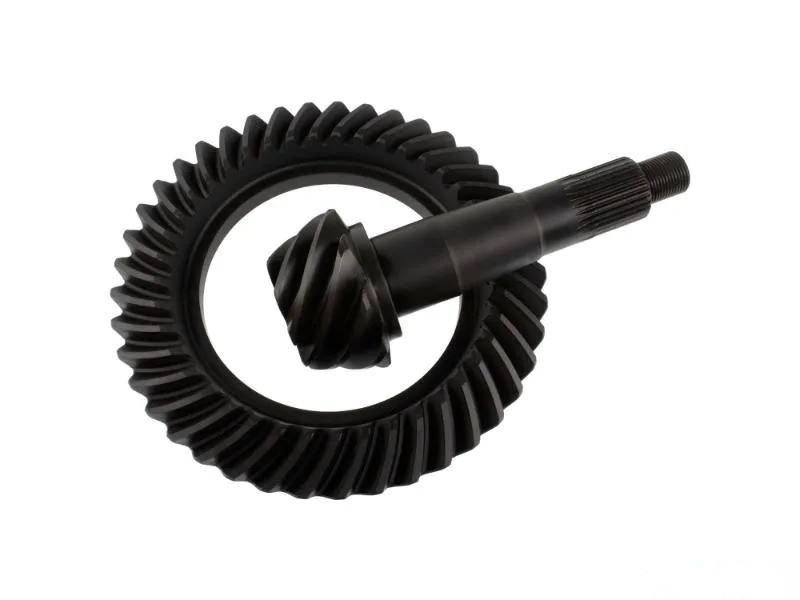

Specifications:

• App Model: GM 8.875 Car
• Cover Bolt Quantity: 12
• Differential Carrier Break: 3.90 Ratio and Higher
• Differential Case Design Type: GM 8.875 Car
• Gear Ratio: 4.56
• Pinion Gear Tooth Quantity: 9
• Pinion Shaft Diameter: 1.625 (Inch)
• Pinion Spline Count: 30
• Ring Gear Bolt Quantity: 12
• Ring Gear Material: 9310 Steel
• Ring Gear Outside Diameter: 8.875 (Inch)
• Ring Gear Rotation: Standard
• Ring Gear Tooth Quantity: 41
• Taxonomy A: LD Differential
• Taxonomy B: Ring and Pinion
• Taxonomy C: Rear
• Taxonomy D: 4.56
