Since day one, we've spearheaded the car audio revolution. Nothing's changed. Rockford Fosgate® is still the global leader in audio innovation, design and engineering, delivering an experience of passion through sound in a way the world has never felt before.

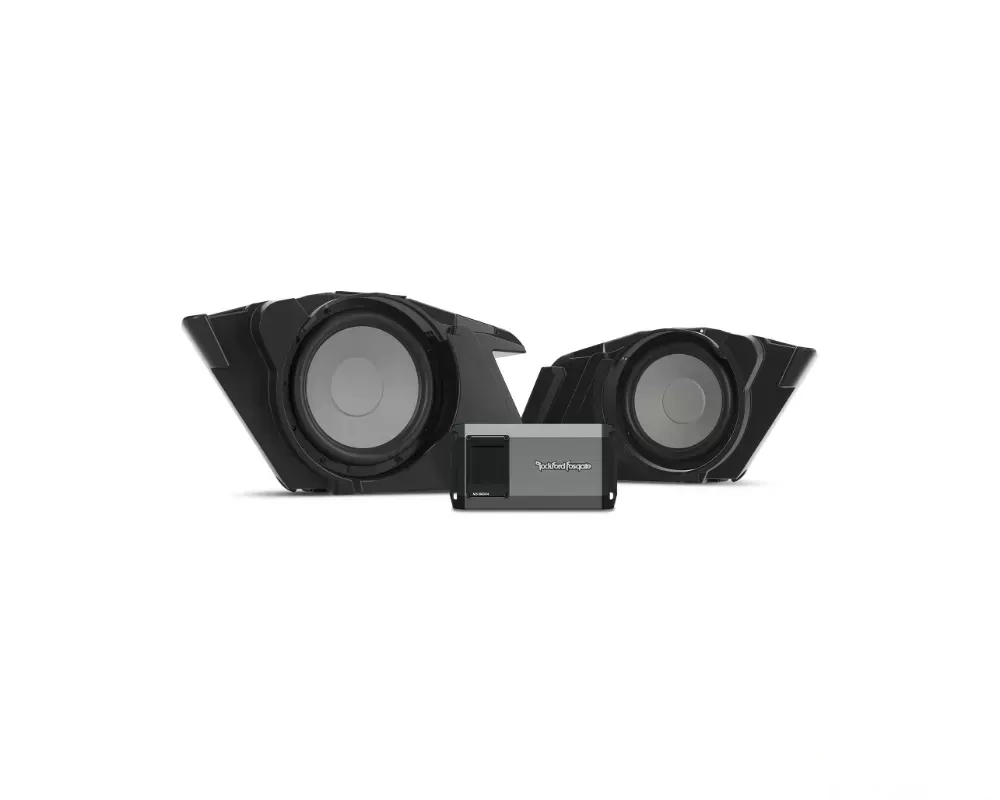

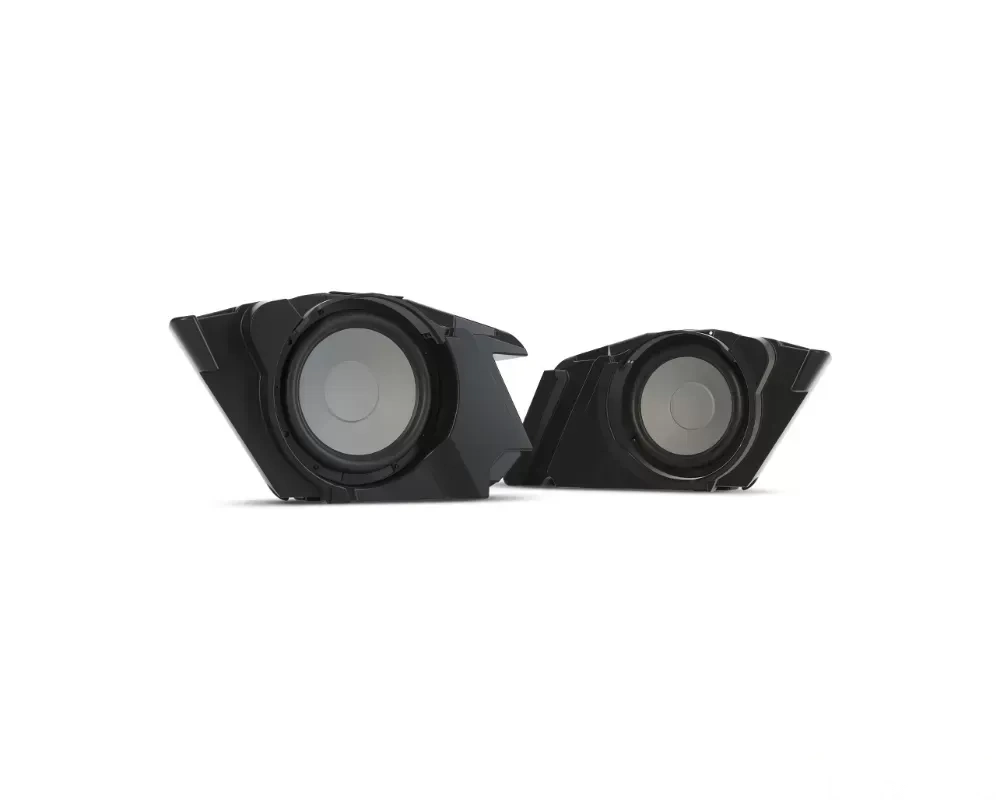

When you want that next level audio performance on your 2014 or newer Harley-Davidson motorcycle, our all new 2014+ subwoofer kits... reinvent the ride. Designed and engineered for easy integration and superior flexibility, the 800 watt, dual 10-inch subwoofer kit is built for true motorcycle, on-road performance. The plug-and-play design paired with freeway speed output create the best in class on-bike, bass experience. This subwoofer system was designed to work with your Rockford Fosgate aftermarket audio system. This kit is designed to work with select 2014+ Electra Glide®, Road Glide®, Street Glide® models.

Features:

• Plug and Play design for easy installation
• Play all day, easy to integrate, and keep music playing for extended lengths of time
• Designed for use with 2014+ Factory Harley-Davidson® Hardshell Bags
• Purpose built for select 2014+ Harley-Davidson® Street Glide® and 2015+ Road Glide®
• Enclosure pre-loaded with 10" Element Ready M1D2-10B (no RGB Color Optix)
• No fasteners needed to keep enclosures in place
• M5-800X4: 800-watt 4-channel IPX6 Element Ready dedicated subwoofer amplifier
• Subwoofer kit includes grille sealing plug if enclosures need to be removed for touring
• Sub Enclosure creates dual air space to keep 6x9" saddlebag speakers separate from 10" subwoofers
• Quality & Performance tested using proprietary RATS (Rockford Automated Testing System)
• Integrated Deutsch/Amphenol connectors make wiring connections simple and error proof
• Klippel Verified certification program delivers the best possible loudspeakers
• IPX6 Rated
• 2-Year Warranty

Specifications:

• Woofer Qty: 2
• Woofer Size: 10"
• Woofer Series: M1D2-10B
• Nominal Impedance: 4Ω | (2Ω DVC wired to create 4Ω bridged amp load)
• Power Handling: 300 Watts RMS | 1200 Watts Peak
• Enclosure Type: Sealed
• Enclosure Material: Rotomolded HDPE
• Speaker Connector: 2-pin Deutsch™/Amphenol™
• Frequency Response: 20 Hz – 750 Hz
• Amplifier Type: Class-AD
• Total Power: 800 Watts
• Grille/Trim Ring Included: Yes
• Mounting Hardware: Yes
• Dimensions: H 15.5 x W 21.5 x D 30 (shipping dims)
• Shipping Weight: 46 Lbs. (20.87 Kg)

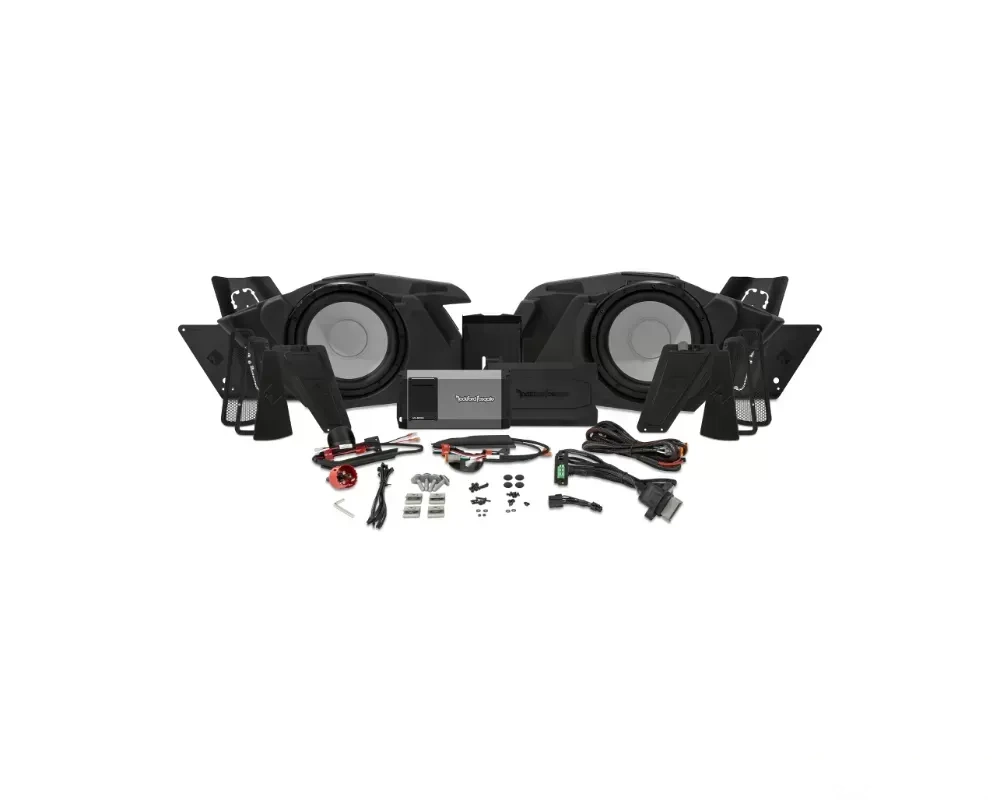

Included In The Box:

• (2) M1D2-10B subwoofers
• (2) Subwoofer enclosures
• (1) M5-800X4 amplifier
• (1) Wiring kit
• (2) Cutting templates
• (1) Amp mounting plate
• (1) 1130-75394-C1 AP Pack (details below):
  • (12) Nylon zip ties 8 in
  • (8) Phillips screws M3 x 0.5 x 12 mm
  • (1) Hole saw OD 45 mm
  • (4) Washers OD 9 x ID 3.2 x T0.8
  • (4) Hex screws 3/16 in, 5/16-18 thread, 1.25 in
  • (4) Clip 5/16-18 thread
  • (2) Screw M3 x 0.5, 5 mm
  • (8) Screw thread cutting ST3.0, 6 mm
  • (2) Nylon plug ID 0.75 in
  • (2) Hex nut M3 x 0.5
  • (8) Phillips screw #8 x 0.75 in.
  • (1) Hex wrench 3/16 in
  • (2) Alcohol wipe

Install Instructions:

• For Instructions CLICK HERE

Fitment:

• Harley-Davidson Electra Glide Ultra Classic FLHTCU 2014+ (Bat Wing)
• Harley-Davidson Electra Glide Ultra Limited1 FLHTK 2014 (Bat Wing)
• Harley-Davidson Electra Glide Ultra Limited Low1 FLHTKL 2017+ (Bat Wing)
• Harley-Davidson Road Glide FLTRX 2015+ (Shark Nose)
• Harley-Davidson Road Glide Special2 FLTRXS 2015+ (Shark Nose)
• Harley-Davidson Road Glide Ultra1 FLTRU 2015+ (Shark Nose)
• Harley-Davidson Street Glide FLHX 2014+ (Bat Wing)
• Harley-Davidson Street Glide Special2 FLHXS 2014+ (Bat Wing)

Note:

• Not compatible with factory equipped amplifier or bulkhead wiring harness in saddlebag.
• Not compatible with factory equipped stretched saddlebags.
