Rockford Fosgate Infotainment Source Unit for Select Harley Davidson Models 2014+

Description

The PMX-HD14 source unit was purpose built to deliver iconic performance. With class leading features like Apple Car Play, plug-and-play installation, CB wireless headset connectivity as well as Street Party Mode which allows you to pair and stream the same music across multiple radios simultaneously.

Features:

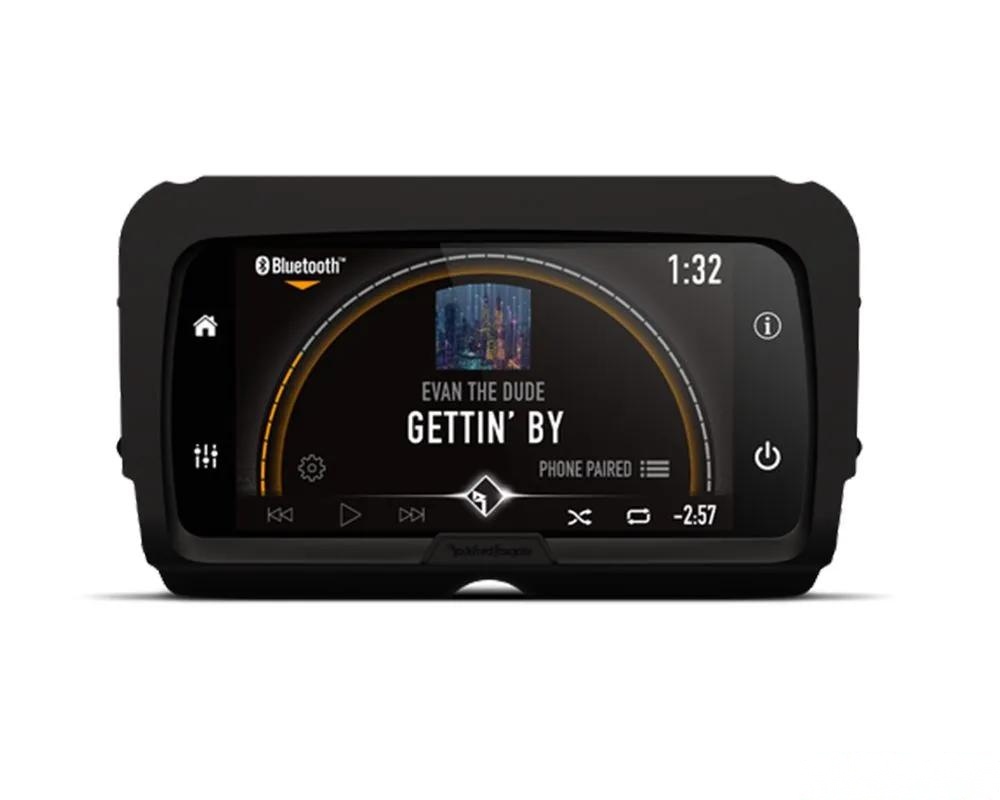

• 7-Inches full color, glove friendly, capacitive multi-touch screen
• Plug and Play Installation with OEM electrical connectors
• No need to “flash” your radio
• Retains factory thumb control functionality with no additional parts
• Digital AM/FM/WB tuner with presets
• SiriusXM Ready (requires SiriusXM SXV300 tuner)
• USB Input with 1.5A USB Charging
• Built in DSP with Subwoofer control
• Street Party Mode can broadcast audio up to 100 feet to 8 additional PMX-HD14
• Apple CarPlay built in
• Glove friendly touch controls
• Works with wired intercom headsets on Ultra models (requires “push to talk” interface)
• Works with wireless headsets and OEM CB (WHIM & CB modules required)
• Bluetooth connectivity with A2DP wireless audio streaming
• Software updatable via USB
• Optimized DSP presets for all 2014+ Rockford Fosgate H-D stage kits
• AUX Input
• 14 band graphic EQ
• Multi-region radio frequencies
• 2-Year Warranty

Specifications:

• Display Size: 7 Inches
• Display Type: Color TFT
• EQ Bands: 14
• EQ Type: Graphic
• Source Zones: 1.0
• Audio Zones: 1.0
• Output Impedance: < 500?
• Frequency Response: 20 Hz – 20 kHz
• Pre-Amp Outputs: 6 (Left/Right)
• Pre-Amp Output Voltage: 4.0 VRMS Front | 4.0 VRMS Rear
• iPhone via USB: Yes
• Android via USB: Charge Only
• USB Type: Type A
• USB Charging Current: 1.5 A
• USB Max Folders/Files: 999
• USB Max Capacity: 32 GB
• AUX Inputs: 1 (left/right)
• AUX Input Sensitivity: 800 mV – 4 V
• AM/FM Tuner: Yes
• Bluetooth: 5.0
• SiriusXM: Yes (SXV300)
• Made for iPhone: Yes
• Apple CarPlay: Yes
• Android Auto: No
• Clock: Yes
• SD Card Input: No
• Street Party Mode: Broadcast: 100 ft. max | Receiving: 8 radios max
• Playback: MP3: Yes
• Playback: FLAC: Yes
• Playback: WMA: Yes
• Playback: AAC: No
• Playback: LC3: No
• Playback: DRM: Yes
• Playback: USB: Yes
• Operating Voltage: 9 – 16 VDC

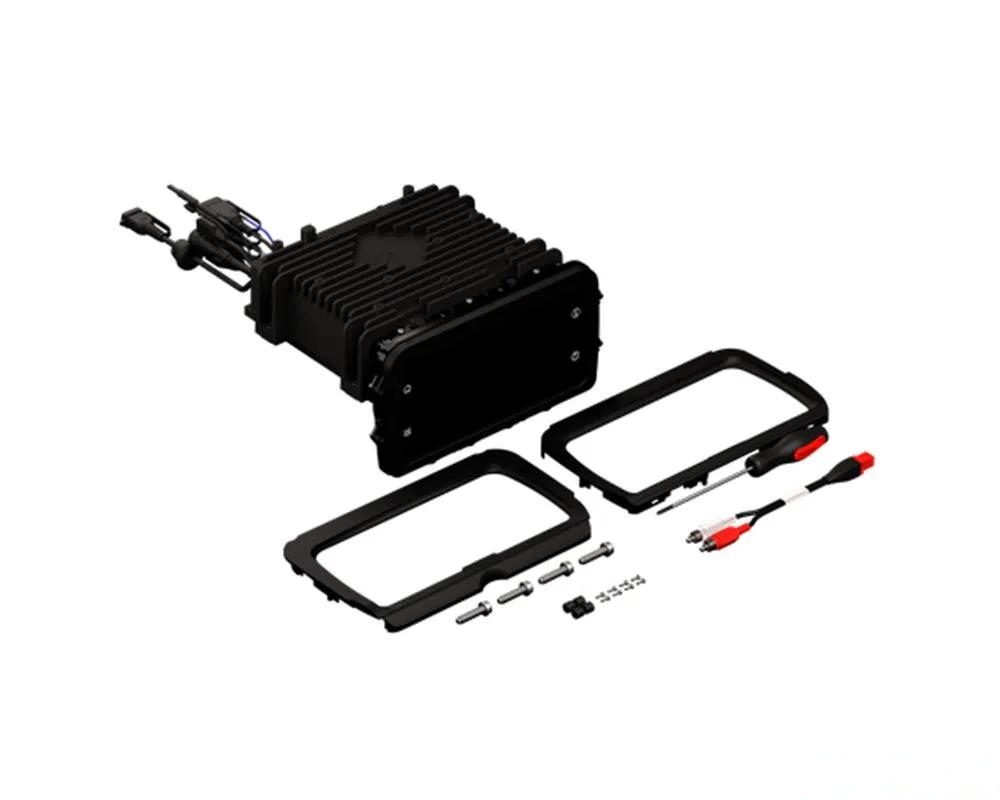

Included in the Box:

• (1) Road Glide trim bezel
• (1) Street Glide trim bezel
• (8) Trim Panel Screws
• (1) Mini Phillips screwdriver for trim bezel
• (4) Radio Chassis Mount screws
• (8) Rubber sleeves for radio chassis screws

Fitment:

• Harley Davidson Models 2014-Present

Note(s):

• Antenna not included
