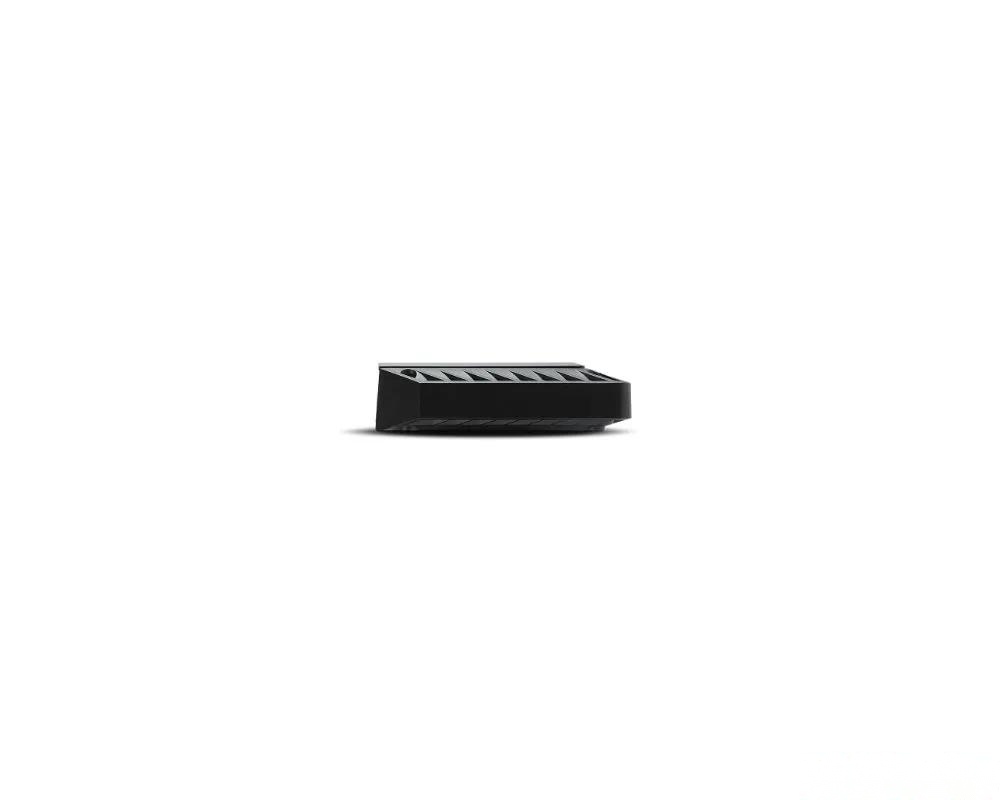

Rockford Fosgate Power 1,500 Watt Class-bd Constant Power Amplifier - Image 1
In Stock

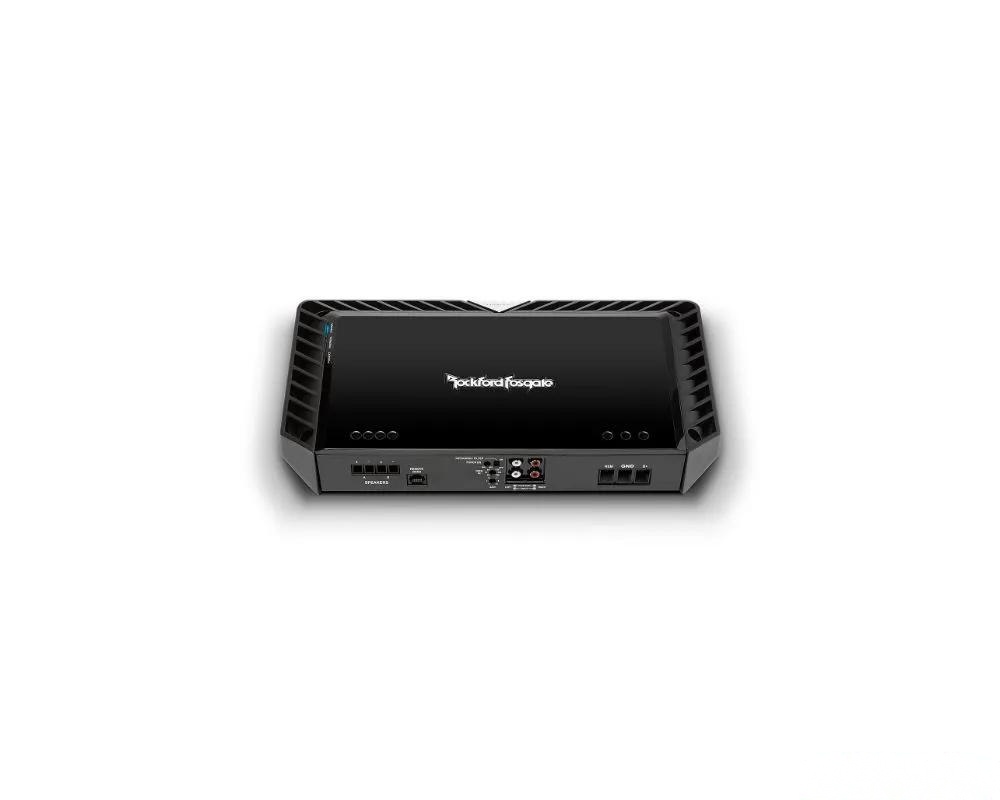

Rockford Fosgate Power 1,500 Watt Class-bd Constant Power Amplifier - Image 2
In Stock

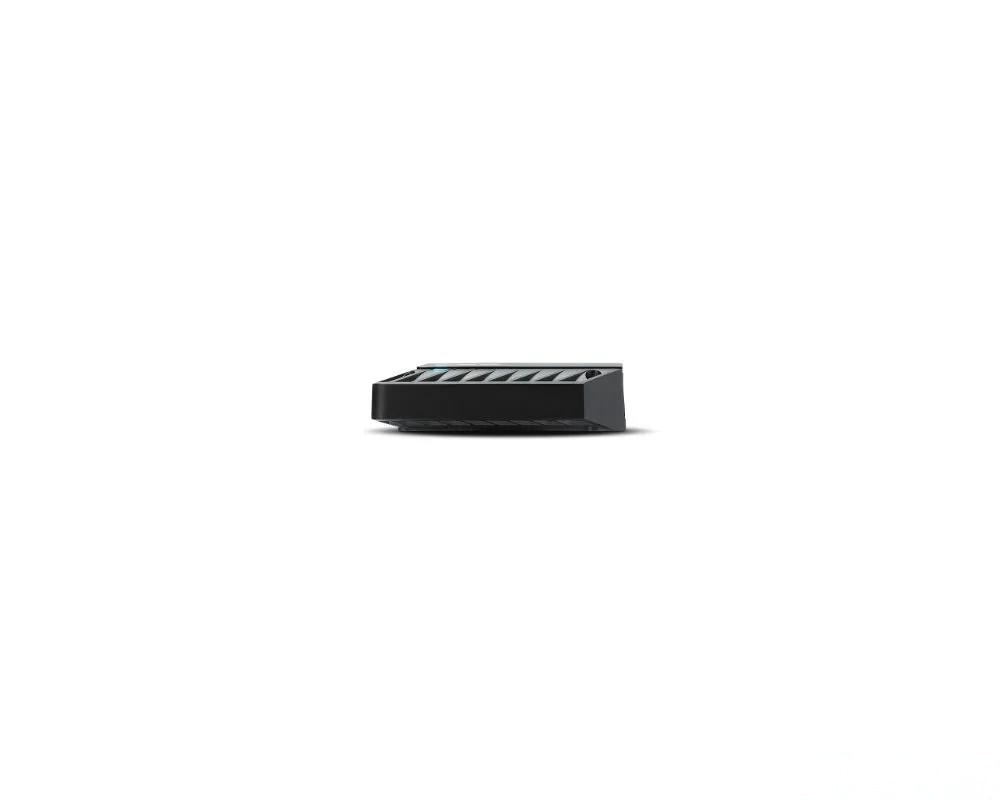

Rockford Fosgate Power 1,500 Watt Class-bd Constant Power Amplifier - Image 3
In Stock

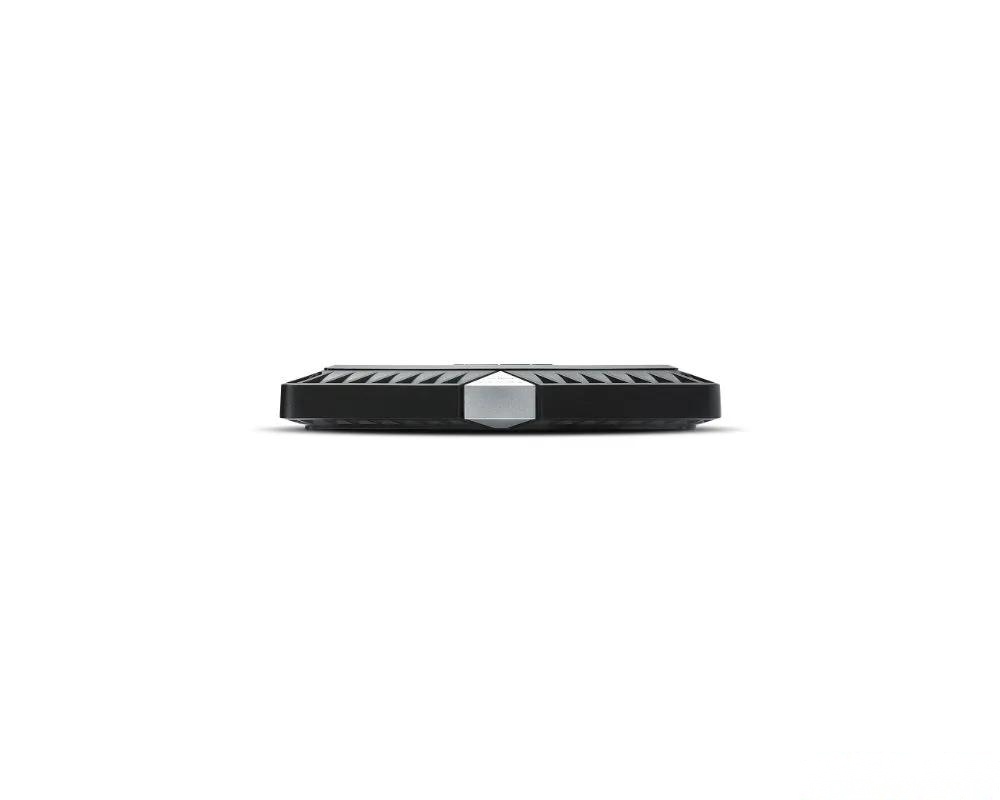

Rockford Fosgate Power 1,500 Watt Class-bd Constant Power Amplifier - Image 4
In Stock

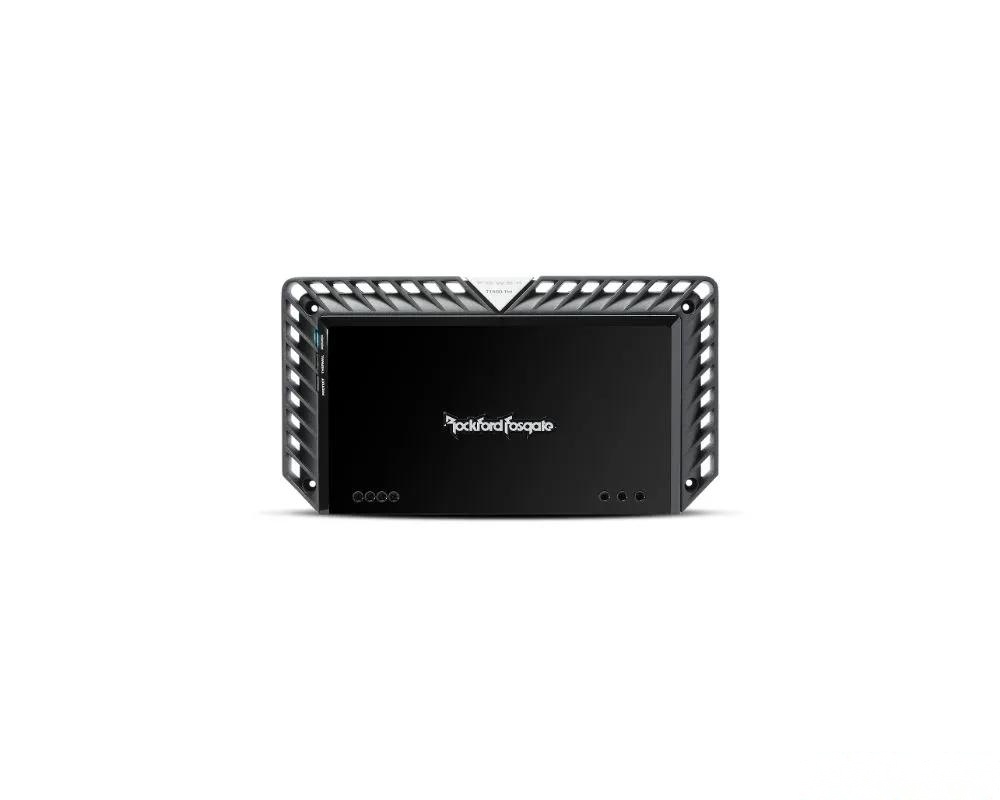

Rockford Fosgate Power 1,500 Watt Class-bd Constant Power Amplifier - Image 5
In Stock

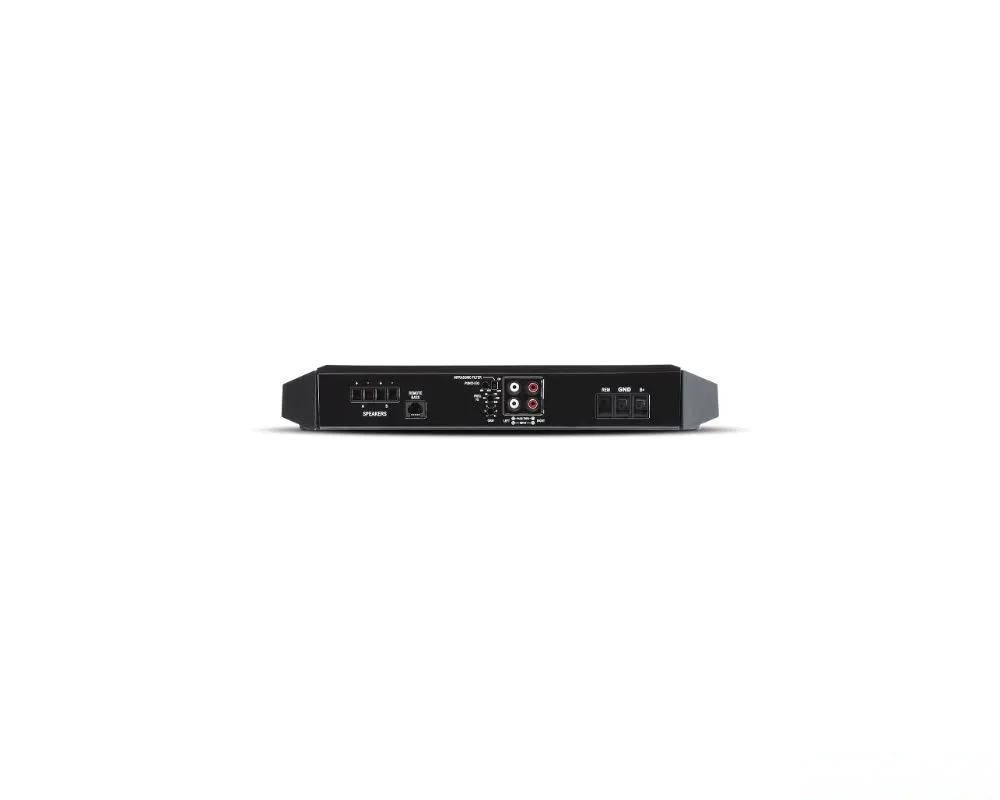

Rockford Fosgate Power 1,500 Watt Class-bd Constant Power Amplifier - Image 6
In Stock

Rockford Fosgate Power 1,500 Watt Class-bd Constant Power Amplifier

Brand: T1500-1bdCPExpert Support: Rockford Fosgate
(0 reviews)
$769.99
In Stock

View Details:

High-performance Auto Parts & Accessories with enhanced damping system
German engineering ensuring superior handling
2-year manufacturer warranty
Compatible with most popular vehicle models
1
Worldwide shipping (2-7 business days)
Secure payment options

Product Description

The Power T1500-1bdCP is a 1,500 Watt mono amplifier featuring Constant Power delivering up to 25% more power across all impedance loads. The frequency response of the T1500-1bdCP is optimized exclusively for use with subwoofers in cars and trucks.

The new Constant Power amplifiers are the most powerful amplifiers on the market PERIOD! The T1500-1bdCP is an amplifier for subwoofers based on the legendary T1500-1bd amplifier design with a proprietary "Constant Power" configuration delivering up to 25% more power (Watts) across all impedance loads. The listening experience is cleaner, louder and more impressive than ever before. At 1,500 watts, this monster will run any demo vehicle competing in Sound Pressure Level.

Features:
  • Infrasonic filter
  • 24dB/octave crossover
  • 4 Gauge power/ground connectors
  • MOSFET power supply
  • MOSFET output stage
  • RCA pass-thru outputs
  • Audiophile grade speaker connections
  • 2-Year Warranty
Specifications:
  • Number of Channels: 1
  • Total Power (Sum of Rated Power): 1500 Watts RMS
  • Rated Power (RMS Continuous Power):
    • 1000 Watts x 1 @ 4-Ohm
    • 1500 Watts x 1 @ 2-Ohm
    • 1500 Watts x 1 @ 1-Ohm
  • Dynamic Power (PVC/PowerCube®):
    • 1045 Watts x 1 @ 4-Ohms
    • 1549 Watts x 1 @ 2-Ohms
    • 1715 Watts x 1 @ 1-Ohm
  • Bridgeable: No
  • Frequency Response: 20Hz to 250Hz +/- 0.5dB
  • Input Sensitivity: 150 mV to 4 V
  • Circuit Topology Class: Class BD
  • Efficiency (average):
    • 86.2% @ 4-Ohm
    • 74.6% @ 2-Ohm
    • 63.0% @ 1-Ohm
  • Total Harmonic Distortion (THD+Noise):
    • 4-Ohm: <1.0%
    • 2-Ohm: <1.0%
    • 1-Ohm: <1.0%
  • Signal Input: Low level: 1 RCA pair
  • Signal Output: Low Level: 1 RCA pair
  • Tone Controls:
    • Bass: 0dB to +18dB @ 45Hz
    • Infrasonic Filter: -3dB @ 28Hz 12dB/Octave
  • Crossover Controls: Low-Pass (LP): 35-250Hz 24dB/octave Butterworth
  • Remote Controls: Optional Remote Punch Bass EQ (overrides built-in Punch Bass EQ)
  • Visual Indicators:
    • Power
    • Thermal
    • Protect
  • Power Wire Gauge: 4 AWG
  • Power Input Connector: Block
  • Speaker Wire Gauge: 8 AWG to 18 AWG
  • Speaker Output Connector: Screw terminal barrier strip
  • Cooling: Convection
  • Operating Voltage: 9 - 16 VDC
  • Recommended Fuse (not included): 200 A
  • Average Current Draw (13.8V Music): 100 A
  • Max. Current Draw (13.8V Sinewave): 200 A
  • Suggested Alternator: 100 A
  • Dimensions (H x W x D):
    • 2.14 x 8.14 x 14.91 (in)
    • 5.42 x 20.68 x 37.86 (cm)
  • Shipping Weight: 14.35 Lbs. (6.50 Kg.)
