Since day one, we've spearheaded the car audio revolution. Nothing's changed. Rockford Fosgate® is still the global leader in audio innovation, design and engineering, delivering an experience of passion through sound in a way the world has never felt before.

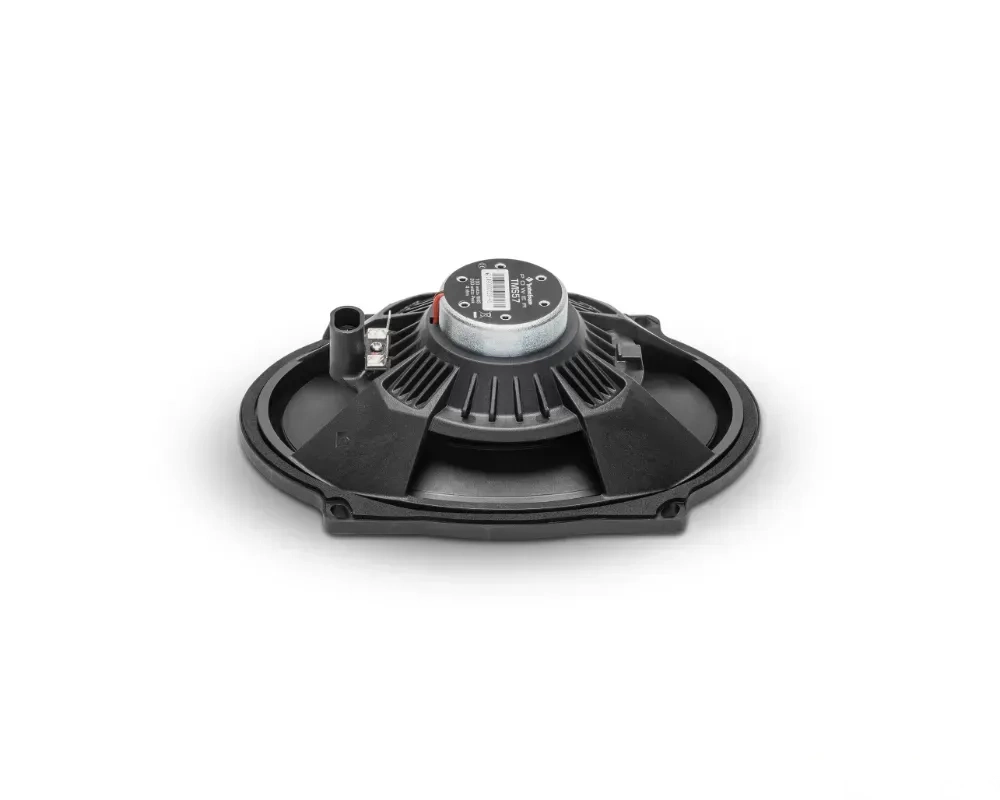

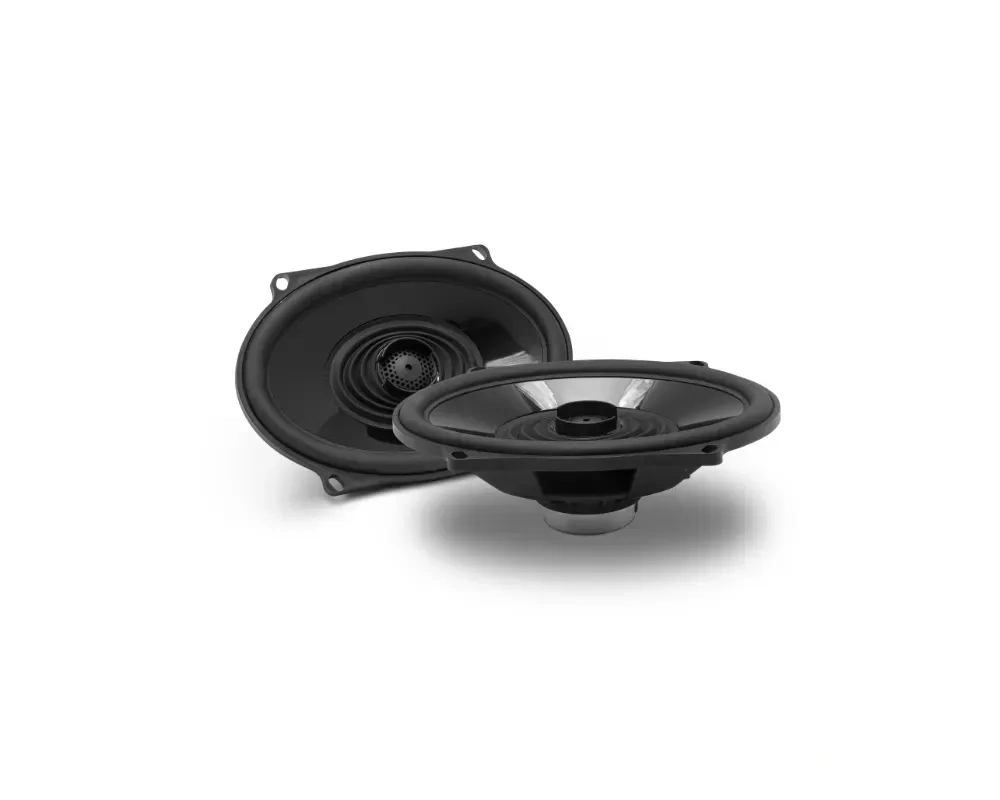

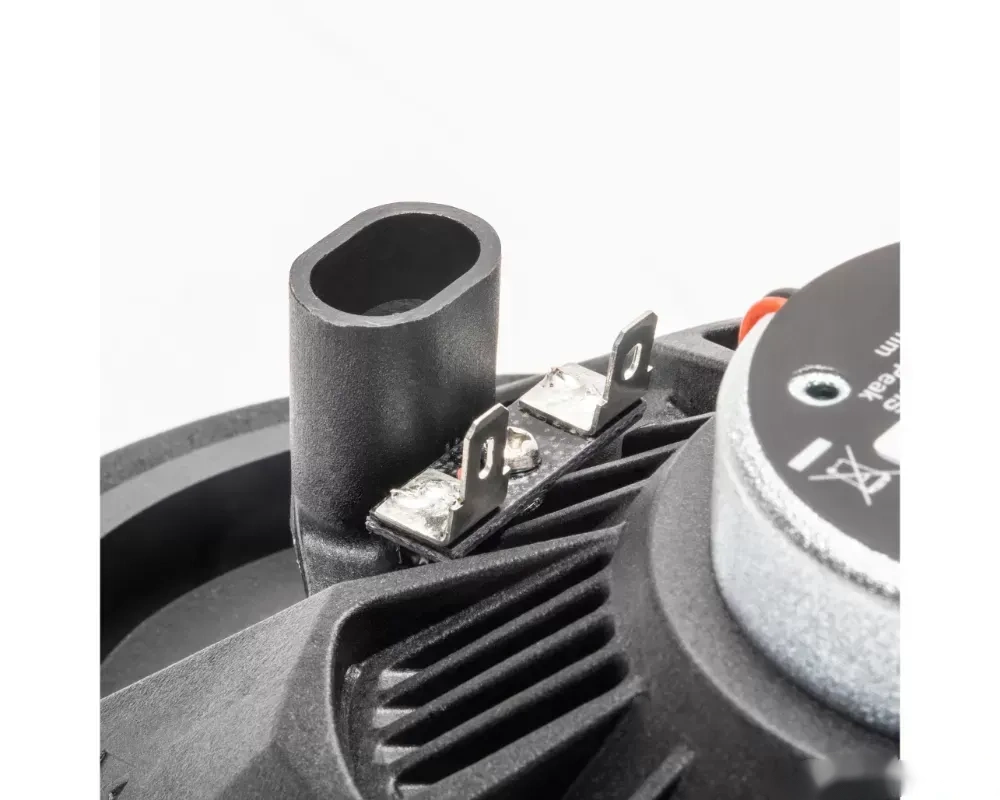

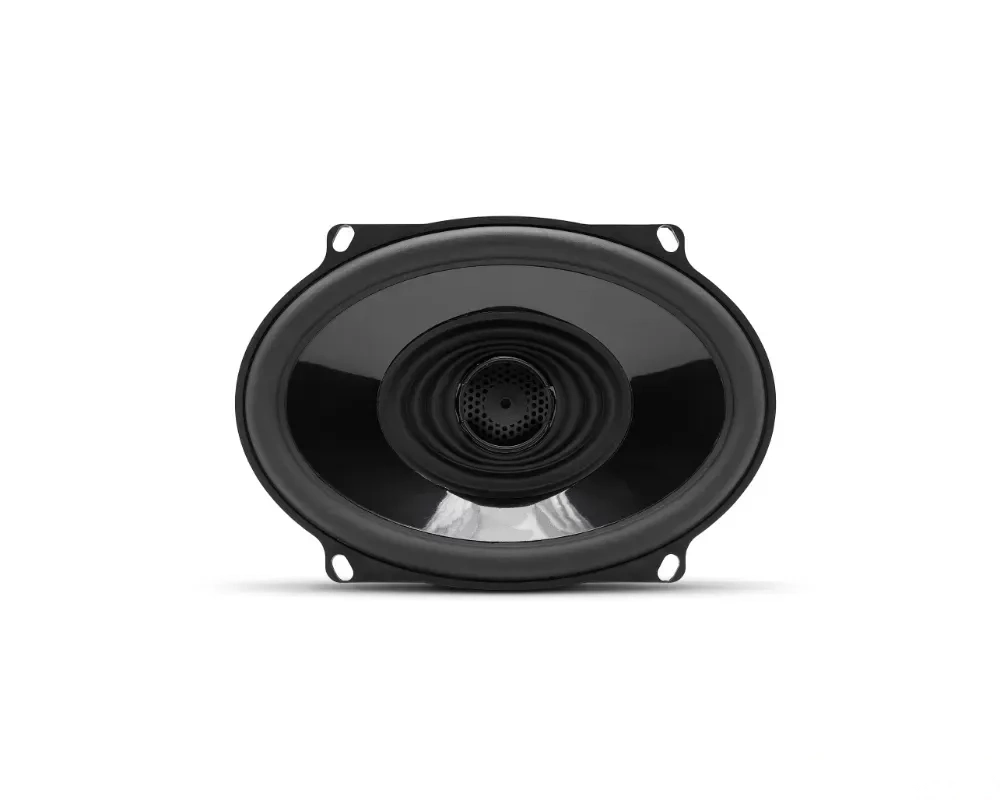

The TMS57 full range coaxial speaker is designed to replace existing 5"x7" 2-way coaxial speakers in factory equipped Harley-Davidson® "Boom! Audio" and "Boom! Audio Stage-I" bag lids. The TMS57 features a Neodymium motor structure driving a reinforced polypropylene cone with Santoprene surround. Highs are produced by an ultra-efficient 25mm dome tweeter with integrated phase plug and is made water/weather resistant with the addition of a Santoprene front isolation spider connecting between the tweeter housing and cone assembly. The speaker features two types of connectors, a standard set of terminals for 2013 and older generation motorcycles, and a new Deutsch style connector for 2014 and newer.

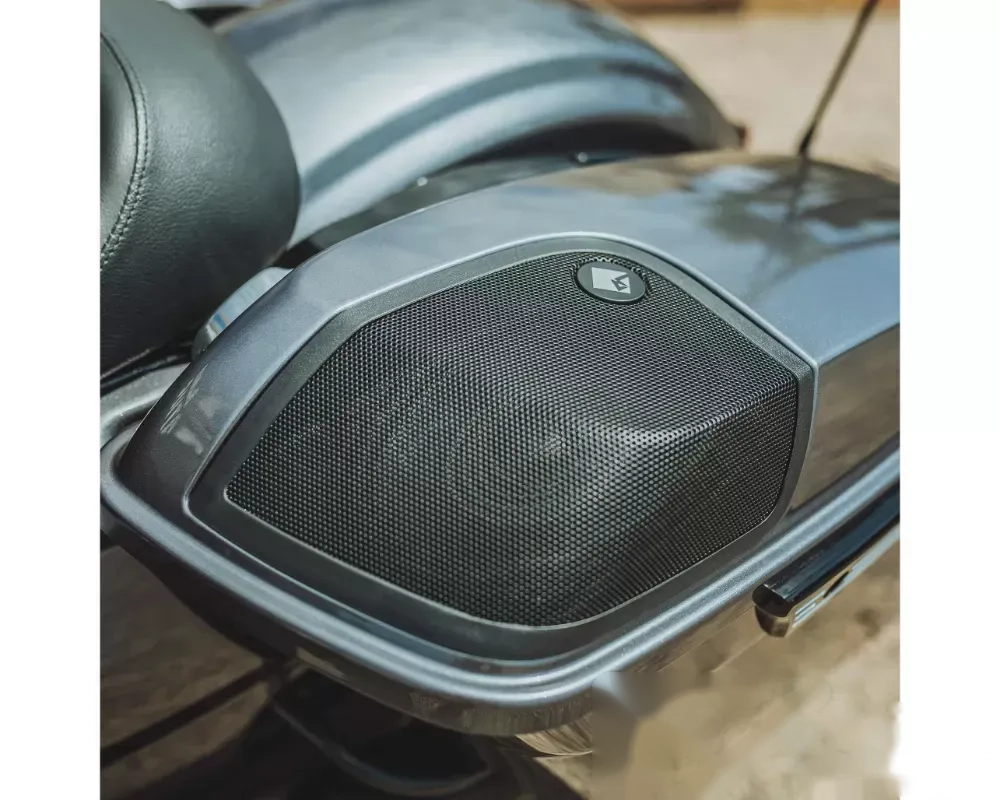

Do you enjoy hitting the road on your motorcycle but are tired of not enjoying your music because you can't hear it when riding? The Rockford Fosgate TMS series of motorcycle speakers solve that problem. The TMS57 full range coaxial speaker is designed to replace existing 5"x7" speakers in factory equipped Harley-Davidson® "Boom! Audio" and "Boom! Audio Stage-I" bag lids.

Features:

• Element Ready design that is weather and water resistant
• Carbon Fiber Reinforced Polypropylene Cone
• Poly?Cotton Spider
• Santoprene Front Isolation Spider
• Ultra?Efficient Neodymium Dual Magnet Motor Structure
• Santoprene VAST Surround
• Co?Molded Cone and Surround
• High Power 35mm Voice Coil
• Integrated 6dB Crossover with High Power Polyester Capacitor
• Integrated Spade Terminals
• Ultra?High Temperature Glass Reinforced Polymer Frame
• Ultra-Efficient 25mm Proprietary Film Dome Tweeter
• Neodymium Tweeter with Integrated Phase Plug and ASA Grill
• Low Profile Coaxial Tweeter Design
• Factory H-D® connector for plug-n-play operation
• Includes Self-Adhesive Aluminum Diamond-R Badges
• Discreet (Hidden) Tweeter Wire
• 2-Year Warranty

Note:

• Not compatible with "Boom! Audio Stage-II" systems. Please see Compatibility Tab for complete motorcycle fit guide.

Specifications:

• CEA-2031: CEA-2013 Guidelines
• Midrange Size (Nominal Diameter): 5" x 7"
• Speaker Type: 2-Way
• Midrange Mounting Depth: 2.2" (55 mm)
• Impedance: 4Ω
• Frequency Response: 61 Hz - 20 kHz
• Power Handling: 100 Watts RMS
• Sensitivity:
  • 89 dB (1w/1m)
  • 92 dB (2.8V @ 1m)
• Grille/Trim Ring Included: No
• Mounting Hardware: Yes
• Shipping Weight: 2.95 Lbs. (1.34 Kg)

Included In The Box:

• (2) TMS57
• (2) Aluminum Diamond-R Badges
