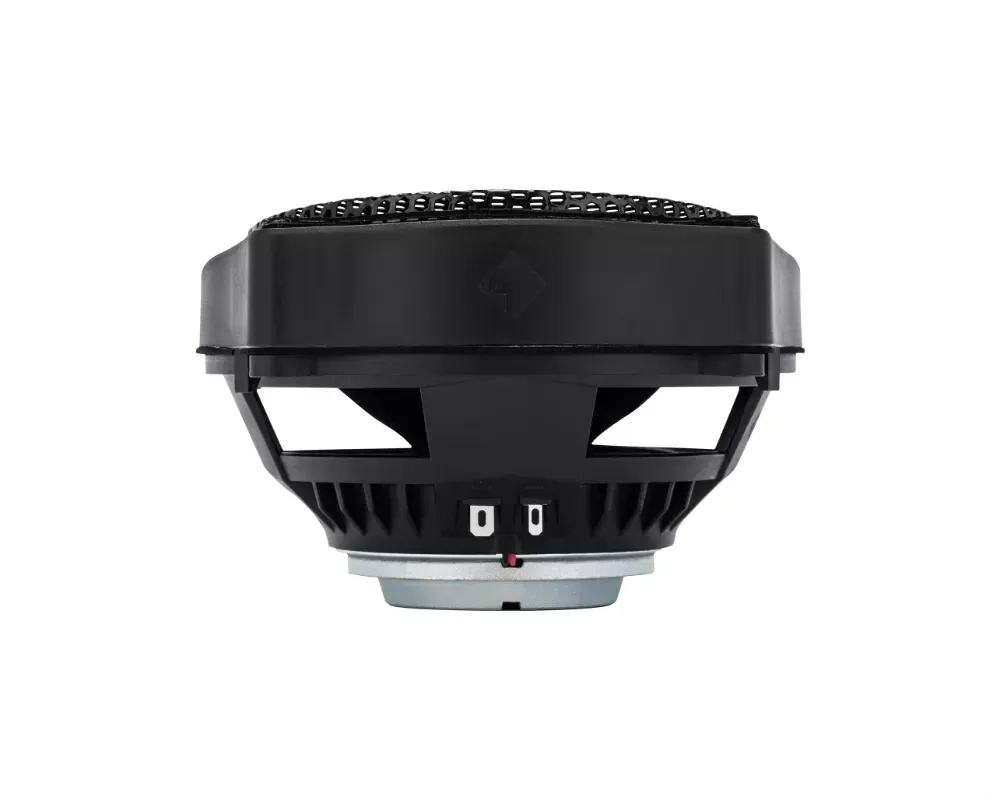

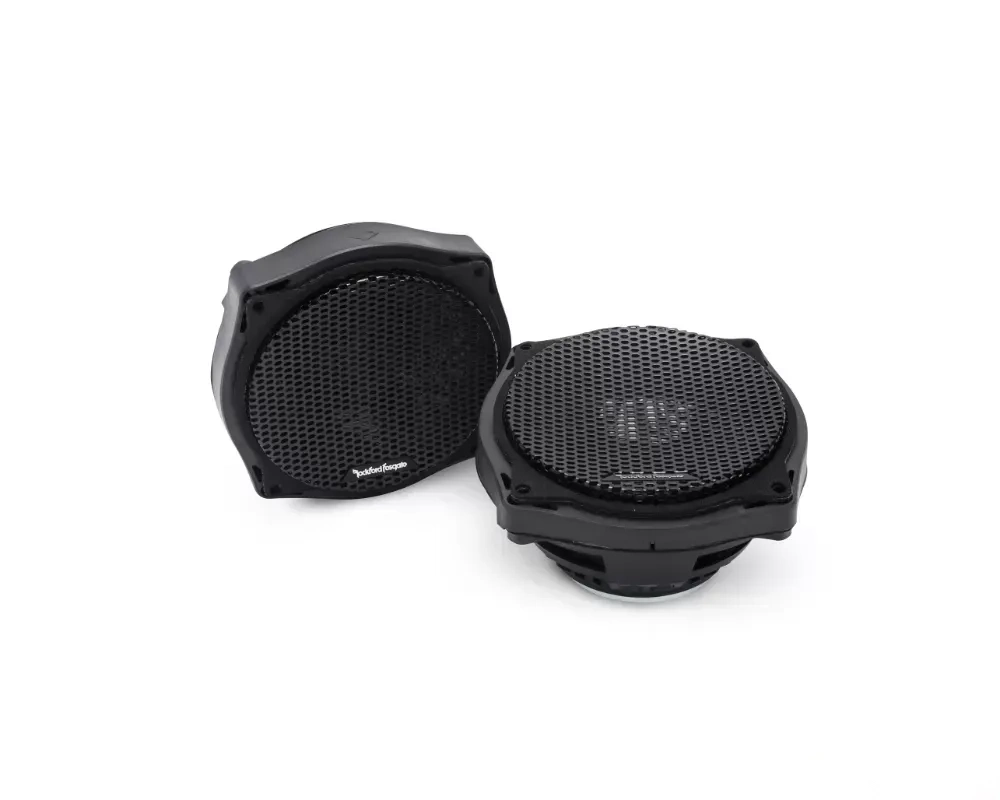

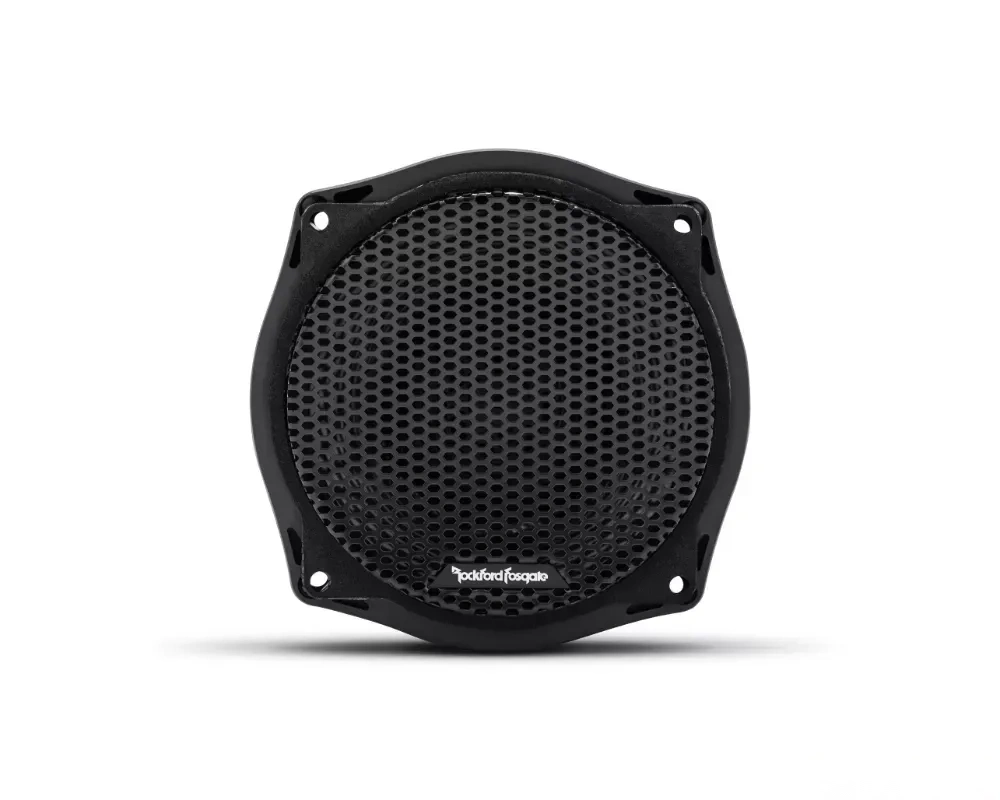

The TMS6SG is a full range coaxial speaker designed to fit the fairing speaker locations of select model Harley-Davison Electra Glide and Street Glide Motorcycles. It features a Neodymium motor structure driving a co-molded, reinforced polypropylene cone with Santoprene surround. It also features an ultra-efficient 25mm dome tweeter with integrated phase plug and is made water/weather resistant with the addition of a Santoprene front isolation spider connecting between the tweeter housing and cone assembly. The speaker mounts using the factory hardware and comes with new grille assemblies.

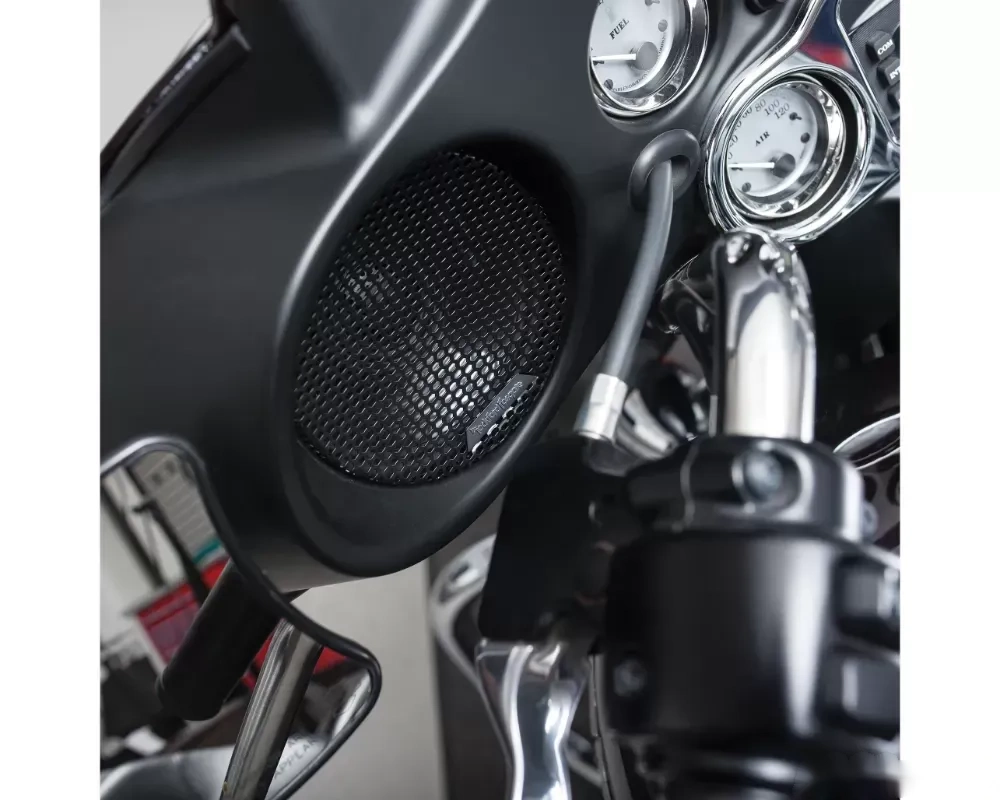

The TMS6SG full range coaxial speaker is designed for direct fitment applications on select model (see compatibility chart) Harley-Davidson Electra Glide and Street Glide motorcycles in the upper fairing locations. This speaker directly replaces the existing factory speakers using the factory mounting hardware and speaker connectors.

It features a compact Neodymium motor structure driving a co-molded, reinforced polypropylene cone with Santoprene surround This ensures that you get maximum frequency response and output in both the mid and low frequency range. It also features an ultra-efficient 25mm dome tweeter with integrated phase plug for crisp clear highs even at highway cruising speeds.

It is made water/weather resistant with the addition of a Santoprene front isolation spider connecting between the tweeter housing and cone assembly. The speaker requires no modification of the factory location and comes with new grille assemblies.

Features:

• Element Ready design that is weather and water resistant
• Neodymium Tweeter with Integrated Phase Plug and ASA Grill
• Carbon Fiber Reinforced Polypropylene Cone
• Ultra-Efficient 25mm Proprietary Film Dome Tweeter
• Santoprene VAST Surround
• Santoprene Front Isolation Spider
• Co-Molded Cone and Surround
• Poly-Cotton Spider
• High Power 35mm Voice Coil
• Ultra-Efficient Neodymium Ring Magnet Motor
• Ultra-High Temperature Glass Reinforced Polymer Frame
• Integrated Spade Terminals
• Integrated 6dB Crossover with High Power Polyester Capacitor
• Low Profile Coaxial Tweeter Design
• Discreet (Hidden) Tweeter Wire
• Designed for 1998-2013 Harley-Davidson® Electra Glide® / Street Glide® Fairing Locations
• 2-Year Warranty

Specifications:

• Nominal Impedance (Ohms): 4-Ohm
• Midrange Size (Nominal Diameter): 6.5"
• Frequency Response (Hz): 56 Hz - 20 kHz
• Power Handling (MAX): 150 Watts MAX
• Power Handling (RMS): 75 Watts RMS
• Crossover: Built-in tweeter crossover
• Sensitivity (dB @ 1W/1M): 91 dB
• Voice Coil Diameter (in/mm): 1.40" (35.6 mm)
• Sensitivity (dB @ 2.83V/1M): 94 dB
• Grille/Trim Ring Included: Yes
• Speaker Type: 2-Way Coax

Included In The Box:

• (2) Speakers
• (2) Speaker Grilles
• (1) Hardware Pack
• Mounting Hardware: Yes

Note:

• Installation on CVO and Screaming Eagle models are not plug-n-play and will require modification
