Rywire 13B Haltech Military Specification Engine Harness w/EV14 Inj/Denso 5th/6th Inj/Delphi Press Sensor/Bosch Knock

The FD3S 13B harnesses are warrantied and guaranteed to work, we provide excellent installation phone support and troubleshooting to ensure this reputation for quality, however they are non-refundable.

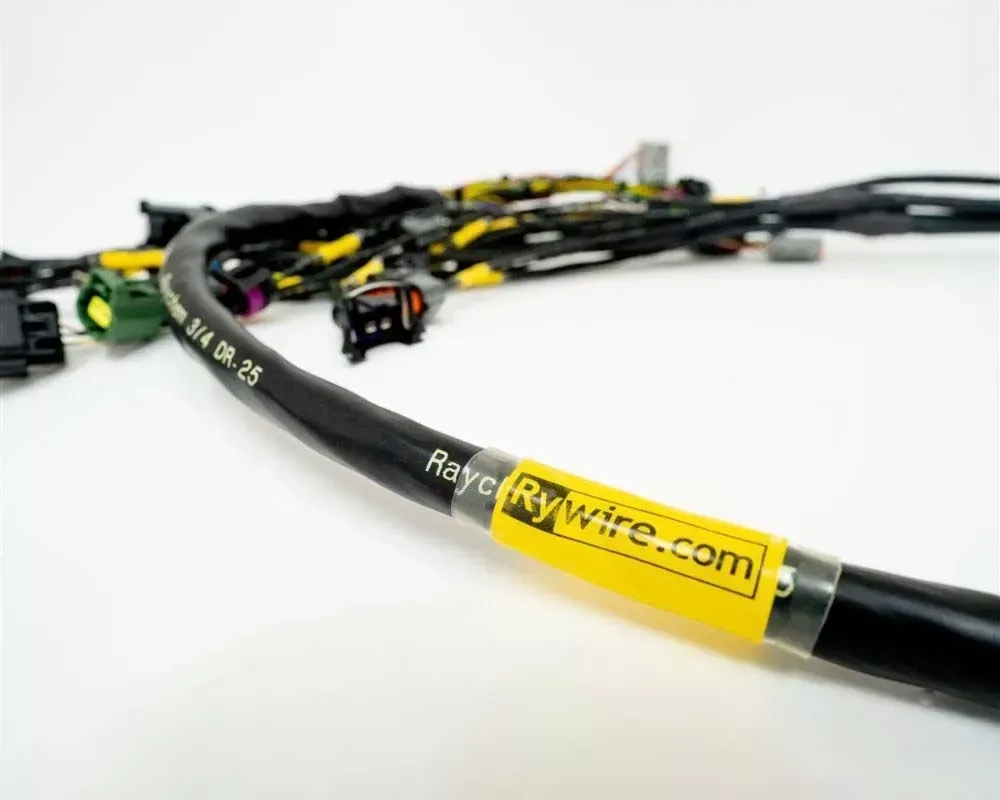

This is a wire-tuck style Mil-spec engine harness using high quality tefzel wire and DR-25 sleeving.

This is made for a 13B engine

The harness has connections for:

• OEM Coolant Temp (for Computer)
• OEM Idle Air Control Valve
• Knock Sensor - Bosch style
• Injectors 1-4+2 (6 total) EV14 Style
• 2 Grounds (one per rotor)
• OEM Coolant for gauges
• OEM Throttle Position Sensor (TPS)
• Intake Air Temp (IAT -Bosch style)
• 4 transmission connections
• OEM Cam Angle Sensors (2 total)
• OEM Oil monitoring pump
• Boost solenoid - EFR Series style

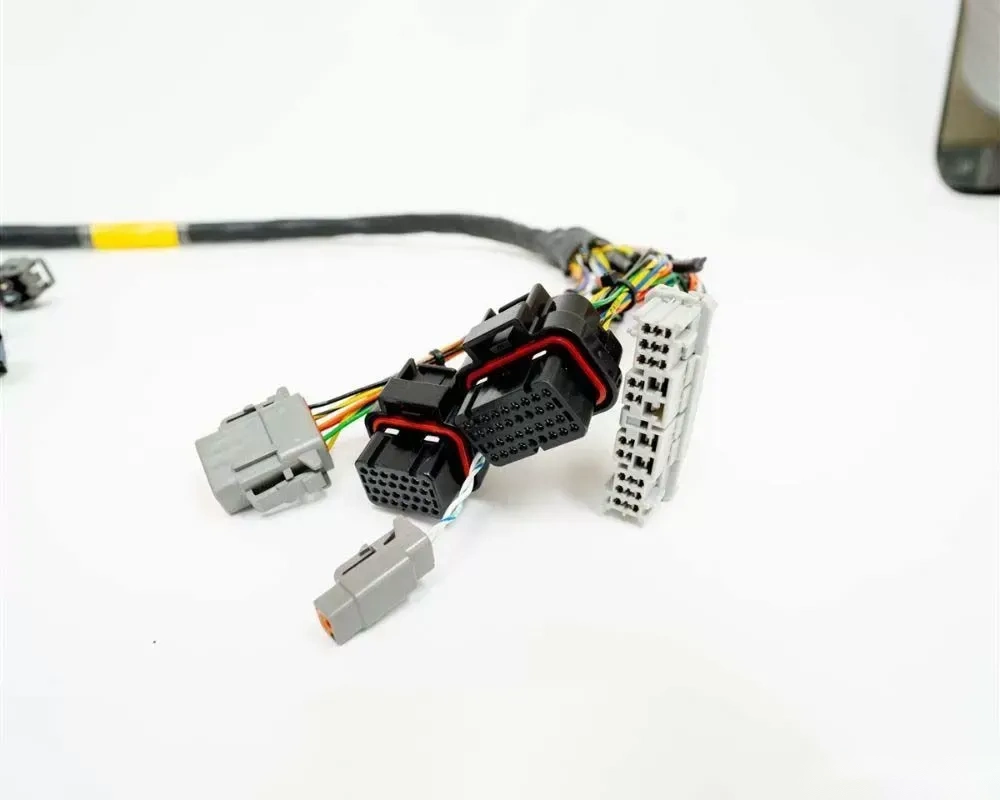

• Haltech Elite Computer plugs with Canbus Deutsch connector
• Oil Pressure - Delphi style
• Fuel Pressure - Delphi Style
• Flex Fuel Sensor- GM style
• OEM Fuel temperature
• Deutsch Ignition Auxiliary connector (IGBT plug-and-play sub-harness)
• IACV
