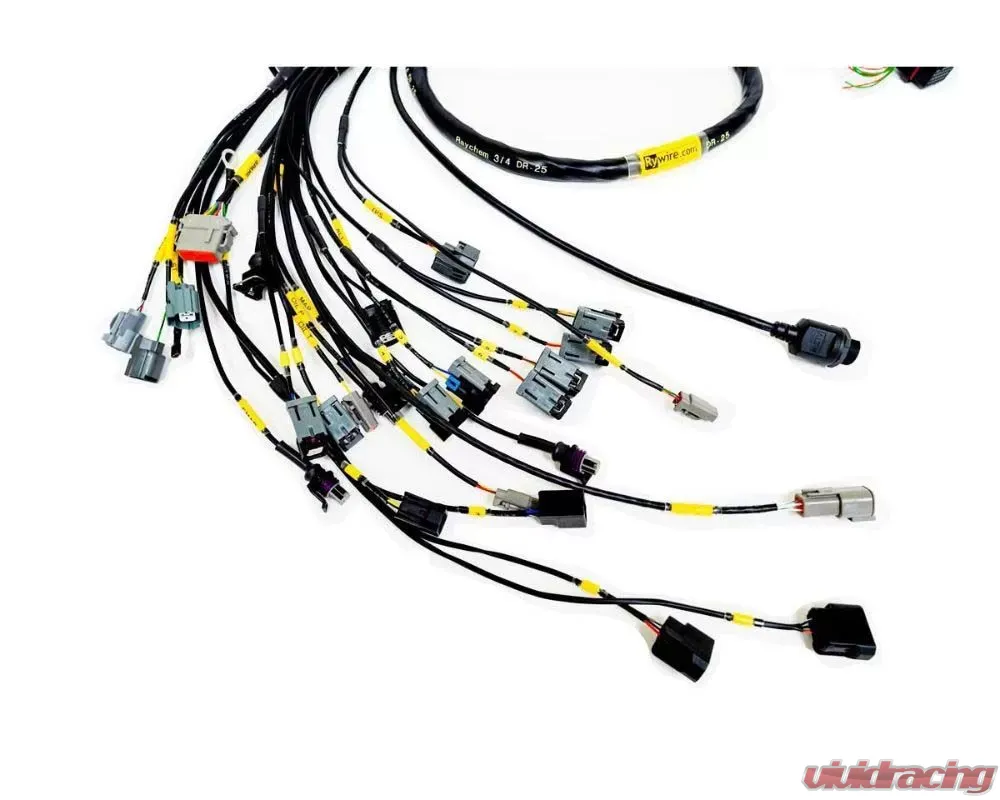

Rywire Engine Harness (w/FuelTech 550 ECU) Honda K-Series

Description

Rywire Engine Harness w/OBD2 Alt/EV14 Inj/AEM IAT/MAP (Adapter Required) (w/FuelTech 550 ECU) Honda K-Series

The Rywire K-Series FuelTech 550 engine harness is a universal, fully populated race loom that incorporates all the essential functionality of the fastest Front wheel drive Hondas of today!

If you are building a Front (or all) wheel drive race car and need the data and flexibility of the top computers on the market, then this is the harness for you. The Fueltech EMS offers some of the best functionality on the market today, and this harness packs a punch, allowing all the necessary terminations. We have worked with some of the fastest front wheel drive race cars in the world and got there feedback. The harness we are offering allows for plenty of expansion, and pre-terminated connectors exactly where you need them.

*THESE HARNESSES ARE PRIMARILY EQUIPPED FOR THE FT550 & FT600; IF YOU’RE USING AN FT450 YOU WILL HAVE A LOT OF EXTRA CONNECTORS THAT WILL NOT BE USED.*

Pre-terminated for:

• COMPUTER Plug Selections: Fueltech 550
• Programming Cable Ethernet, or UBS depending on computer choice
• Lambda/ Uego Bosch 4.9 LSU Wideband O2 sensor, Lambda over CAN, (Depends on computer chosen)
• AIR TEMP AEM
• OIL TEMP AEM
• Fuel Pressure AEM
• Oil Pressure AEM
• Exhaust Backpressure (EMAP) AEM
• Manifold Pressure (MAP) AEM
• Throttle Position (TPS) Factory Honda K series
• Coolant Sensor (ECT) Factory Honda K series
• VTEC Factory Honda (2002+)
• Speed Sensor (VSS Hydro) Factory Honda K series
• Reverse Lights Factory Honda (2002+)
• Starter Trigger Factory Honda
• Coils Factory Honda K-series (Smart Coils)
• Ground Ring Terminals for Coils and Computer Factory Honda
• Knock Sensor Bosch 0261231188 (2 wire EV1)
• Alternator Factory Honda (OBD0/1 or OBD2 styles available) Default is OBD2 (1996+)
• Injectors (8 Injector) Bosch EV14 Default (ID 1050X)
• Boost Solenoid (MAC solenoid) Rywire (Rywire 3 port or 4 port kit) DTM 2 pin
• FLEX FUEL capable Rywire (Rywire flex fuel kit ) If wired into AUX connector.
• 12 pin Engine Bay AUX expansion (Contains power, 5V, sen ground, CAN, and 6 AV/DIG inputs)
  5 pin Cabin AUX expansion (Contains 5V, sen ground, and 3 AV/DIG inputs)
• Trigger (CAM/CRANK) K series RSX (2002+)
• DBW (Drive-By-Wire) capable We can create AUX expansion to wire in the DBW T.B. and Pedal
• CAN BUS connectivity Powered CAN (connects devices such as loggers, dashes, and gauges)

Chassis adapter options:

This harness can plug and play into any chassis
This fuse box allows for a quick and easy install into any chassis, off road car, sand rail, buggy, gutted circuit or drag race car.

The engine harness, fuse/relay box, and switch panel are all PLUG AND PLAY making your life much easier!
