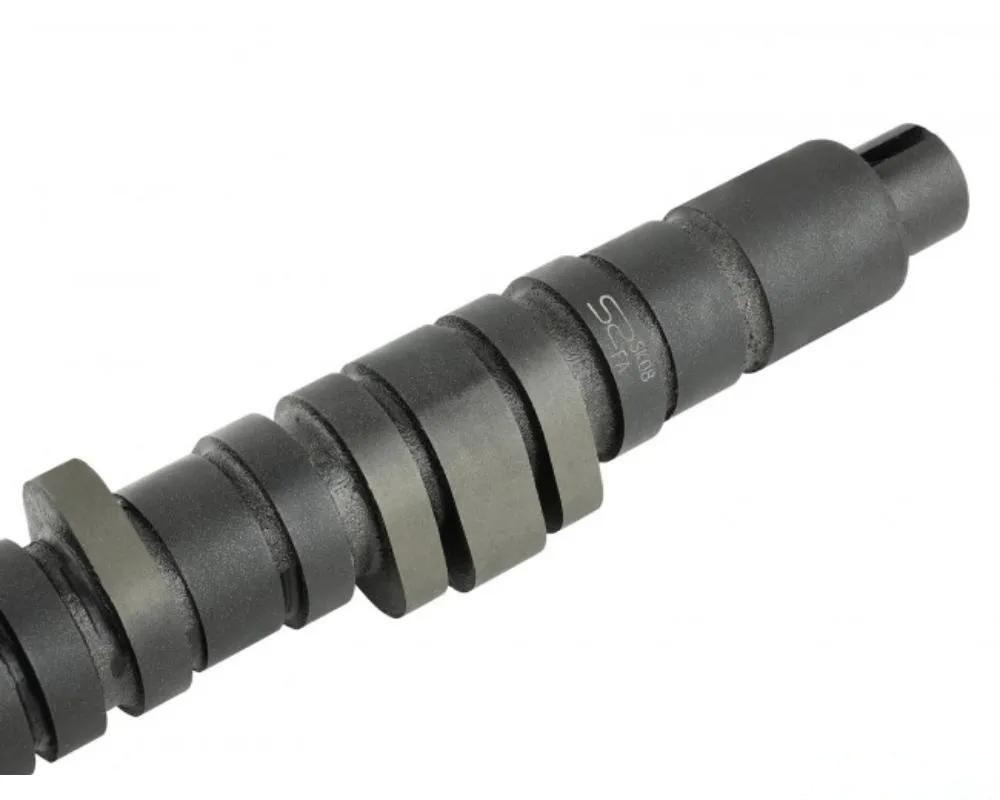

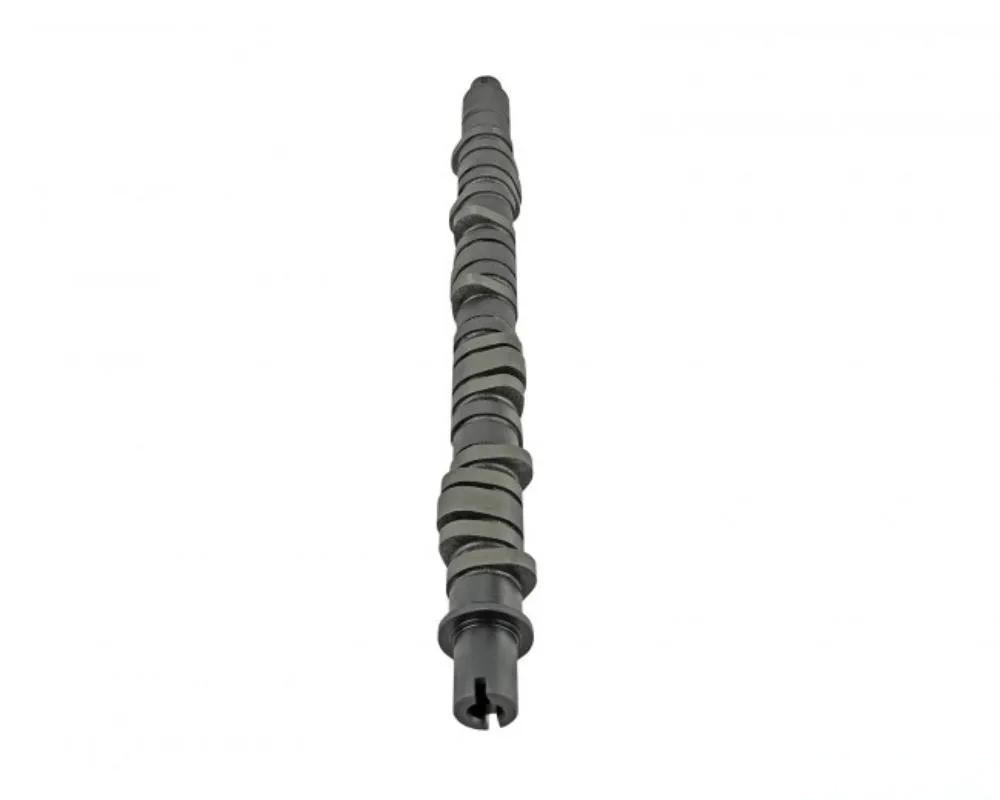

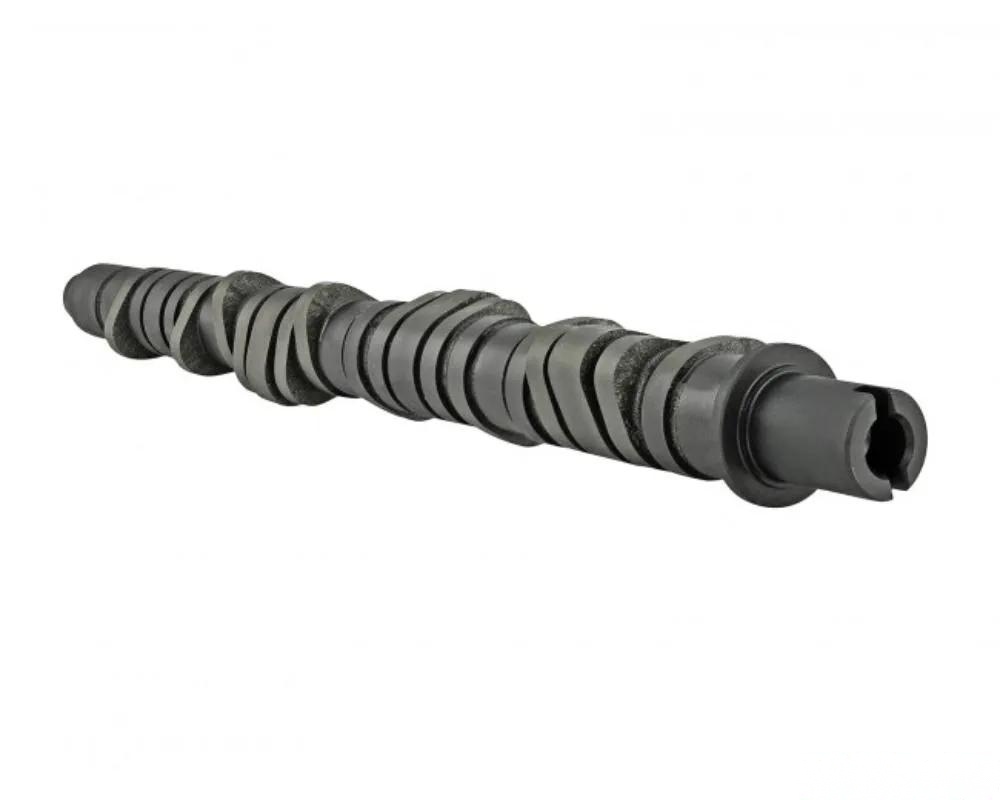

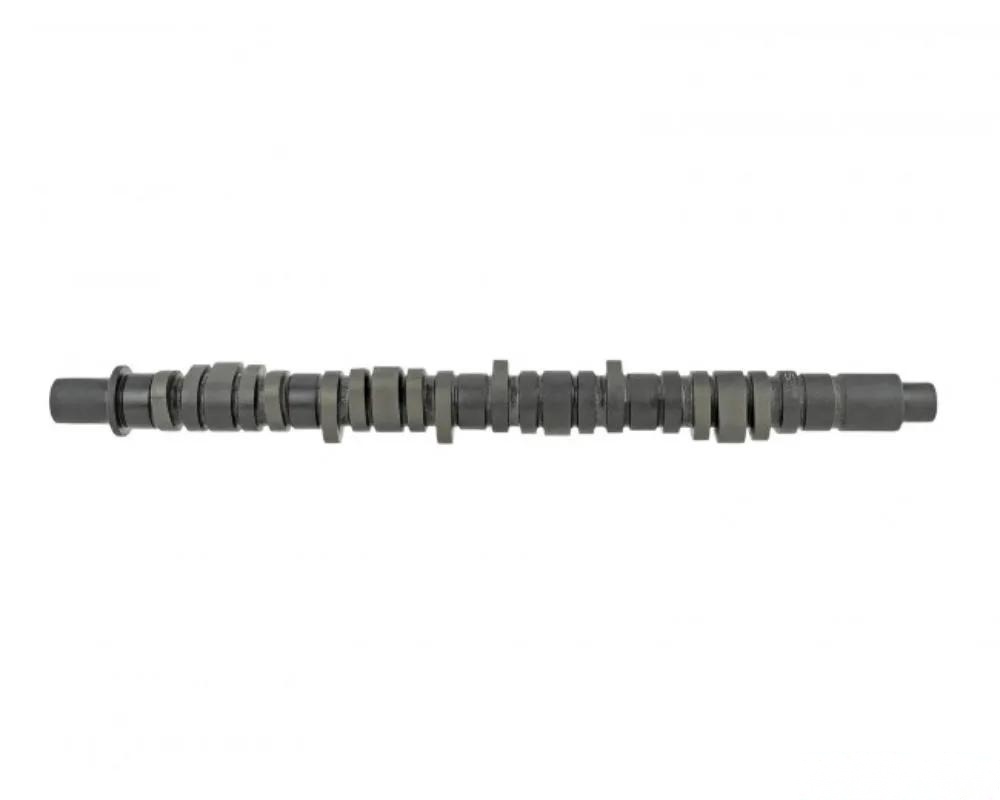

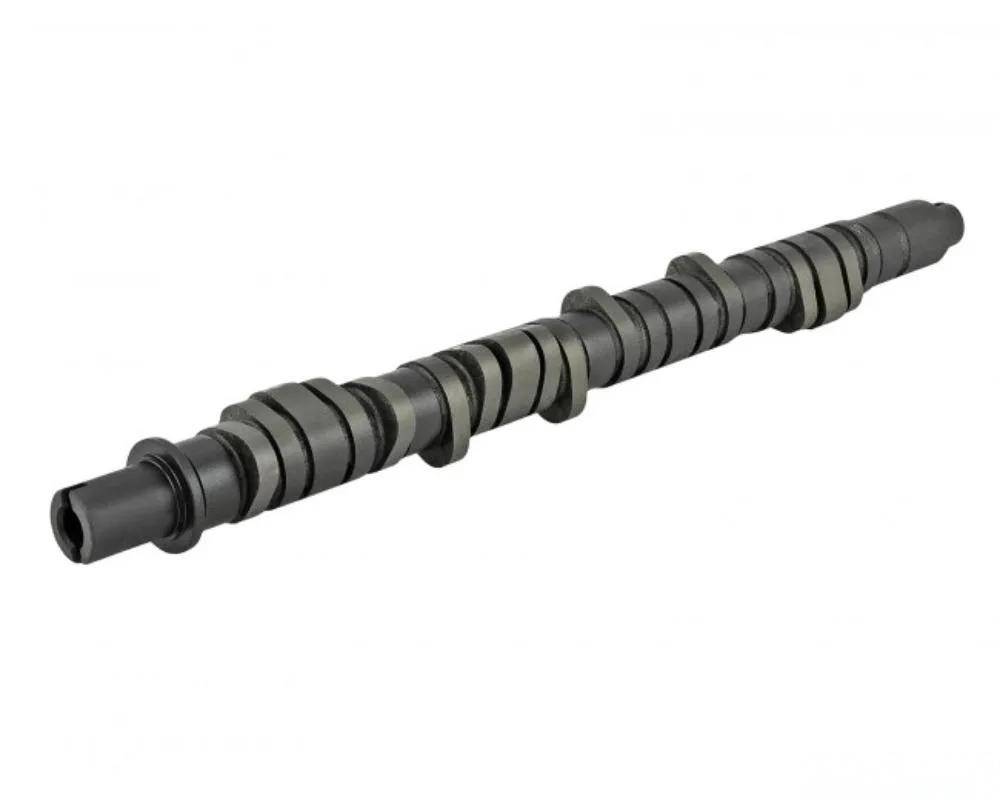

Skunk2 Racing's Tuner Stage 4 Camshaft is designed as a performance upgrade to highly modified vehicles running the D15/ D16 VTEC engines. The Stage 4 camshaft will outperform all other Skunk2 Tuner offerings from idle to redline with no loss in drivability. A great match for max effort NA and Turbo engine builds. Tuner Stage 4's require a simple valve spring and retainer upgrade due to the additional lift, duration and increased RPM range.

Our Tuner Stage 4's incorporate Skunk2 Racing's cutting-edge Fast Ramp and AMAX features, which are responsible for increasing overall performance, producing unmatched response from idle to redline. You can expect optimized mid-range and top-end horsepower/torque with peak power moved up the RPM band, producing a seamless VTEC crossover!

Fast Ramp - The same technology used in Formula One racing, where seat timing is reduced, which results in additional cylinder pressure and more torque but without compromising valve-train longevity.

AMAX - A Skunk2 design that simply maximizes the area under the lift curve but without compromising reliability or valve-train stability. Skunk2's profiles feature more duration than competitors' at lifts above 1mm, resulting in greater efficiency and more power.
Camshaft Specifications:

• Intake - 254? / .476" (12.09mm) lift @ 0.000" lash
• Exhaust - 254? / .460" (11.68mm) lift @ 0.000" lash
• Valve Clearance - Intake: 0.008" / Exhaust: 0.010"

Fitments:

• Honda Civic (1.6L CX/DX/EX/GX/HX/LX/Si) 1988-2000
• Honda Del Sol (1.6L S/Si/VTEC) 1993-1997
• Honda CR-X (1.6L Base/Si/HF) 1988-1991

Notes:

• Skunk2 Adjustable Cam Gear Required for fine tuning
