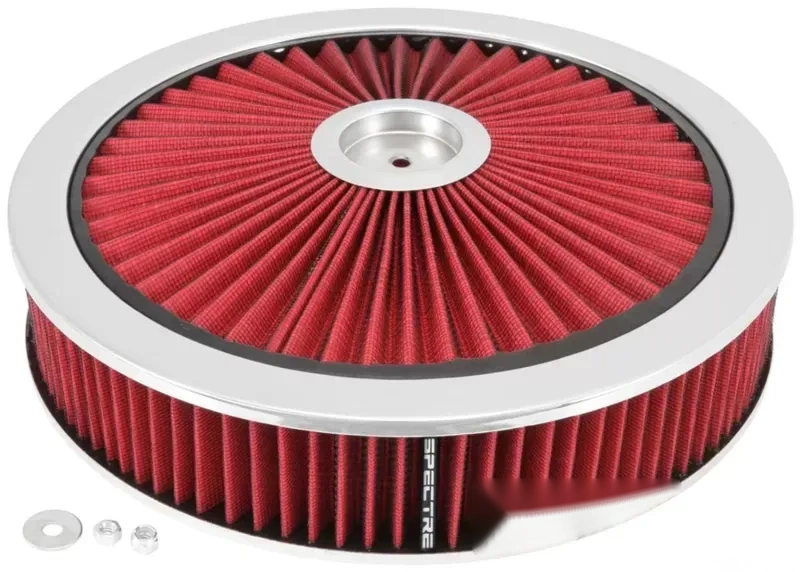

Spectre's 14 inch by 3 inch tall Extraflow air filter assembly is designed to fit throttle body injection assemblies and carburetors with a 5-1/8 inch neck flange. Featuring a zinc plated 1-1/4 inch drop base for increased hood clearance, this assembly requires 2.9 inches of clearance above the carb flange when installed. This assembly includes an ExtraFlow filter lid, which increases filter area and allows it to outperform standard closed lids. Available with Red synthetic media, our Extraflow assemblies are designed to provide greater performance than ordinary paper filters by increasing air flow into the engine.

Features:

• Red synthetic media
• Fits carburetors and TBI throttle bodies with 5-1/8 inch inlet
• 14 by 3 inch tall assembly with Extraflow filter lid
• Zinc plated 1-1/4 inch drop base for increased hood clearance
• Requires a minimum of 2.9 inches above carburetor flange when installed
• Use part number HPR4820 AccuCharge kit to clean and re-oil the filter
• May require use of an air cleaner riser, part number SPE-4954, for some applications to clear fuel inlets or an electric choke mechanism

Specifications:

• Mounting Hardware Included: Yes
• Air Filter Material: Non-Woven Synthetic
• Inlet Diameter: 5.125 In (130 Mm)
• Air Filter Inside Diameter: 12.406 In (315 Mm)
• Air Filter Height: 3 In (76 Mm)
• Air Filter Color: Red
• Overall Height: 2.906 In (74 Mm)
• Warranty: 90 Days
• Air Filter Shape: Round
• Neck Flange: 5.125 In (130 Mm)
• Replacement Filter: 48022
• Style: Round
• Top Material: Chrome
• Top Style: Extraflow
• Product Style: Spectre Custom Assembly
• Weight: 4.7 Lb (2.1 Kg)
• Product Box Height: 4.7 In (119 Mm)
• Product Box Length: 14.8 In (376 Mm)
• Product Box Width: 14.7 In (373 Mm)
• Color: Red
• Washable: Yes
