SSR wheels are always put through JWL testing before they are used on the street or track.

SSR has always focused on manufacturing precise, lightweight, and strong wheels and will continue this tradition for years to come.

Spoke: In order to achieve overwhelming lightness, the cross-sectional area of the spokes is designed to be small. The top surface is particularly thin so that it looks light. The ribs arranged in a one-step drop position ensures rigidity firmly.

Center Part: By making the center cap optional, the thickness of the hub has been thoroughly suppressed. The meat is scraped from the face and the mounting surface, and the thickness is thinned to the limit, achieving overwhelming lightness.

Face: For weight reduction, the spokes connecting the rim and the center are designed to be the shortest according to the brake size and clearance of the target model. We have a lineup of faces with different depths, including SMI, CV, and SC.

Rim Profile: The flow forming method, which realizes the performance equivalent to forging, is thinner in the inner rim by the FFT-R manufacturing method, which is further sophisticated with SSR's proprietary technology. In addition, by reviewing the profile of the rim, we are further reducing the weight.

Based on strict strength analysis, cut the little meat on the back of the spoke without missing it. In addition, the shot peening process was added after cutting. This process strengthens the surface and improves strength. The cross-sectional area can be reduced by 13%, and the weight has achieved a significant weight reduction of about 400g per wheel.

Features:

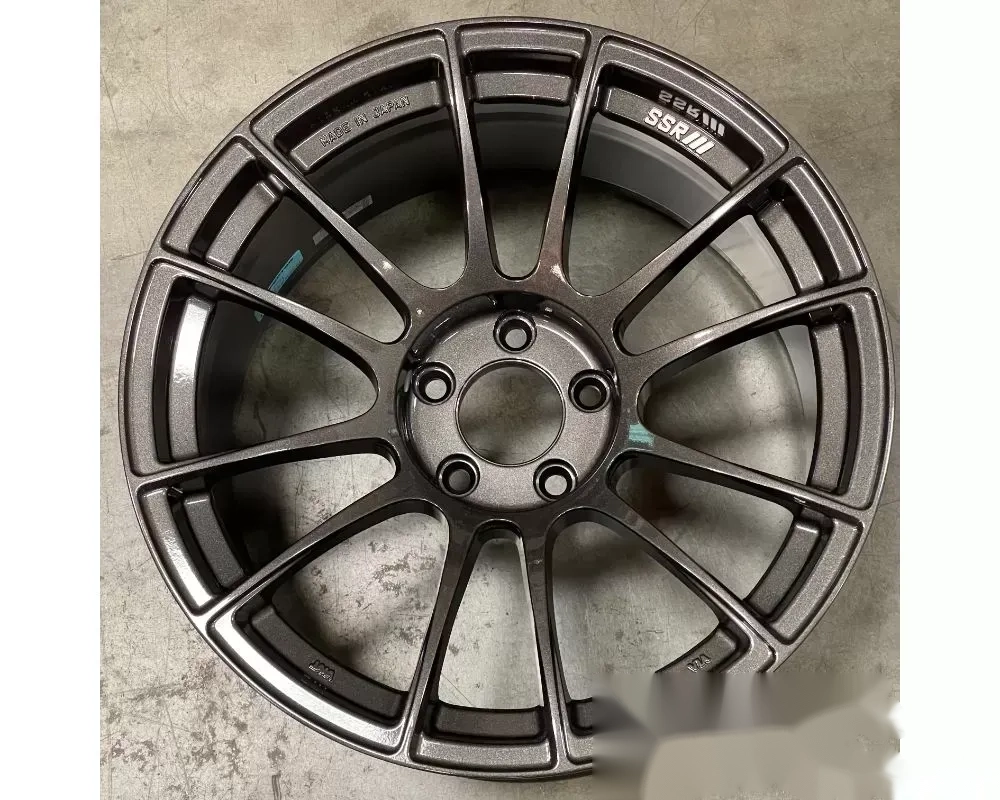

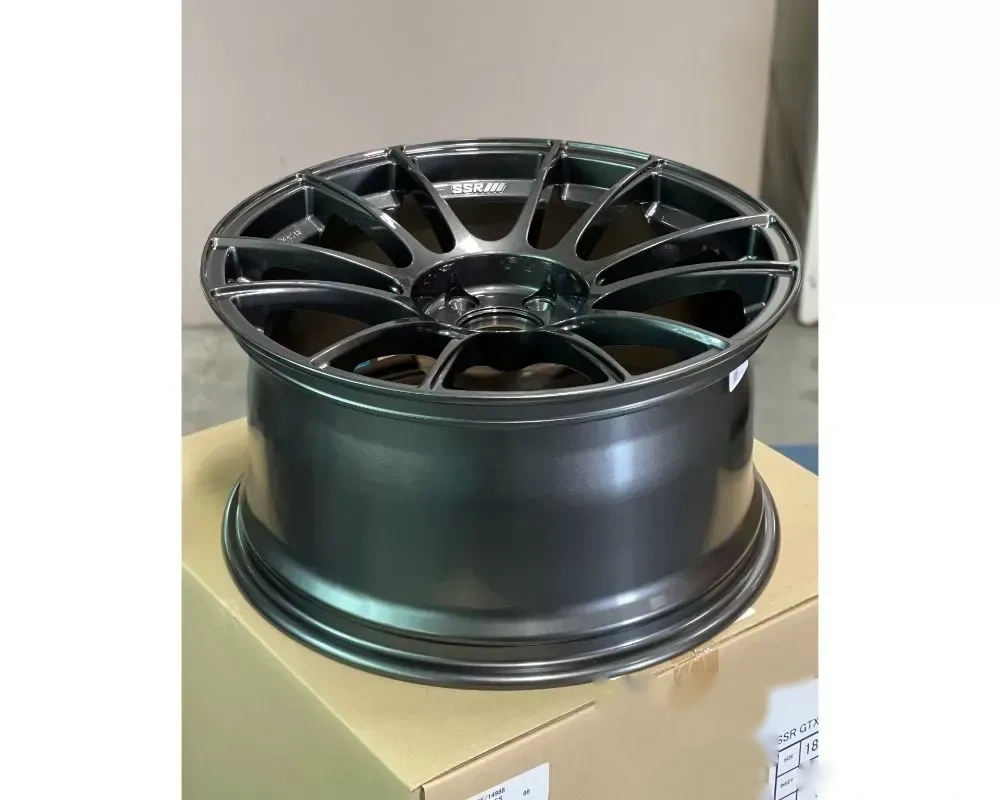

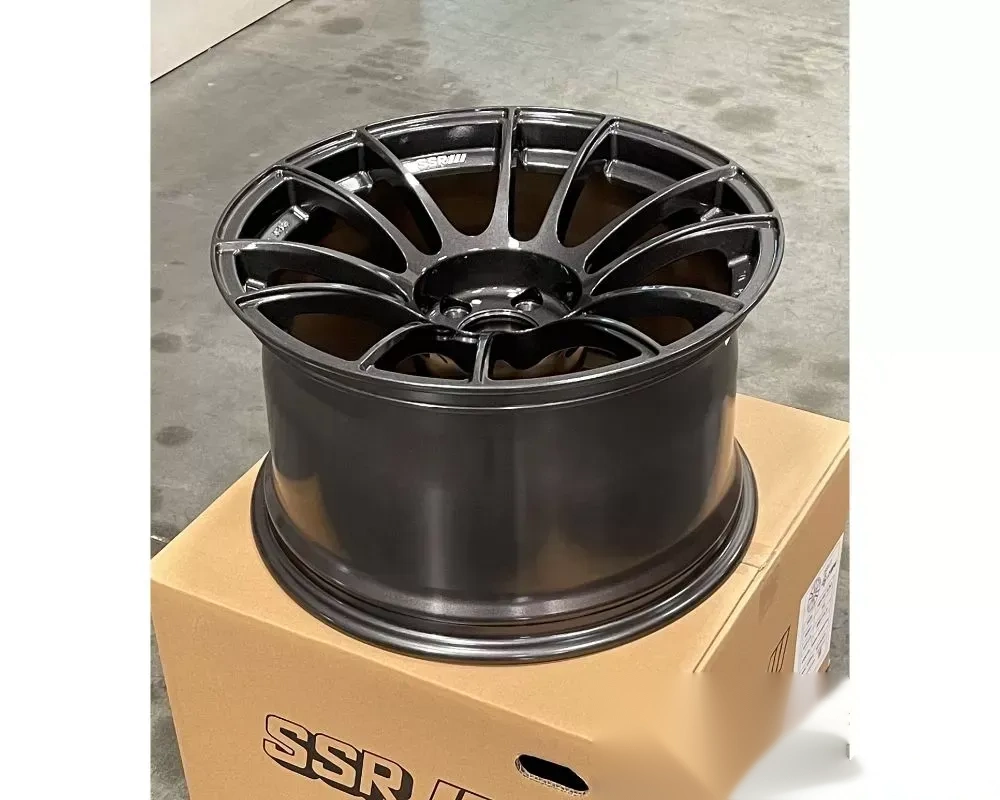

• 1 Piece Flow Formed Wheel
• Size: 17x8.5
• Bolt Pattern: 5x114.3
• Offset: 45mm
• Wheel Face Type: B
• Color: Dark Gunmetal
• Split Spoke Design
• Included Parts: Aluminum Air Valve Black (PARTS013) x1 pc | FFT-R Decal (PARTS249R) x1 pc

Notes:

• Wheels sold individually.
