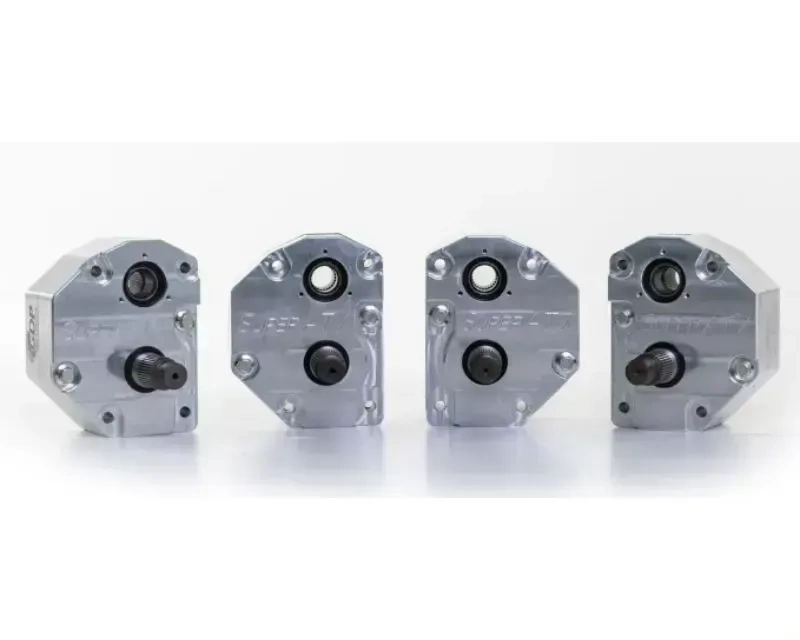

SuperATV's GDP 4" Portal Gear Lift for the Kawasaki Teryx is Geared for All. Choose from 15% or 30% gear reductions and cast or billet aluminum housings so you can optimize for the riding you love most.

If you move up to a 30% gear reduction, you'll be ready to take on bigger, sloppier mud holes. That boost in torque means you can dominate monster bounty holes without getting stuck. The lift gives you room for bigger tires so you can turn your Teryx into the ultimate party wagon. When you're done with the mud, a 30% gear reduction can get you through trails and rocks just as easily.

Put 4" portals and a 30% gear reduction on your machine and get the torque you need crawl over rocks like they're not even there. You'll have the clearance to get over anything without scratching up your skid plate, and you'll have room to run bigger tires. These portals are built for boulders.

Get 4" portals and a 15% gear reduction on your Teryx and take on the trail less traveled. Creek crossings and hills won't know what hit them when you roll up with all that torque. It brings out your UTV's true power.

Get 4" portals and a 15% gear reduction on your Teryx. You'll have clearance to get over the ditches and debris around your property and you'll have the gear reduction to push through ruts and ditches easily all while towing a trailer full of tools. Plus, you'll still have enough speed to cruise down the road.

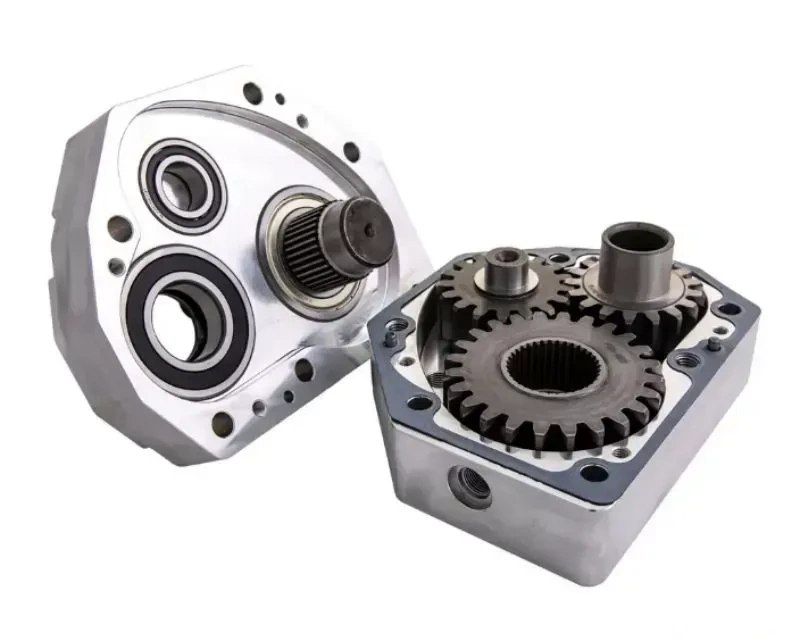

Our gears are precision ground and made with 9310 billet steel alloy for high strength and high speed. That means they're cool and quiet even when you're hammering down the throttle on the road, and they have strength to withstand every ride.

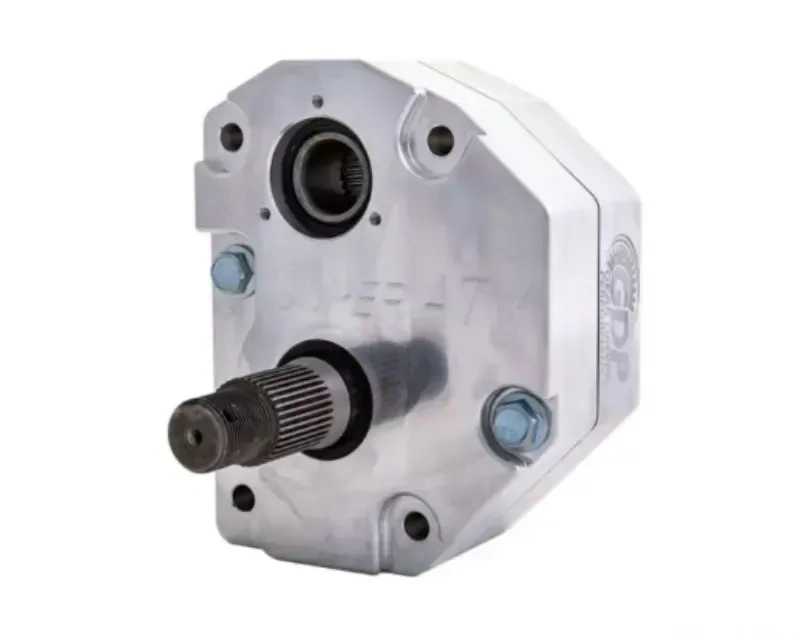

Try as you might, you won't find housings stronger than what we use on our GDP portals. Our housings are smarter, stronger, and more reliable by design. So whether you choose cast or USA-made and CNC-machined 6061 billet aluminum, you're getting housings that offer unmatched strength and dependability. We've got the experience and the riders on the trail to back it up.

• Our housings are reinforced in all the right places
• They're built with better oil flow and gearing forces in mind
• There are no gimmicks and no vents because vents do more harm than good-we know because we tested them

Advanced Gaskets and Seals

Whether you go with cast or billet, both housings use:

• Advanced gaskets with excellent oil resistance and a lower deterioration rate than Kevlar gaskets
• A sealed input gear and double-lipped output seal
• 100% sealing coverage throughout so you can forget about oil leaks

Features:

• Available with billet or cast aluminum housing
• Cool, quiet, precision ground gears made from 9310 alloy billet steel
• Increases width by 4 in. per side (8 in. total)
• 1.5 in. diameter 4340 hardened steel drive shaft
• No leak bearings and seals
• Universal hub fits all major bolt patterns
• Comes complete with all hardware, backing plates, brakes lines and instructions
• Frame Stiffener included

Wheel Requirements:

• 14" or larger wheel required
• 14" wheels cannot exceed 4-1/2" backspacing
• 15" and larger wheels cannot exceed 5" backspacing
• Not compatible with dual beadlock wheels

Fitment:

• Kawasaki Teryx 4 2012+
• Kawasaki Teryx 2014+

Notes:

• Not compatible with SuperATV AtlasPro Boxed A Arms
• Wheels need to have a center hole of at least 3.25" (82.55mm) or require a 1" wheel spacer.
• Factory Teryx wheels are hub centric. When using our Portal Gear Lifts you MUST run aftermarket lug centric wheels. Almost all aftermarket wheels are lug centric.
• With Big Lift Kit
