SuperATV's GDP 4" Portal Gear Lift for the Can-Am Outlander is Geared for All. Choose from 15% or 30% gear reductions and cast or billet aluminum housings so you can enhance your ride in exactly the right way.

If you move up to a 30% gear reduction, you'll be ready to take on bigger, sloppier mud holes. A 30% gear reduction gives you a big boost in torque so you can keep your wheels turning no matter how deep the mud gets. That extra torque also means you can upgrade to huge tires that bring out the true potential of your machine. When you're done with the mud, a 30% gear reduction can send you through trails and rocks just as easily.

Put 4" portals and a 30% gear reduction on your machine and get the torque you need crawl over rocks like they're not even there. You'll have the clearance to get over anything without scratching up your skid plate, and you'll have room to run bigger tires. These portals are built for boulders.

Put 4" portals and a 15% gear reduction on your machine and see how fast you can go. You'll fly up dunes like they're flat ground and keep your speed up for those wide-open valleys.

Get 4" portals and a 15% gear reduction on your Outlander and take on the trail less traveled. You'll keep that high speed and those technical hills or washouts will be a breeze with that extra torque. It'll show you what your ATV can really do.

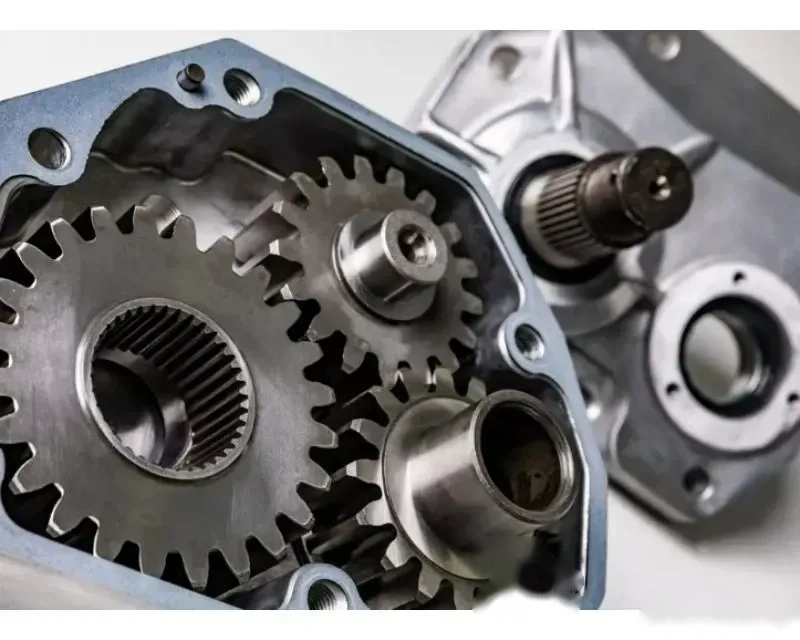

Our gears are precision ground and made with 9310 billet steel alloy for high strength and high speed. That means they're cool and quiet even when you're hammering down the throttle on the road, and they have strength to withstand every ride.

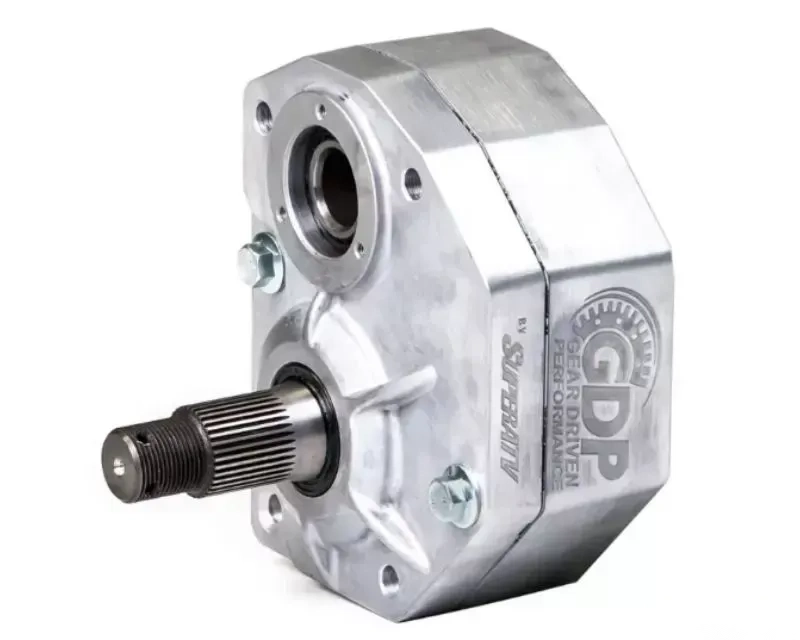

No portals in the world have housings stronger than what you'll find on GDP portal gear lifts. We've put in years of research and testing to bring you housings that are strong enough to keep up with even the most rugged off-road lifestyle. So whether you go with cast or our USA-made 6061 billet aluminum with a sleek CNC-machined finish, just know you're getting portal housings that truly are second to none.

• Our housings are reinforced for gear retention and optimized for oil flow
• Advanced steel alloy backing plates are stronger than chromoly
• Enhance with Portal Blood-gear oil formulated for GDP Portals
• There are no gimmicks and no vents because vents do more harm than good-we know because we tested them

Advanced Gaskets and Seals

Whether you go with cast or billet, both housings use:

• Advanced gaskets with excellent oil resistance and a lower deterioration rate than Kevlar gaskets
• A sealed input gear and double-lipped output seal
• 100% sealing coverage throughout so you can forget about oil leaks

Features:

• Available with billet or cast aluminum housing
• Cool, quiet, precision ground gears made from 9310 alloy billet steel
• Increases width by 4 in. per side (8 in. total)
• 1.5 in. diameter 4340 hardened steel drive shaft
• No leak bearings and seals
• Universal hub fits all major bolt patterns
• Comes complete with all hardware, backing plates, brakes lines and instructions
• Includes trailing arms

Wheel Requirements:

• 14" or larger wheel required
• Cannot exceed 5" backspacing
• Not compatible with dual beadlock wheels

Fitment:

• Can-Am Outlander 500 2013-2015
• Can-Am Outlander 500 DPS 2013-2015
• Can-Am Outlander 500 XT 2013-2015
• Can-Am Outlander Max 500 2013-2015
• Can-Am Outlander L 500 2015
• Can-Am Outlander L Max 500 2015
• Can-Am Outlander 570 2016+
• Can-Am Outlander Max 570 2017+
• Can-Am Outlander Pro 570 2017+
• Can-Am Outlander 650 2013-2018
• Can-Am Outlander Max 650 2013-2018
• Can-Am Outlander 650 DPS 2013-2018
• Can-Am Outlander Max 650 DPS 2013-2018
• Can-Am Outlander 650 XT 2013-2018
• Can-Am Outlander Max 650 XT 2013-2018
• Can-Am Outlander 650 XT-P 2013-2018
• Can-Am Outlander Max 650 XT-P 2013-2018
• Can-Am Outlander 800R 2013-2015
• Can-Am Outlander 800R DPS 2013-2015
• Can-Am Outlander 800R XT 2013-2015
• Can-Am Outlander 800R XT-P 2013-2015
• Can-Am Outlander Max 800R 2013-2015
• Can-Am Outlander Max 800R DPS 2013-2015
• Can-Am Outlander Max 800R XT 2013-2015
• Can-Am Outlander Max 800R XT-P 2013-2015
• Can-Am Outlander 850R 2016-2018
• Can-Am Outlander 850 DPS 2016-2018
• Can-Am Outlander 850 XT 2016-2018
• Can-Am Outlander Max 850 2016-2018
• Can-Am Outlander 1000 2012-2018
• Can-Am Outlander Max 1000 2012-2018

Notes:

• Works with SuperATV 6 Inch Lift Kit
• Wheels need to have a center hole of at least 3.25" (82.55mm) or require a 1" wheel spacer.
• This product can impact machine operation. Customer and/or user is responsible for ensuring that this product is compatible with their machine as currently configured, properly installed, and understands any impact this product has or might have on the machine's operation.
