Gen 3 Portals are Geared for All

SuperATV's GDP 4" Portal Gear Lift for the Polaris RZR RS1 is Geared for All. What do we mean by that? Our 4" portal lift is available with 15% or 30% gear reductions. You can get exactly what you need for the way you ride.

Perfect for Mud

Get a 30% gear reduction and start flingin' mud. With a massive boost to torque, you can turn bigger tires that chew through the thickest bounty holes. When you gear down and go big, your machine will turn into a mud monster. Plus, with a 30% gear reduction you can still use it on the road and tear up trails and rocks.

Perfect for Rocks

Put 4" portals and a 30% gear reduction on your machine and get the torque you need crawl over rocks like they're not even there. You'll have the clearance to get over anything without scratching up your skid plate, and you'll have room to run bigger tires. These portals are built for boulders.

Perfect for Trails

Get 4" portals and a 15% gear reduction on your Polaris RZR RS1 and take on the trail less-traveled. You'll keep that high speed and leave your friends in the dust when you hit a hill or washout. It'll bring out your UTV's full potential.

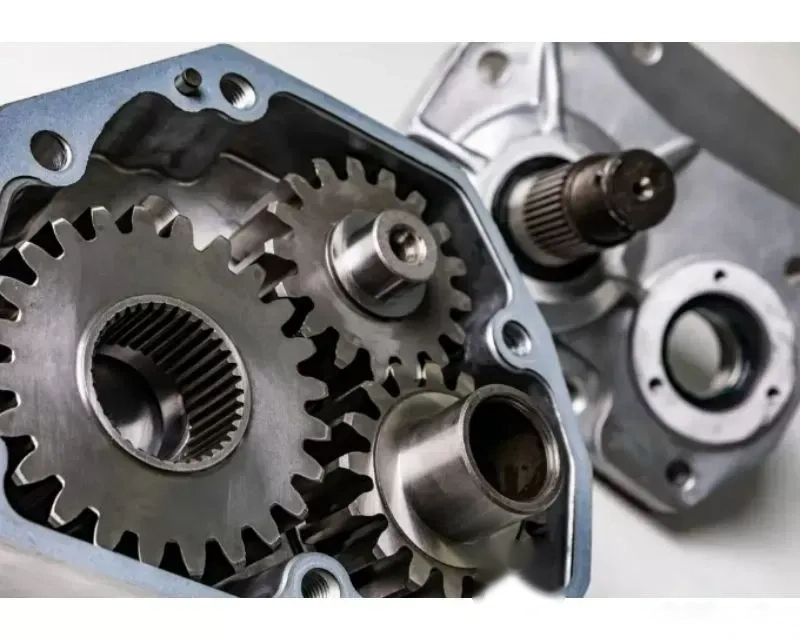

Better Gears

Our gears are precision ground and made with 9310 billet steel alloy for high strength and high speed. That means they're cool and quiet even when you're hammering down the throttle on the road, and they have strength to withstand every ride.

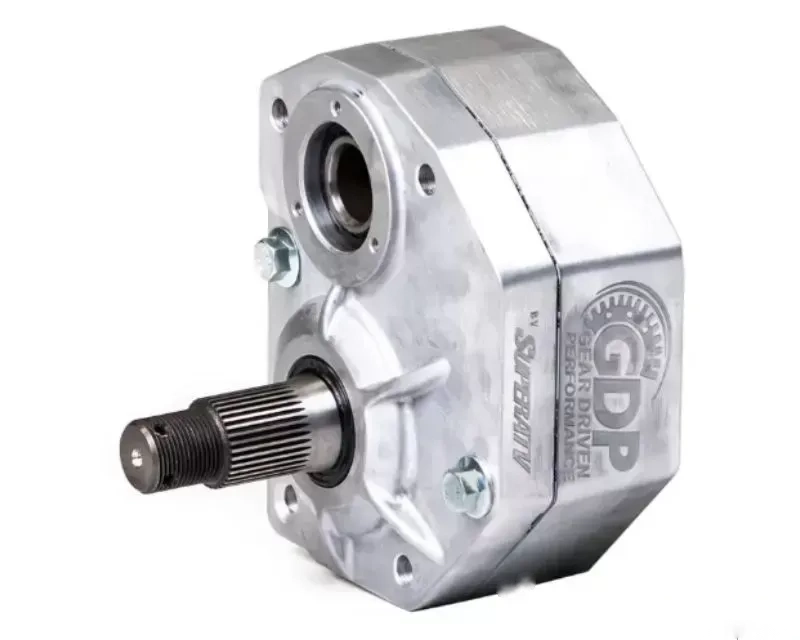

Stronger Housings by Design

Trust us when we say we've done our research. We've seen what makes housings fail-you know, those designs and materials that give off a "what not to do" vibe. And we do the opposite of that. Our housings are stronger, smarter, and more dependable by design. Whether you go with cast or our USA-made and CNC-machined 6061 billet aluminum, you're getting portal housings that offer unmatched strength and reliability.

• Our housings are reinforced in all the right places
• They're built with better oil flow and gearing forces in mind
• There are no gimmicks and no vents because vents do more harm than good-we know because we tested them

Advanced Gaskets and Seals(Cast or Billet)

• Advanced gaskets with excellent oil resistance and a lower deterioration rate than Kevlar gaskets
• A sealed input gear and double-lipped output seal
• 100% sealing coverage throughout so you can forget about oil leaks

Features:

• Available with billet or cast aluminum housing
• Cool, quiet, precision ground gears made from 9310 alloy billet steel
• Increases width by 4 in. per side (8 in. total)
• 1.5 in. diameter 4340 hardened steel drive shaft
• No leak bearings and seals
• Universal hub fits all major bolt patterns
• Comes complete with all hardware, backing plates, brakes lines and instructions

Wheel Requirements:

• 14" or larger wheel required
• 14" & 15" wheels cannot exceed 4-1/2" backspacing
• 16" and larger wheels cannot exceed 5" backspacing
• If using the factory 14" wheels, you must run 2" wheel spacers.
• Not compatible with dual beadlock wheels

Fitment:

• Polaris RZR RS1 2018+

Note:

• Wheels need to have a center hole of at least 3.25"" (82.55mm) or require a 1" wheel spacer.
