The Can-Am Maverick X3 is good at just about everything. People build them for mud, for racing, for dunes, and for trail riding-the possibilities are endless. Now you can build your Can-Am X3 your way with a 4" GDP Portal Gear Lift from SuperATV. GDP didn't make the first side-by-side portal kit on the market-just the first kit that anybody gave a damn about. Choose a 15% or 30% gear reduction, or add dual idler gears for over-the-top strength. GDP gives you options so you can break the norm and do whatever you want.

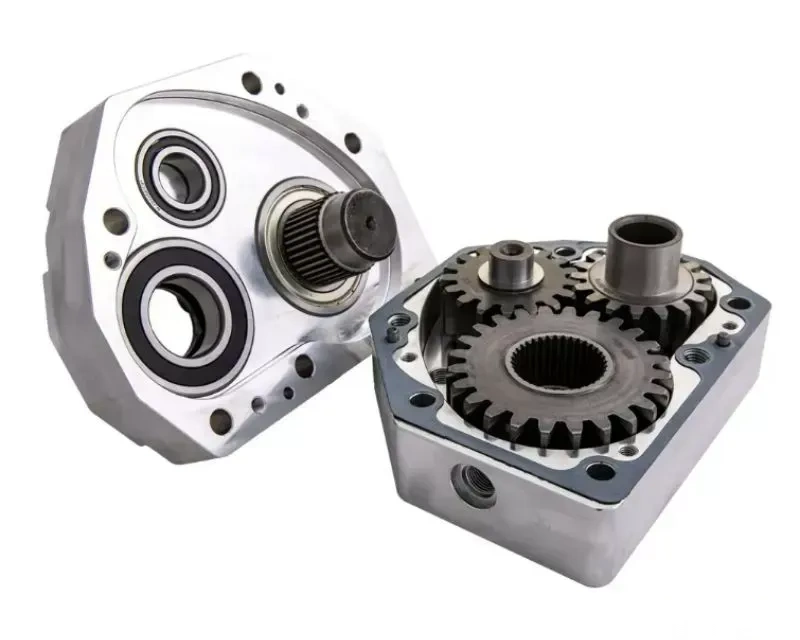

Perfection takes time. After years of research and development, we've made our dual idler gear portals unlike any other. By placing a second idler gear in the portal box, the load gets spread over twice as much surface area for more reliable torque transfer and the strongest gear set you can get. Two idler gears don't do a thing if they're not mated perfectly, though. Precision CNC grinding ensures ours do. Our gears are made from the industry's toughest 9310 steel alloy. Didn't think dual idlers mattered? With GDP's quality and experience, they finally do.

We don't like to put riders in a box. That's why GDP Portal Gear Lifts are designed for every rider and every terrain type. Whether you dominate the dunes, trails, or mud pits, GDP will make your experience better. A 15% gear reduction will give you faster rides that pack enough torque to get wild, and the 30% option is perfect for gearing down and going big with monster tires. And if you're the kind of rider who regularly pushes your machine to its breaking point, you'll want to grab some dual idlers. Our Maverick X3 portals have all the strength you need to push it to the limits.

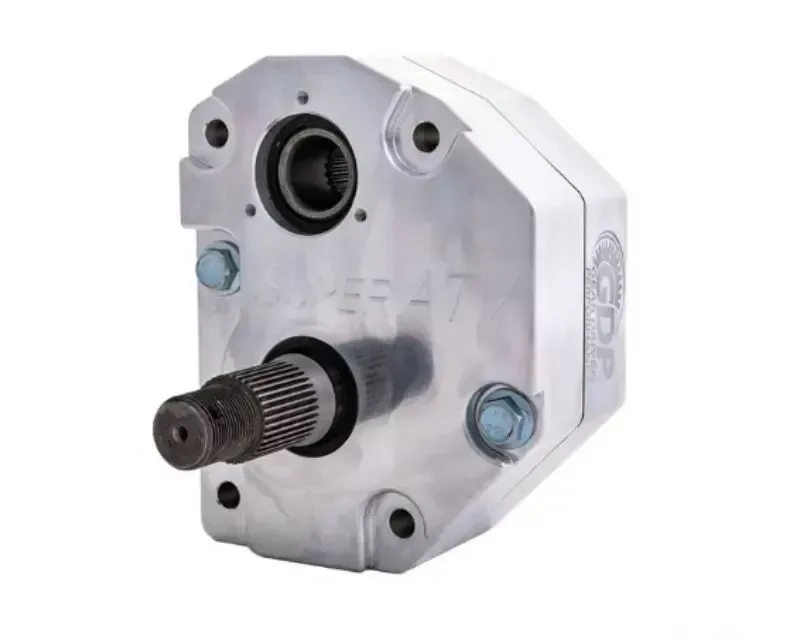

GDP Portals are the strongest on the planet, so if you're wondering whether they can handle the trail abuse you're used to, rest assured they can. They're available in cast and billet aluminum housings that are thicker and stronger than anything else on the market. Add our 5/16" backing plates made from an advanced steel alloy and you're left with absolutely unbeatable Can-Am portals.

• Our housings are reinforced for gear retention and optimized for oil flow
• Advanced steel alloy backing plates are stronger than chromoly
• Enhance with Portal Blood-gear oil formulated for GDP Portals
• There are no gimmicks and no vents because vents do more harm than good-we know because we tested them

Advanced Gaskets, Seals, and Bearings

Our portals use:

• Advanced gaskets and O-rings with excellent oil resistance and low deterioration rates
• A sealed input gear and double-lipped output seal
• 100% sealing coverage throughout so you can forget about oil leaks
• Double-angular contact output bearings to prevent premature wear
• Roller idler and drive bearings to maintain perfect gear meshing

Portal gear lifts are made for hardcore, no-holds-barred adventures. But that type of riding, combined with bigger tires and a lift, puts a ton of strain on your Can-Am X3's frame. Protect your chassis by adding a SuperATV Frame Stiffener so you can ride without worry.

Features:

• Available with billet or cast aluminum housing
• Dual idler gear configuration maximizes strength
• Cool, quiet, precision ground gears made from 9310 alloy billet steel
• Increases width by 4 in. per side (8 in. total)
• 1.5 in. diameter 4340 hardened steel drive shaft
• Housings use advanced gaskets or O-rings that don't let anything through
• Universal hub fits all major bolt patterns
• Gear reduction reduces stress on your drivetrain
• Dual idler gear configuration adds a 1" forward and rear offset
• Lighter than the competition

4" Portal Gear Lift Includes:

• (4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, gaskets, and thrust bearings
• (4) Universal hubs and precision-ground stainless steel slotted rotors with lugs
• (4) Specialized steel alloy backing plates
• (4) Steel caliper mounting plates
• (2) Steel steering arms
• Extended brake lines
• All required hardware, including recessed castle nut socket and heim installation tool
• Frame Stiffener & Winch Mount included

Wheel Requirements:

• 14" or larger wheel required
• 14" wheels cannot exceed 4-1/2" backspacing
• 15" wheels cannot exceed 5" backspacing
• Not compatible with dual beadlock wheels

Fitment:

64" Models

• Can-Am Maverick X3 900 2018+
• Can-Am Maverick X3 Turbo 2017+
• Can-Am Maverick X3 Turbo R 2017+
• Can-Am Maverick X3 X DS Turbo R 2017+
• Can-Am Maverick X3 X RC Turbo 2018+
• Can-Am Maverick X3 X MR Turbo 2018+

72" Models

• Can-Am Maverick X3 X RC Turbo R 2018+
• Can-Am Maverick X3 X RC Turbo RR 2020+
• Can-Am Maverick X3 X RS Turbo R 2017+
• Can-Am Maverick X3 X RS Turbo RR 2020+
• Can-Am Maverick X3 X MR Turbo R 2018+
• Can-Am Maverick X3 X MR Turbo RR 2020+

Notes:

• Wheels need to have a center hole of at least 3.25" (82.55mm) or require a 1" wheel spacer.
• This product can impact machine operation. Customer and/or user is responsible for ensuring that this product is compatible with their machine as currently configured, properly installed, and understands any impact this product has or might have on the machine's operation.
