GDP didn't make the first side-by-side portal kit to hit the market-just the first kit that anybody gave a damn about. And SuperATV's GDP 6" Portal Gear Lift for the Can-Am Defender is the perfect solution for riders who want taller machines, bigger tires, and unmatched power. Choose a 30%, 45%, or 60% gear reduction for more power to the ground. Boost your strength, power, and performance to the max by choosing dual idler gears. GDP isn't like the other guys. Our parts are refined through endless blood, sweat, and hard rides. GDP Portals will redefine your Defender.

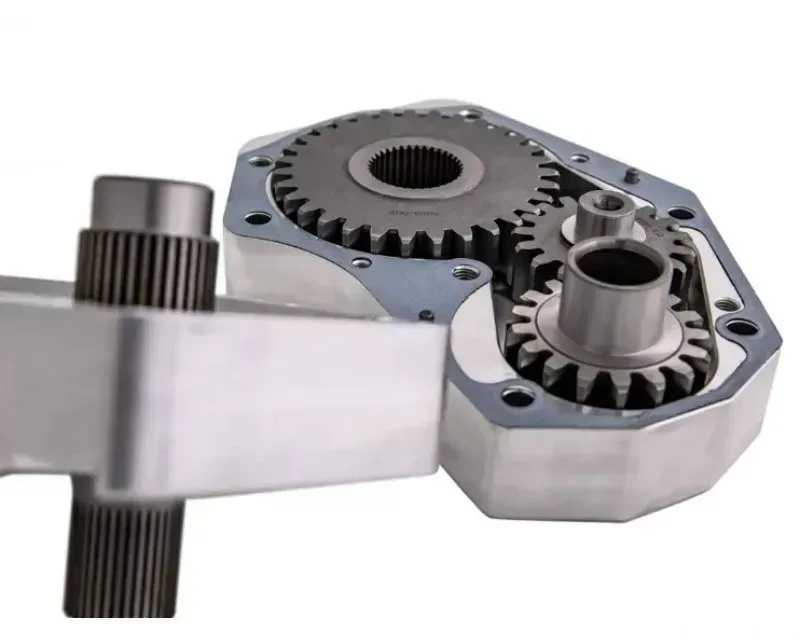

Perfection takes time. After years of research and development, we've made our dual idler gear portals unlike any other. By placing a second idler gear in the portal box, the load gets spread over twice as much surface area for more reliable torque transfer and the strongest gear set you can get. Two idler gears don't do a thing if they're not mated perfectly, though. Precision CNC grinding ensures ours do. Our gears are made from the industry's toughest 9310 steel alloy. Didn't think dual idlers mattered? With GDP's quality and experience, they finally do.

GDP Portals are designed to tackle any challenge and accomplish any task. From dunes to trails to mud, you'll never look back with a GDP Portal Gear Lift. Get a smaller 30% reduction for faster rides that still pack plenty of torque. Bigger tires for rocks or rough rides require a bigger gear reduction-like 45%. Build the mother of all mudders with a 60% gear reduction. Then take your strength over the top with dual idler gears. Portals give you your torque back so your monster build can still rip harder than the rest.

Our portals put the gear reduction in the hub, instead of in your transmission. This is a literal lifesaver for your axles, prop shaft, differential, and transmission. Your factory steering geometry remains untouched and those parts aren't put under any extra strain. They'll last longer, too.

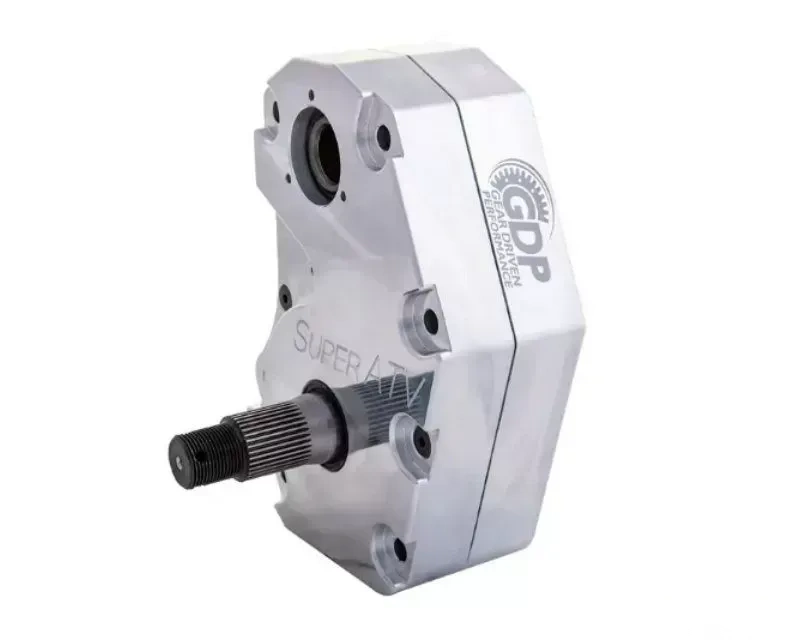

GDP doesn't settle for less and neither should you. Our portals are built to be the strongest you can get so you can ride with confidence. Our cast and billet aluminum housings are tough enough to take on hard rides. Combine that with 5/16" backing plates made from an advanced steel alloy, and our portals are unstoppable.

• Our housings are reinforced for gear retention and optimized for oil flow
• Advanced steel alloy backing plates are stronger than chromoly
• Enhance with Portal Blood-gear oil formulated for GDP Portals
• There are no gimmicks and no vents because vents do more harm than good-we know because we tested them

Advanced Gaskets, Seals, and Bearings

Our portals use:

• Advanced gaskets and O-rings with excellent oil resistance and low deterioration rates
• A sealed input gear and double-lipped output seal
• 100% sealing coverage throughout so you can forget about oil leaks
• Double-angular contact output bearings to prevent premature wear
• Roller idler and drive bearings to maintain perfect gear meshing

Features:

• Dual idler gear configuration maximizes strength
• Available with billet or cast aluminum housing
• Cool, quiet, precision ground gears made from 9310 alloy billet steel
• Increases width by 4 in. per side (8 in. total)
• 1.5 in. diameter 4340 hardened steel drive shaft
• Housings use advanced gaskets or O-rings that don't let anything through
• Universal hub fits all major bolt patterns
• Gear reduction reduces stress on your drivetrain
• Dual idler gear configuration adds a 1.5" offset
• Lighter than the competition

6" Portal Gear Lift Includes:

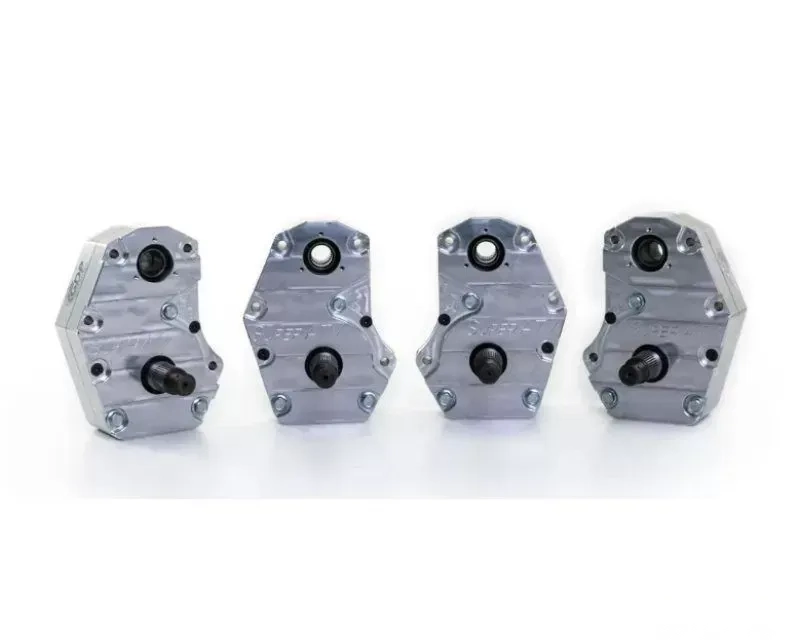

• (4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, gaskets or O-rings, and thrust bearings
• (4) Universal hubs and precision-ground stainless steel slotted rotors with lugs
• (4) Specialized steel alloy backing plates
• (4) Steel caliper mounting plates
• (2) Steel steering arms
• Extended brake lines
• All required hardware, including recessed castle nut socket
• Frame stiffener included

Wheel Requirements:

• 18" or larger wheel required
• 18" wheels cannot exceed 4-1/2" backspacing
• 20" and larger wheels cannot exceed 5" backspacing

Fitment:

• Can-Am Defender HD 5 2017-2021
• Can-Am Defender HD 5 DPS 2017-2021
• Can-Am Defender HD 8 2016-2021
• Can-Am Defender HD 8 DPS 2016-2021
• Can-Am Defender HD 8 XT 2016-2021
• Can-Am Defender HD 10 2016-2021
• Can-Am Defender HD 10 DPS 2016-2021
• Can-Am Defender HD 10 XT 2016-2021
• Can-Am Defender HD 10 XT Cab 2016-2021
• Can-Am Defender HD 10 XTP 2018-2021
• Can-Am Defender HD 10 Mossy Oak 2018-2021
• Can-Am Defender HD 10 XMR 2018-2021
• Can-Am Defender HD 10 Limited 2020-2021
• Can-Am Defender HD 10 PRO 2020-2021
• Can-Am Defender MAX HD 8 2017-2021
• Can-Am Defender MAX HD 8 DPS 2017-2021
• Can-Am Defender MAX HD 8 XT 2017-2021
• Can-Am Defender MAX HD 10 DPS 2017-2021
• Can-Am Defender MAX HD 10 XT 2017-2021
• Can-Am Defender MAX HD 10 XT Cab 2017-2021
• Can-Am Defender MAX HD 10 XMR 2019-2021
• Can-Am Defender MAX HD 10 Lone Star Edition 2018-2021
• Can-Am Defender MAX HD 10 Limited 2020-2021

Notes:

• Wheels need to have a center hole of at least 3.25" (82.55mm) or require a 1" wheel spacer.
• Big Lift Kit or 2" Forward Offset A-Arms strongly recommended(sold separately).
• This product can impact machine operation. Customer and/or user is responsible for ensuring that this product is compatible with their machine as currently configured, properly installed, and understands any impact this product has or might have on the machine's operation.
