Your RZR Pro XP isn't built for just one kind of rider-you can take it through mountains or mud or dunes. That's why SuperATV's GDP 6" Portal Gear Lift lets you choose between 30%, 45%, or 60% gear reductions. Gear down and get the torque you need to match your ride style and your tire size. Then go big and opt for dual idler gears if you want ultimate strength. GDP means you get to ride your way-and have a lot more fun while you do it.

Perfection takes time. After years of research and development, we've made our dual idler gear portals unlike any other. By placing a second idler gear in the portal box, the load gets spread over twice as much surface area for more reliable torque transfer and the strongest gear set you can get. Two idler gears don't do a thing if they're not mated perfectly, though. Precision CNC grinding ensures ours do. Our gears are made from the industry's toughest 9310 steel alloy. Didn't think dual idlers mattered? With GDP's quality and experience, they finally do.

You can't go to a mud park in America without coming across a set of portals. That's for good reason-portals and mud go together like peanut butter and jelly. The deeper you go, the more you'll notice the torque from your gear reduction. And that 6" lift will keep you from getting swamped.

With the gear reduction all the way at the hub, you get reduced stress on your axles, differential, prop shaft, and transmission. That means your components will last longer than stock even though you're riding harder.

We've spent years tweaking and honing our portal housings to make them as strong as possible. And we combine them with advanced steel alloy backing plates. With tens of thousands of housings in the wild Proving their strength every weekend, you know you're getting the best. So go with cast or super-sleek, USA-made billet aluminum.

• Our housings are reinforced for gear retention and optimized for oil flow
• Advanced steel alloy backing plates are stronger than chromoly
• Enhance with Portal Blood-gear oil formulated for GDP Portals
• There are no gimmicks and no vents because vents do more harm than good-we know because we tested them

Advanced Gaskets, Seals, and Bearings

Our portals use:

• Advanced gaskets and O-rings with excellent oil resistance and low deterioration rates
• A sealed input gear and double-lipped output seal
• 100% sealing coverage throughout so you can forget about oil leaks
• Double-angular contact output bearings to prevent premature wear
• Roller idler and drive bearings to maintain perfect gear meshing

Features:

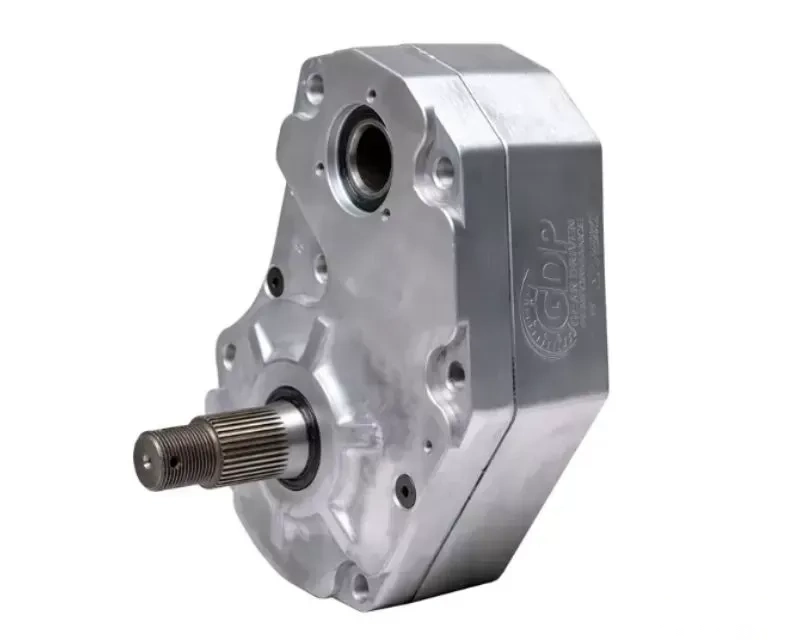

• Available with billet or cast aluminum housing
• Dual idler gear configuration maximizes strength
• Cool, quiet, precision-ground gears made from 9310 alloy billet steel
• Increases width by 4 in. per side (8 in. total)
• 1.5 in. diameter 4340 hardened steel drive shaft
• Housings use advanced gaskets that don't let anything through
• Universal hub fits all major bolt patterns
• Gear reduction reduces stress on your drivetrain
• Dual idler gear configuration adds a 1" offset
• Lighter than the competition

6" Portal Gear Lift Includes

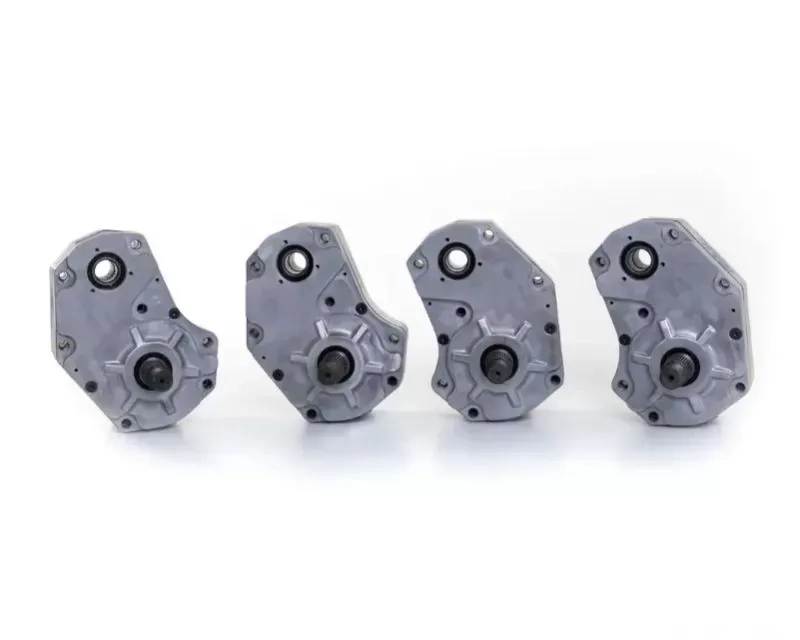

• (4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, gaskets, and thrust bearings
• (4) Universal hubs and precision-ground stainless steel slotted rotors with lugs
• (4) Specialized steel alloy backing plates
• (4) Steel caliper mounting plates
• (4) Caliper adapter plates
• (2) Steel steering arms
• (2) Aluminum hub adapters
• Extended brake lines
• Steering stop brackets (single idler configuration only)
• All required hardware, including recessed castle nut socket
• Frame stiffener included

Wheel Requirements:

• 18" or larger wheel required
• 18" wheels cannot exceed 4-1/2" backspacing
• 20" and larger wheels cannot exceed 5" backspacing

Fitment:

• Polaris RZR PRO XP 2020+
• Polaris RZR PRO XP 4 2020+

Notes:

• Without 8 Inch Lift Kit
• Wheels need to have a center hole of at least 3.25" (82.55mm) or require a 1" wheel spacer.
• This product can impact machine operation. Customer and/or user is responsible for ensuring that this product is compatible with their machine as currently configured, properly installed, and understands any impact this product has or might have on the machine's operation.
