The Polaris General XP 1000 is a machine designed for all kinds of riding. That's why we made the GDP 6" Portal Gear Lift with multiple gear reduction options. Choose between a 30% and 45% gear reduction to match your style. With options for cast or billet aluminum housings, these portals are geared for all.

If you're not sure if they're right for you, just ask any of the thousands of riders already rocking GDP portals that decided it was right for them. More riders roll on GDP portals than any other portal system. They're the most used and most real-world proven portals you can get.

You can't go to a mud park in America without coming across a set of portals. That's for good reason-portals and mud go together like peanut butter and jelly. The deeper you go, the more you'll notice the torque from your gear reduction. And that 6" lift will keep you from getting swamped.

With the gear reduction all the way at the hub, you get reduced stress on your axles, differential, prop shaft, and transmission. That means your components will last longer than stock even though you're riding harder.

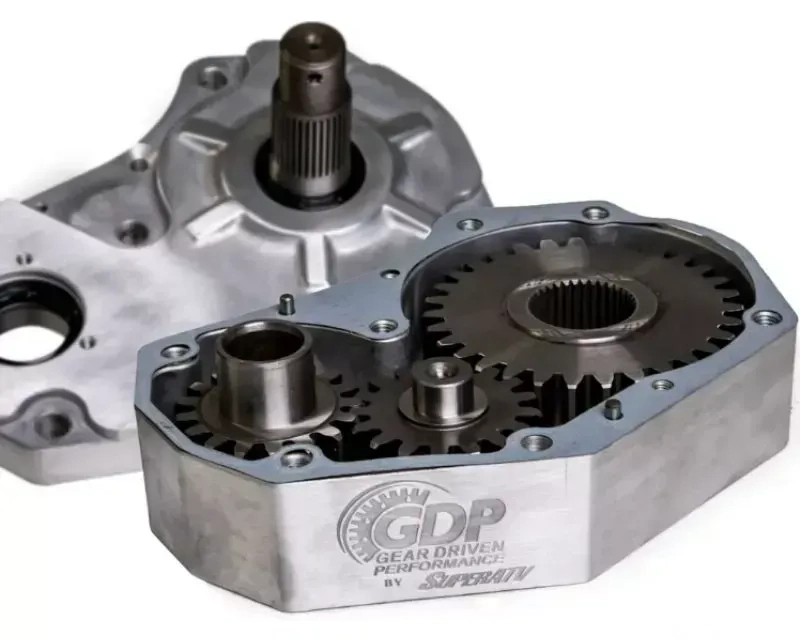

Gears are the most vital part of a portal gear lift. We made ours the most premium, top-of-the-line gears you can get. They're made from precision-ground 9310 alloy steel that meshes perfectly and gives you smooth, quiet portal boxes. That means you can ride hard-our quality is up to the task.

You might think strength is a matter of brute force, but it's all about finesse. We've spent years tweaking and honing our portal housings to make them as strong as possible. With tens of thousands of housings in the wild proving their strength every weekend, you know you're getting the best. So go with cast or super-sleek, USA-made billet aluminum-either way, you're getting the best.

• Our housings are reinforced in all the right places
• They're built with better oil flow and gearing forces in mind
• There are no gimmicks and no vents because vents do more harm than good-we know because we tested them

We use an advanced steel alloy for our backing plates not because we wanted to make them the strongest on the planet, but because it's what you need. They're stronger than chromoly and, at 5/16 inches thick, they'll stand up to anything and everything the trail throws at you.

Advanced Gaskets and Seals

Whether you go with cast or billet, both housings use:

• Advanced gaskets with excellent oil resistance and a lower deterioration rate than Kevlar gaskets
• A sealed input gear and double-lipped output seal
• 100% sealing coverage throughout so you can forget about oil leaks

We didn't cut corners with our bearings either. The output bearing is a double-angular contact bearing that's built to take huge loads from bumps, rocks, logs, and holes without wearing prematurely. We use roller bearings for the idler gears that are designed to withstand the large forces caused by the gear reduction itself. We made them as stronger as possible because we know a bad bearing means a busted box.

Get the braking power you need, when you need it, with our precision-ground, stainless steel slotted rotors that stay cool. Plus our universal hubs make your life easier with 4/156, 4/137, 4/115, and 4/110 bolt patterns and lugs. You'll be able to run almost any side-by-side tire under the sun with these hubs. We also invented the tapered output shaft that our hubs attach to. It gives you a more secure lock that won't wobble or wear over time.

Features:

• Available with billet or cast aluminum housing
• Cool, quiet, precision-ground gears made from 9310 alloy billet steel
• Increases width by 4 in. per side (8 in. total)
• 1.5 in. diameter 4340 hardened steel driveshaft
• Housings use advanced gaskets that don't let anything through
• Universal hub fits all major bolt patterns
• Gear reduction reduces stress on your drivetrain
• Weighs 224 lb. total, which is 25+ lb. lighter than the competition

6" Portal Gear Lift Includes:

• (4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, gaskets, and thrust bearings.
• (4) Universal hubs and precision-ground stainless steel slotted rotors with lugs
• (4) Specialized steel alloy backing plates
• (4) Steel caliper mounting plates
• (4) Caliper adapter plates
• (2) Steel steering arms
• Extended brake lines
• All required hardware, including recessed castle nut socket

Wheel Requirements:

• 18" or larger wheel required
• 18" wheels cannot exceed 4-1/2" backspacing
• 20" and larger wheels cannot exceed 5" backspacing

Fitment:

• Polaris General XP 1000 2020+

Notes:

• Wheels need to have a center hole of at least 3.25" (82.55mm) or require a 1" wheel spacer.
• This product can impact machine operation. Customer and/or user is responsible for ensuring that this product is compatible with their machine as currently configured, properly installed, and understands any impact this product has or might have on the machine's operation.
